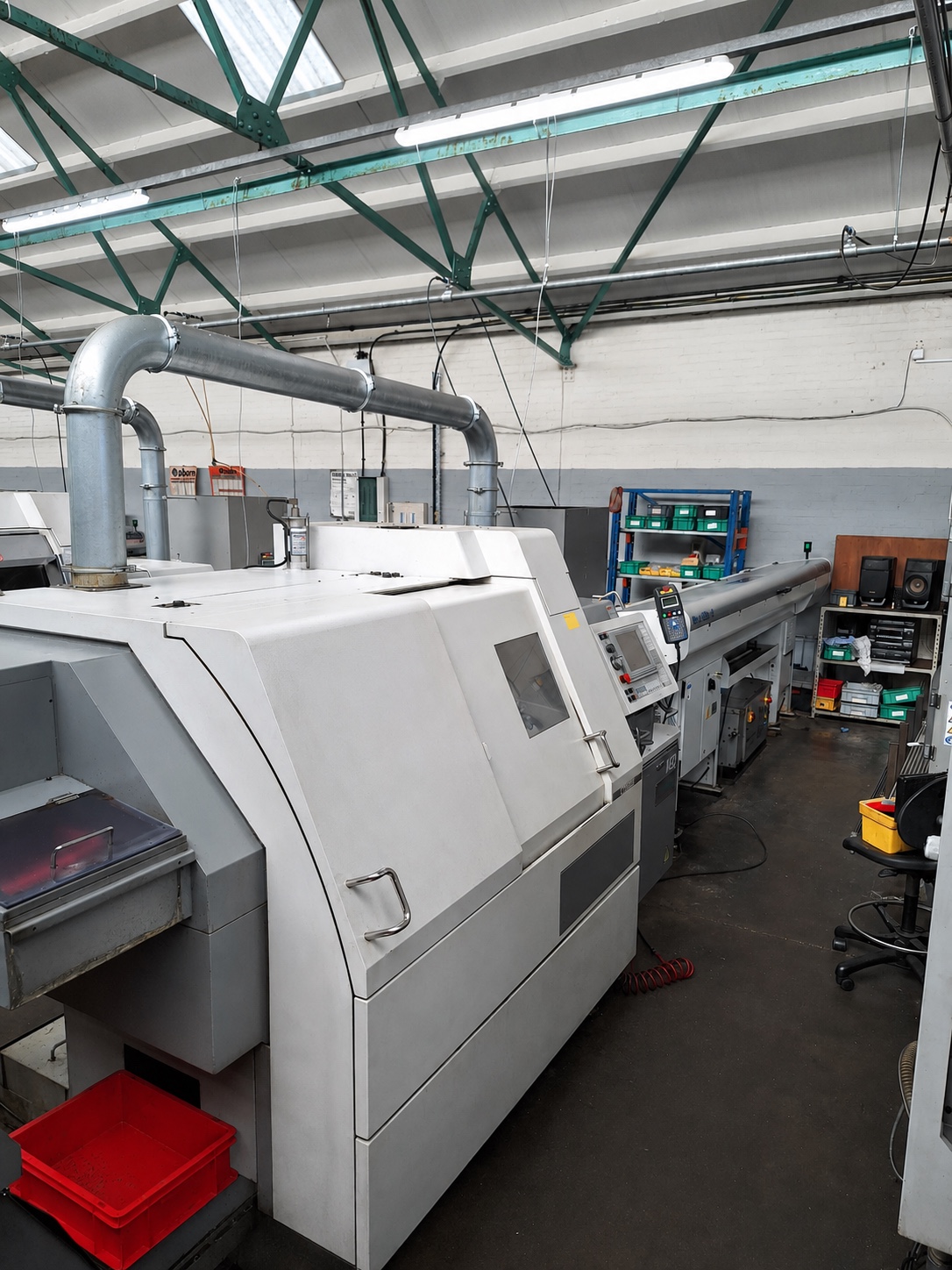

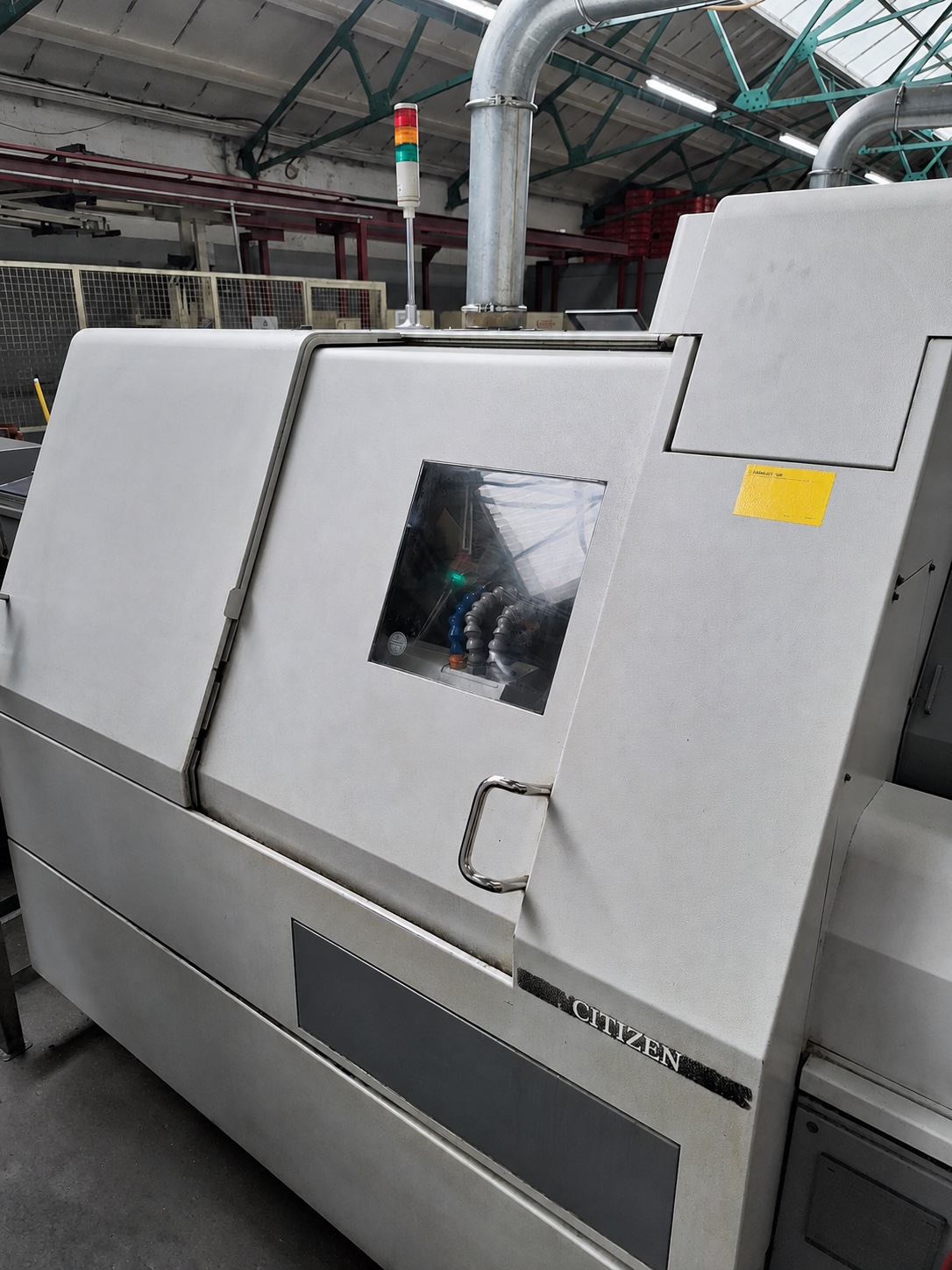

2008 CITIZEN Cincom M32-III CNC Sliding Head Lathe

<p>2008 CITIZEN Cincom M32-III twin-

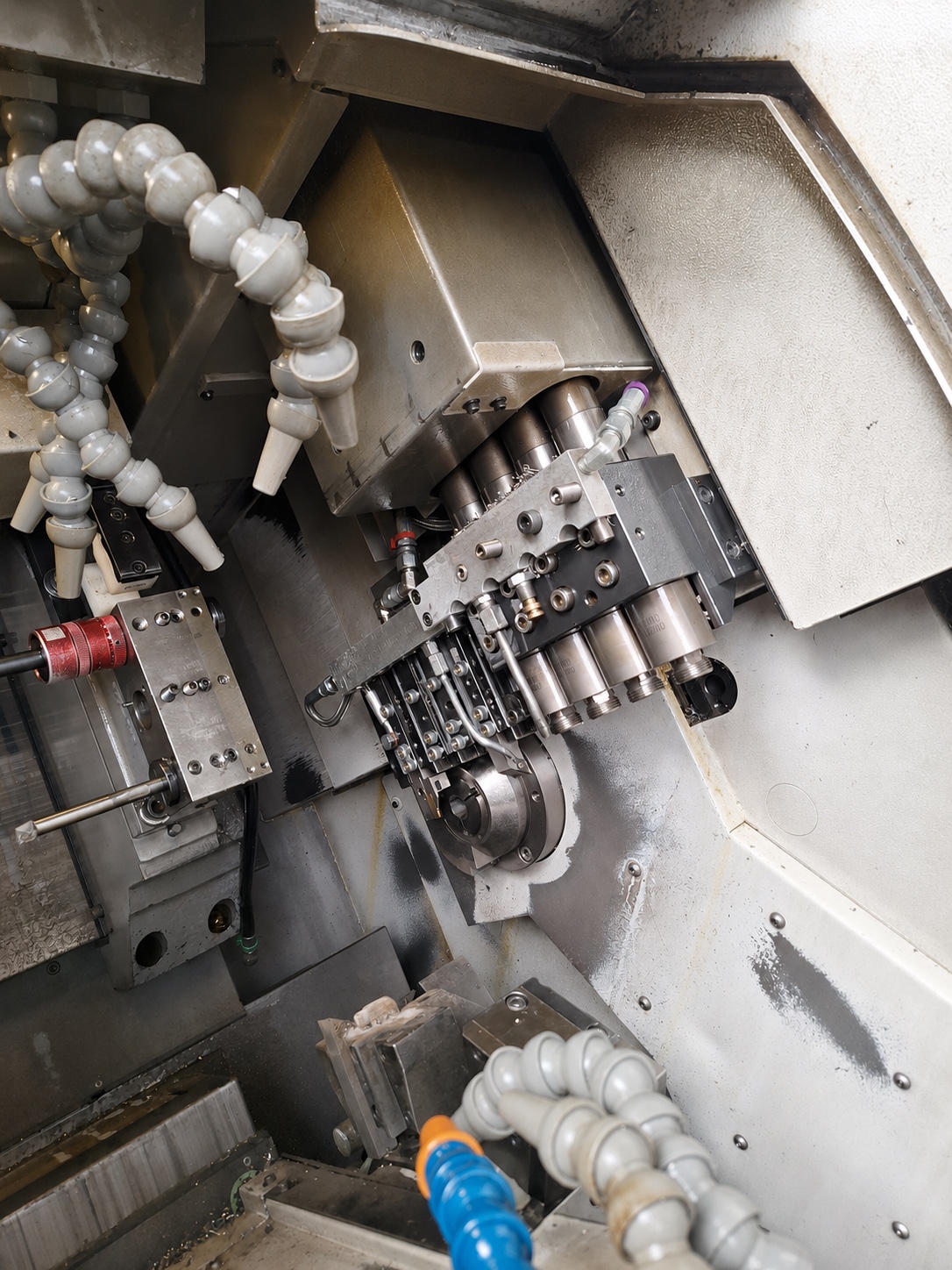

spindle CNC sliding-head lathe equipped with Mitsubishi M600-series control, IEMCA BOSS 332R-E 3-metre magazine bar feeder, CoolBlaster CB510 high-pressure coolant, Absolent A•mist extraction, LNS swarf conveyor and an extensive selection of tooling.</p> <p>Designed for complex, high-precision bar work, the M32-III combines a Y-axis gang tool post, driven turret and back-working

spindle . Its configuration supports simultaneous front and rear machining, with up to three tools engaged.</p> <h3>

Key specifications </h3> <ul> <li>Maximum machining diameter: Ø32 mm</li> <li>Maximum machining length: 320 mm per chucking</li> <li>Main-

spindle through-hole: Ø36 mm</li> <li>Main

spindle : up to 8,000 rpm and 7.5 kW</li> <li>Sub-

spindle : up to 7,000 rpm and 3.7 kW</li> <li>C-axis control on both

spindle s</li> <li>Seven programmable linear axes: X1/Y1/Z1, X2/Z2 and X3/Z3</li> <li>Gang tooling: five turning positions and four driven-tool positions</li> <li>Driven-tool speed: up to 5,000 rpm</li> <li>Turret: 10 stations with 20 indexing positions and driven-tool capability</li> <li>Rear-working tool block with three axial positions</li> <li>Turning-tool size: 16 × 16 × 130 mm</li> <li>Tool-sleeve diameter: Ø25.

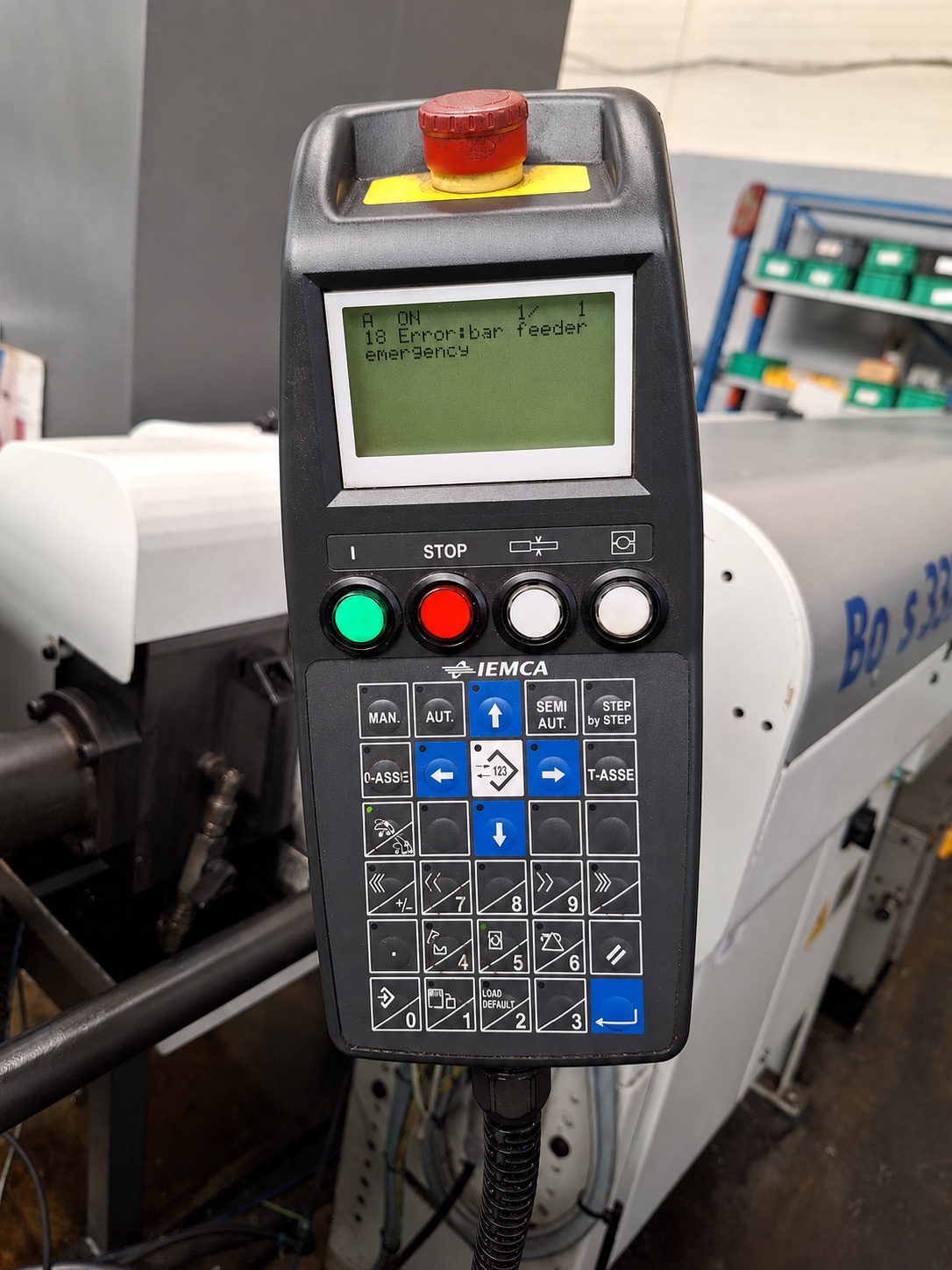

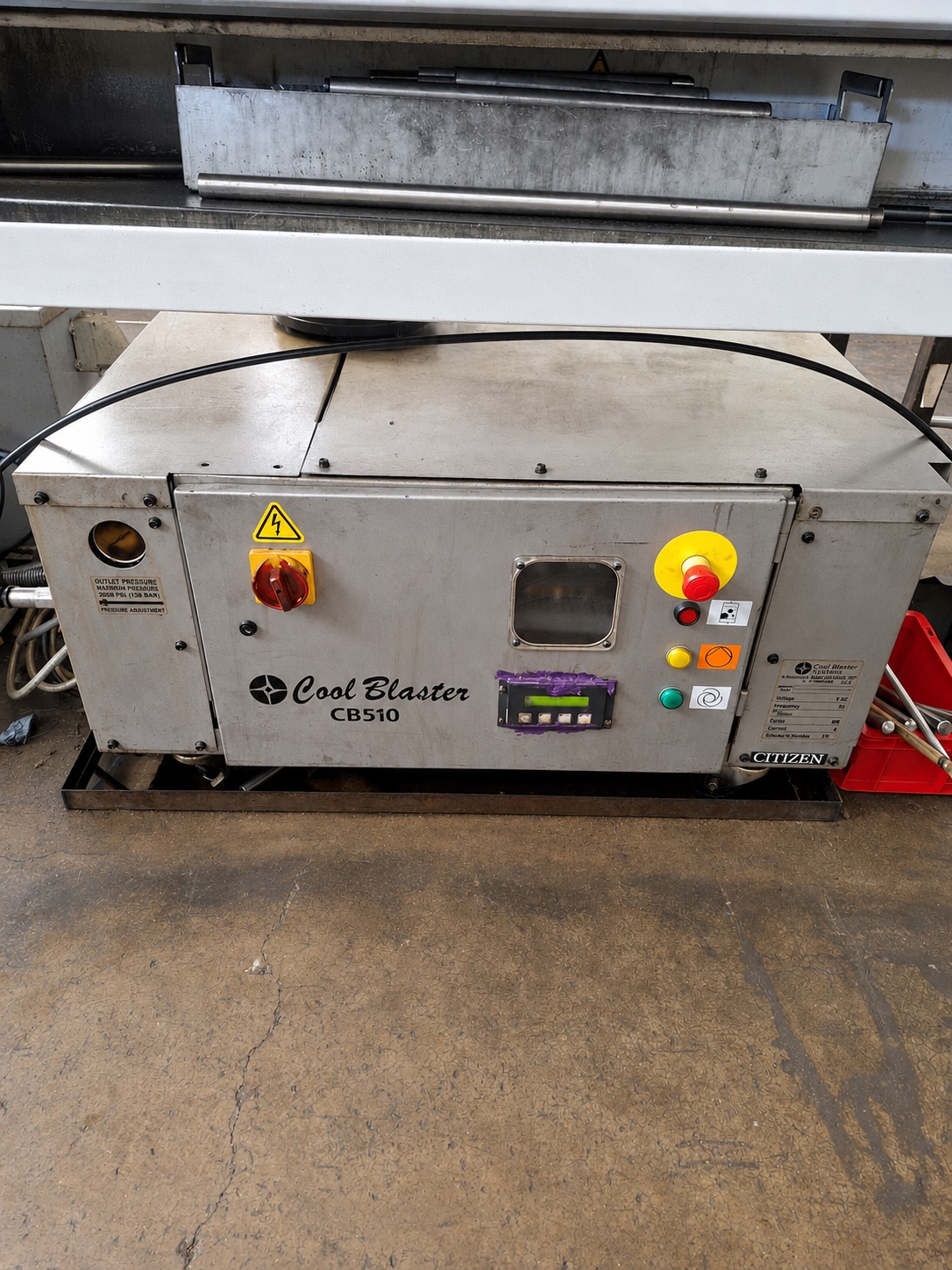

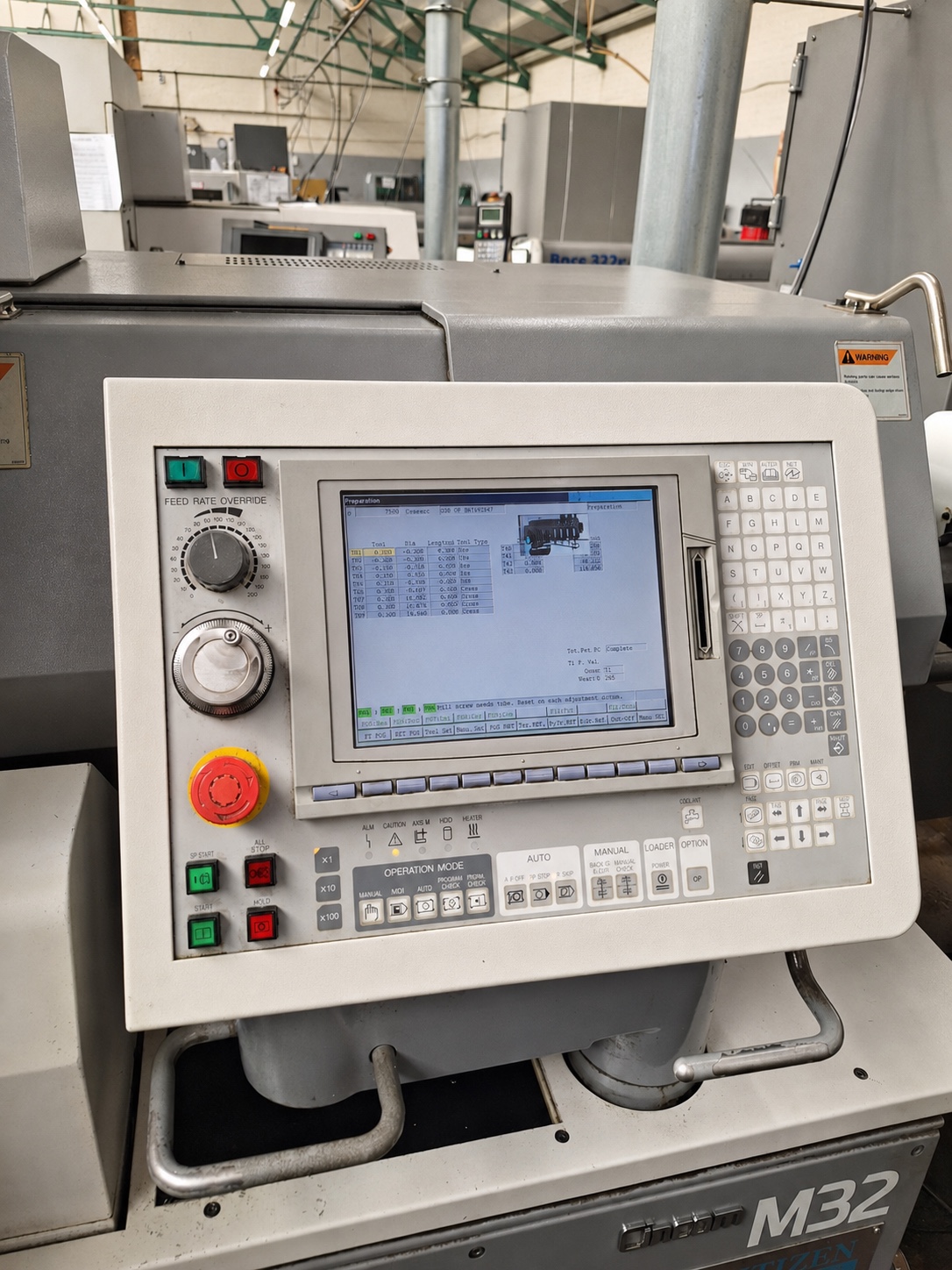

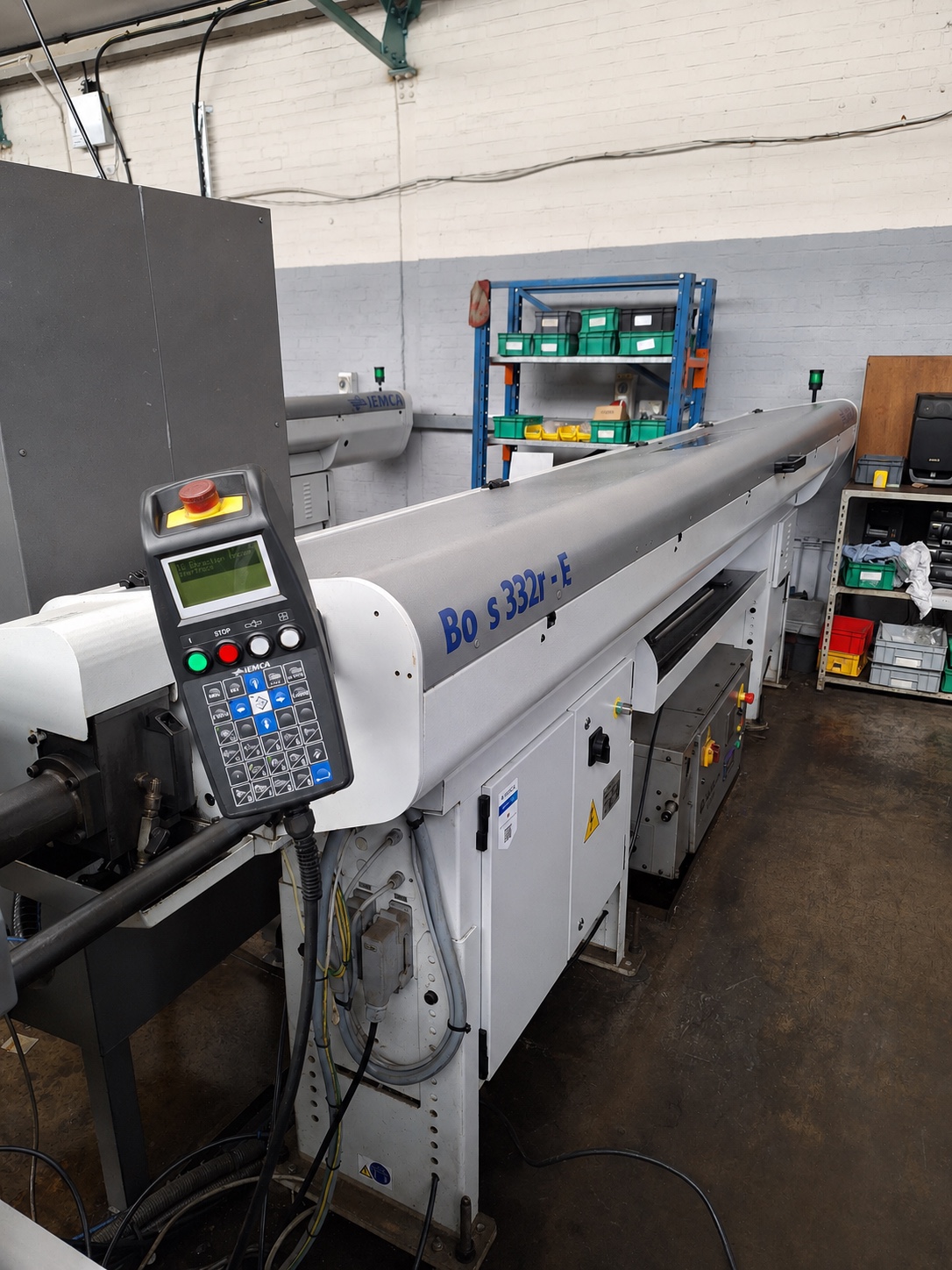

4 mm</li> <li>Rapid traverse: 20 m/min</li> <li>Approximate machine-only dimensions: 2,770 × 1,300 × 1,790 mm</li> <li>Approximate machine-only weight: 2,900 kg</li> </ul> <h3>Equipment included</h3> <ul> <li>Mitsubishi M600-series CNC control with CITIZEN Cincom interface</li> <li>IEMCA BOSS 332R-E 3 m automatic magazine bar feeder</li> <li>CoolBlaster CB510 five-line high-pressure coolant system, rated at 2,000 psi / approximately 140 bar</li> <li>Absolent A•mist oil-mist extraction and filtration system</li> <li>LNS Turbo swarf conveyor and swarf bin</li> <li>Gantry unloader and parts basket</li> <li>Selection of driven, static and angle tool holders</li> <li>Selection of collets</li> <li>Tooling cabinets</li> <li>Machine manuals</li> <li>Previously serviced by Citizen Machinery</li> </ul> <p>The IEMCA BOSS 332 family accommodates round bar up to Ø32 mm, subject to the guide channel, pusher and collet currently fitted.

</p> <p>Please contact us for further details, inspection arrangements, video or a shipping quotation. </p>
