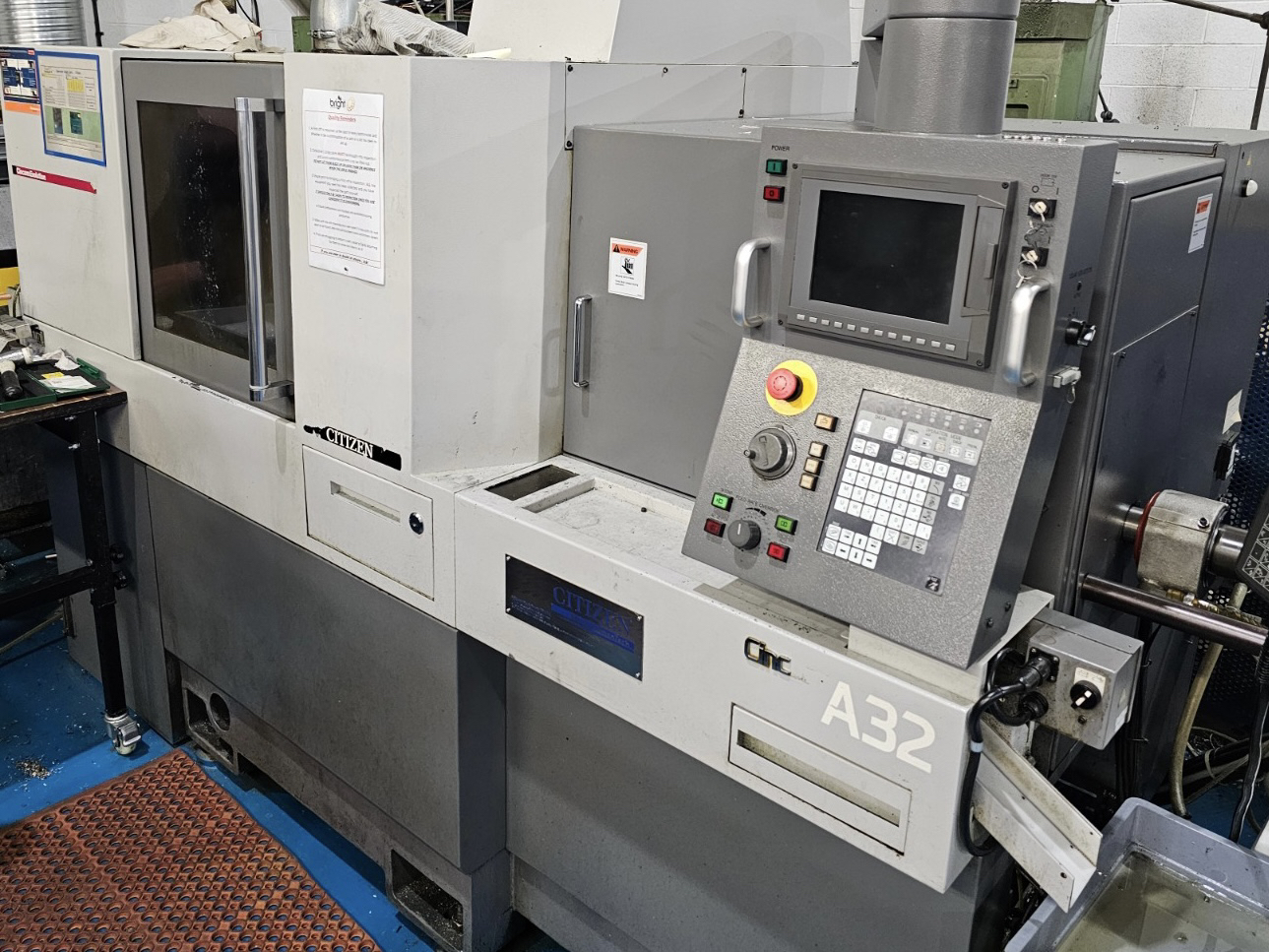

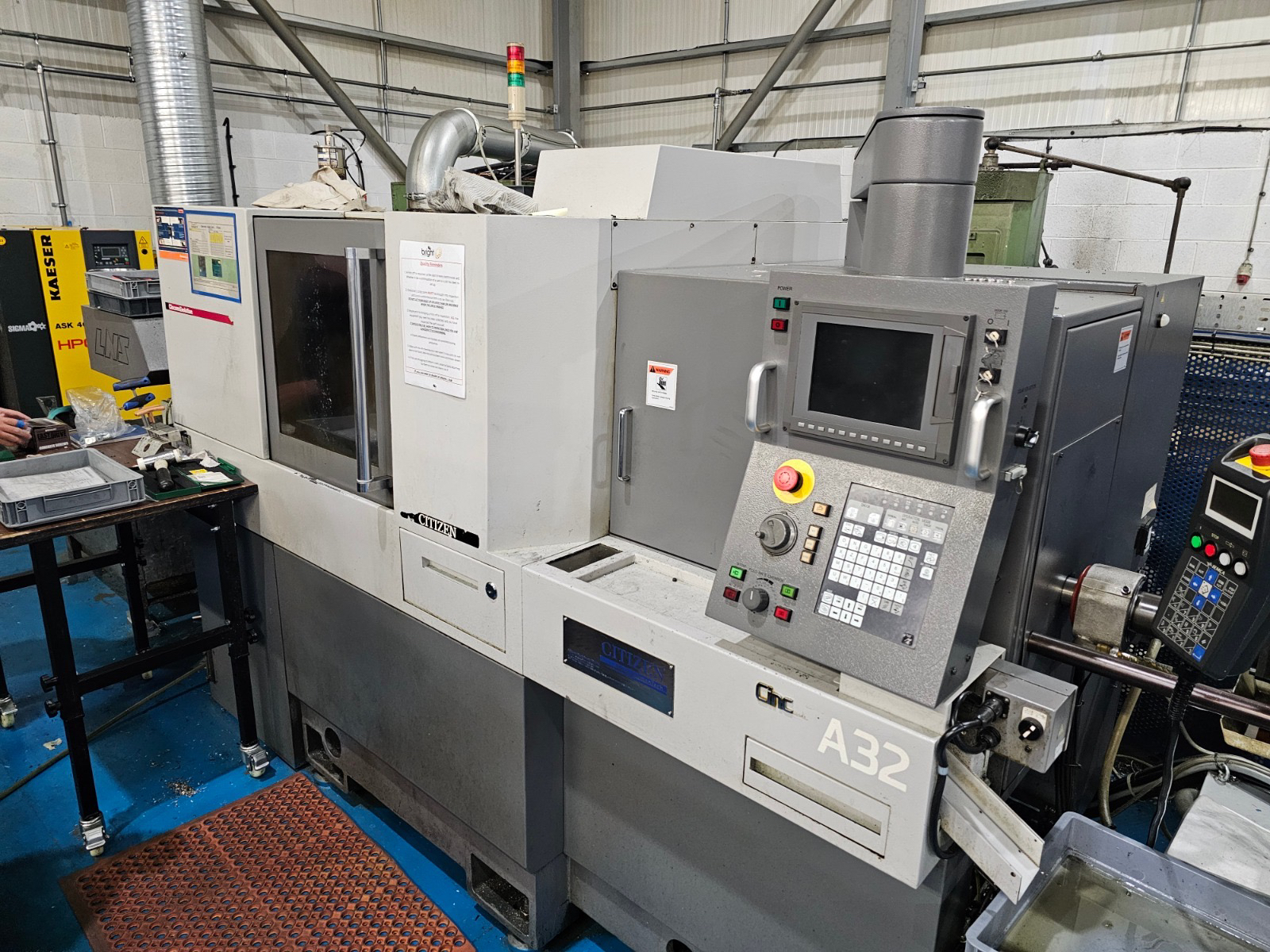

2011 CITIZEN Cincom A32-VII CNC Sliding Head Lathe

Manufacturer: Citizen Model: Cincom A32-VII Year of Manufacture: 2011 Machine Type: Sliding Head CNC Lathe Control: Mitsubishi CNC M700 Capacity • Maximum Bar Capacity: 32 mm • Maximum Turning Diameter: 32 mm • Maximum Turning Length: Approx. 320 mm (with guide bush)

Spindle Configuration • Main

Spindle : • Maximum speed: ~8,000 rpm • Motor power: approx. 5.5 kW • C-axis with full contouring capability • Sub

Spindle : • Maximum speed: ~6,000 rpm • Full C-axis interpolation • Independent

spindle control for balanced cycle times Axis Configuration • Total Controlled Axes: 7 • Linear Axes: X1, Z1 (main

spindle ), X2, Z2 (sub

spindle ), Y-axis • Rotary Axes: C1 (main

spindle ), C2 (sub

spindle ) This configuration enables full front- and back-working in a single setup, minimising part handling and maximising concentricity.

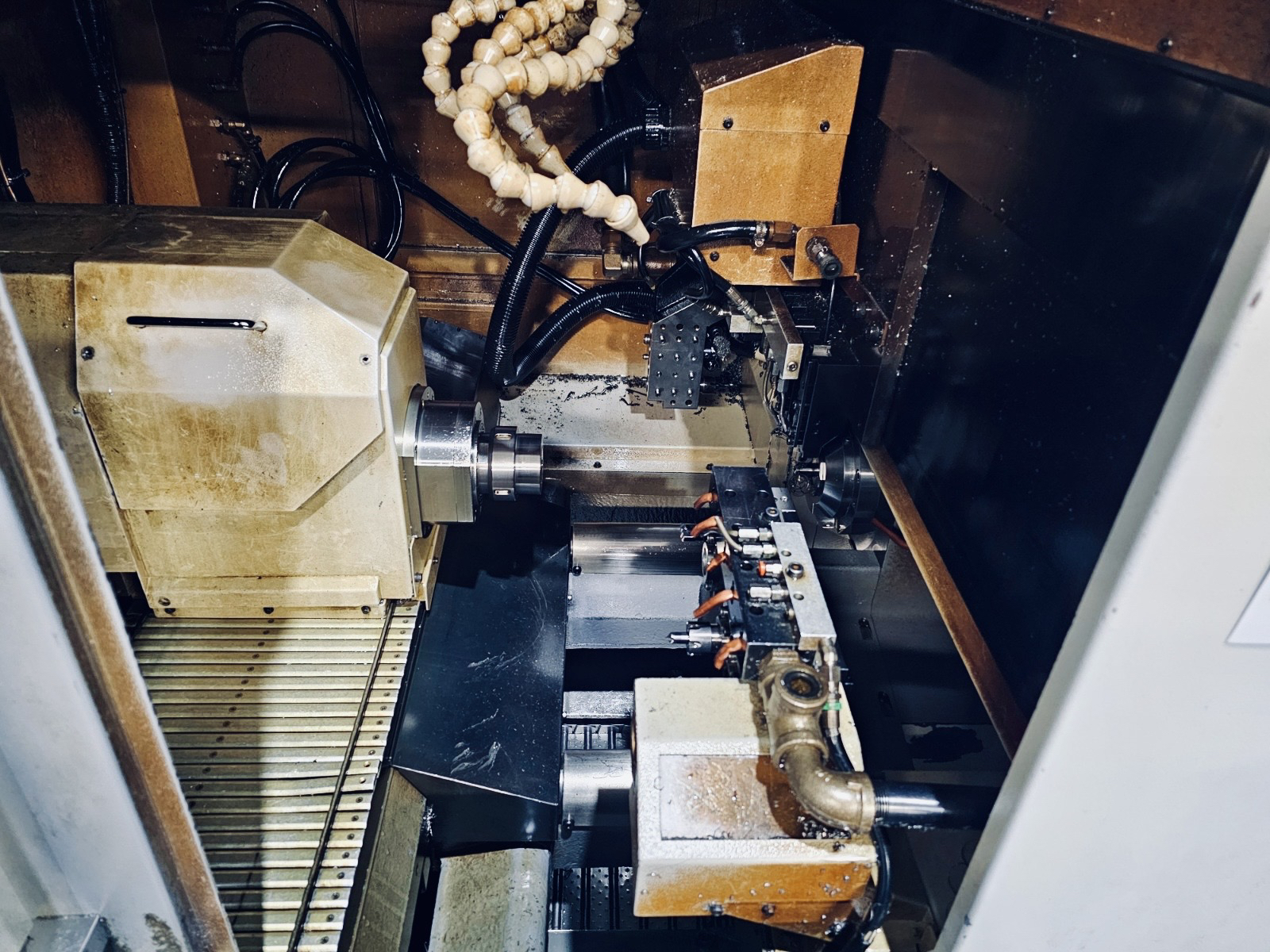

Tooling & Machining Capability • Gang Tooling on Main

Spindle • Live Tooling Capability • Y-Axis Machining for off-centre milling and cross-drilling • Back-Working Tooling on sub

spindle • Rigid Tapping and full milling interpolation • Optimised for complex, multi-operation parts in one cycle JBS Automatic Compensating Guide Bush System

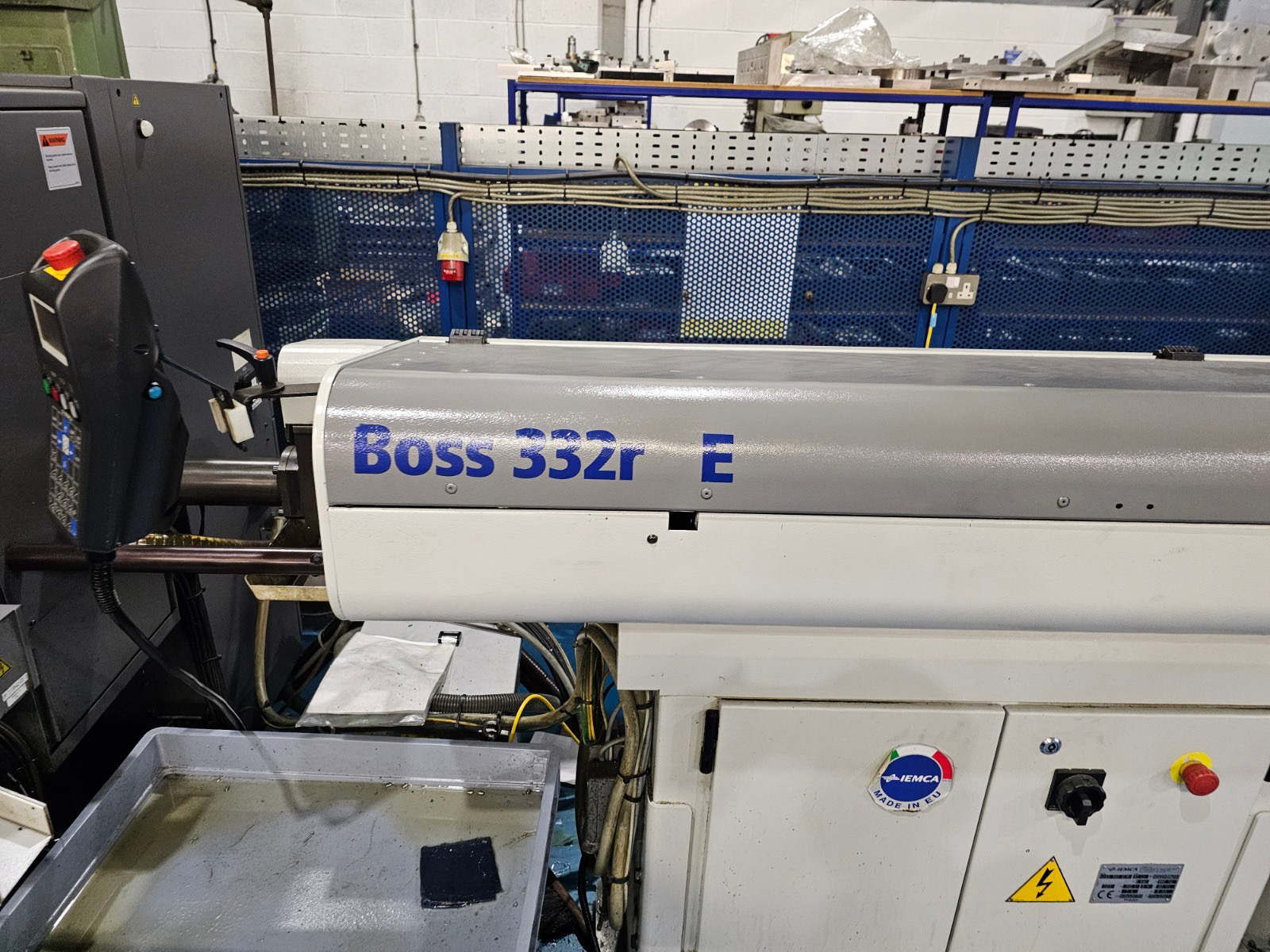

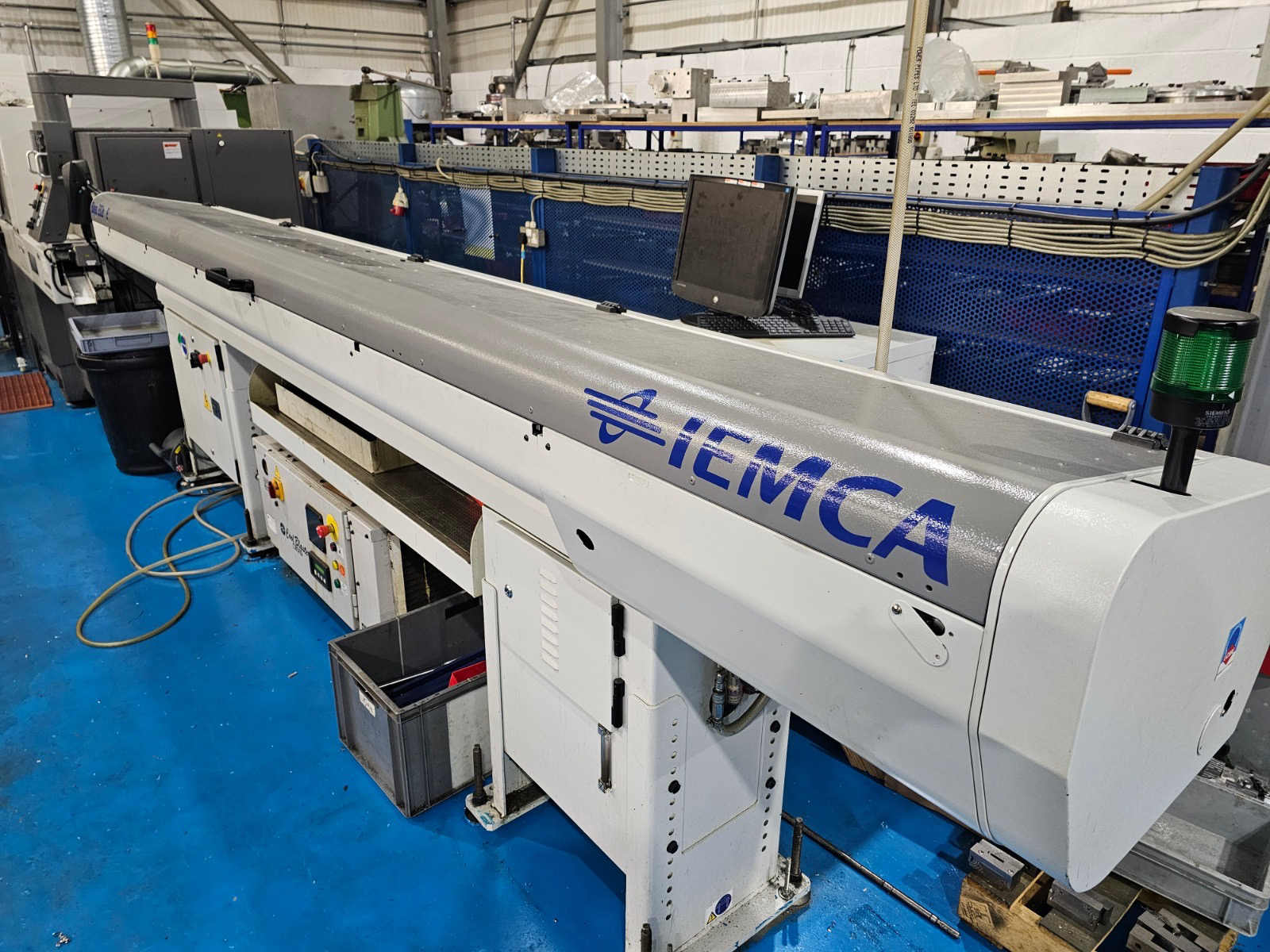

Automation & Ancillary Equipment Bar Feeding Iemca Boss 332 Magazine Bar Feeder • Suitable for bars up to 32 mm • Magazine-style loading for rapid bar changeover • Supports extended unattended operation Coolant System Coolblaster High-Pressure Coolant • Through-tool coolant delivery • Excellent chip evacuation on deep drilling and grooving • Improves tool life and surface finish Swarf Management LNS MH500 Swarf Conveyor • Automatic swarf removal • Reduces operator intervention • Supports continuous production runs Mist Extraction Absolent Oil Mist Extraction Unit • Efficient removal of airborne coolant mist • Improves operator safety and workshop cleanliness

Condition & Inspection • Machine is under power • Available to view running and cutting • Supplied as a turnkey production package

Applications Ideal for the production of: • Precision turned components • Complex parts requiring milling and cross-working • Automotive, medical, aerospace, hydraulic, and general subcontract components

Summary This 2011 Citizen A32-VII offers a well-balanced combination of precision, flexibility, and automation. With a strong

technical specification and high-quality peripheral equipment already installed, it represents an excellent opportunity to add immediate sliding head capacity with minimal additional investment.

� � Contact us for pricing, full option list, or to arrange a live demonstration.
