2012 Datron M8 Milling Machine

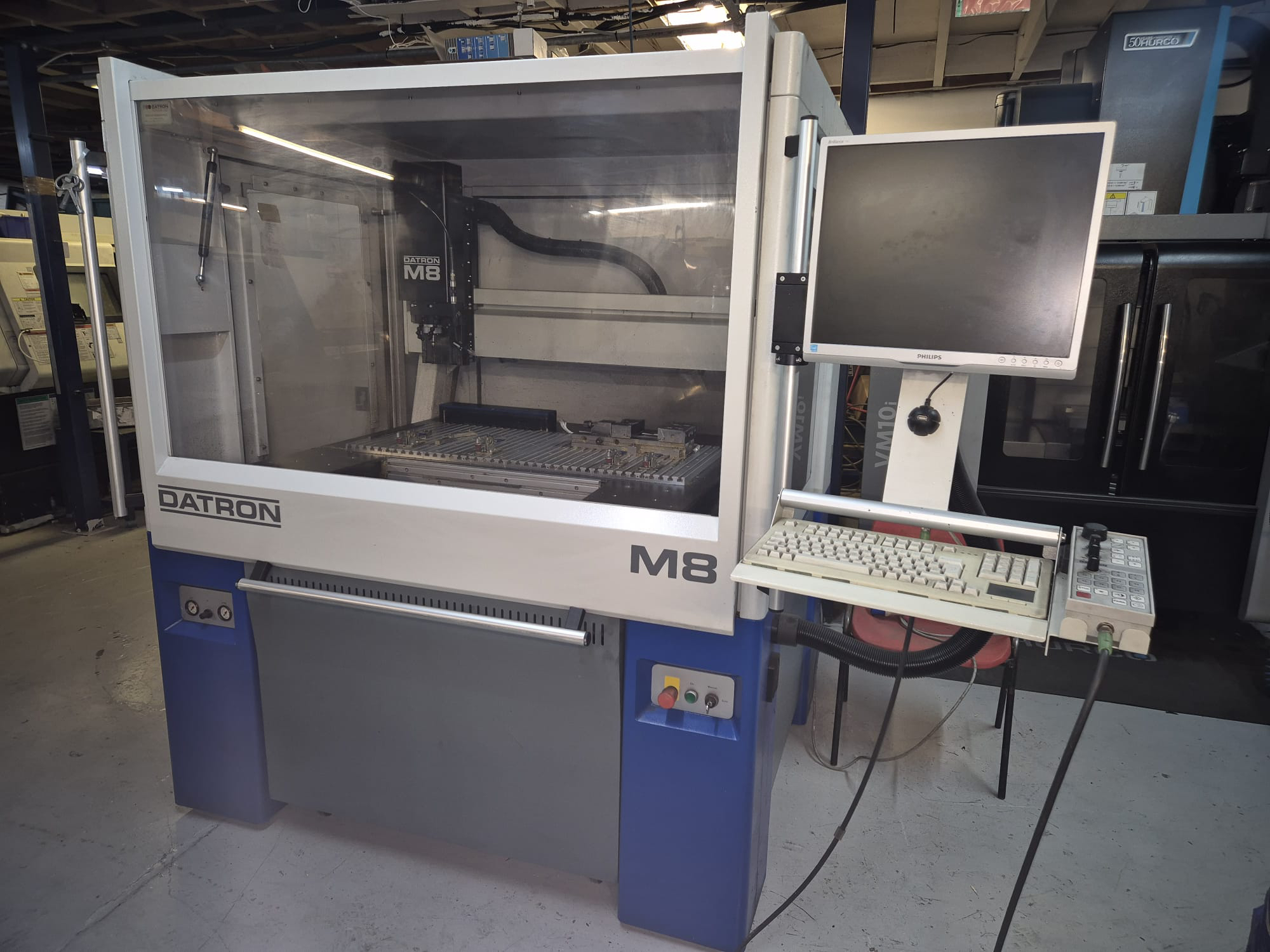

2012 DATRON M8 Cube High-Speed CNC Milling Machine (£43,000 Plus VAT) High-Speed Precision Machining for Aluminium, Plastics and Composites The 2012 DATRON M8 Cube is a high-performance German-engineered CNC milling machine designed for high-speed machining (HSC) of aluminium, plastics, composites and other non-ferrous materials. Combining a large machining envelope with a compact footprint, the M8 Cube delivers exceptional productivity, surface finish quality, and accuracy for both prototype and production environments. DATRON machines are widely known for their high-speed

spindle s, rigid polymer-concrete construction, and efficient machining strategies, making the M8 Cube ideal for industries such as aerospace, electronics, automotive, medical and precision engineering. Key

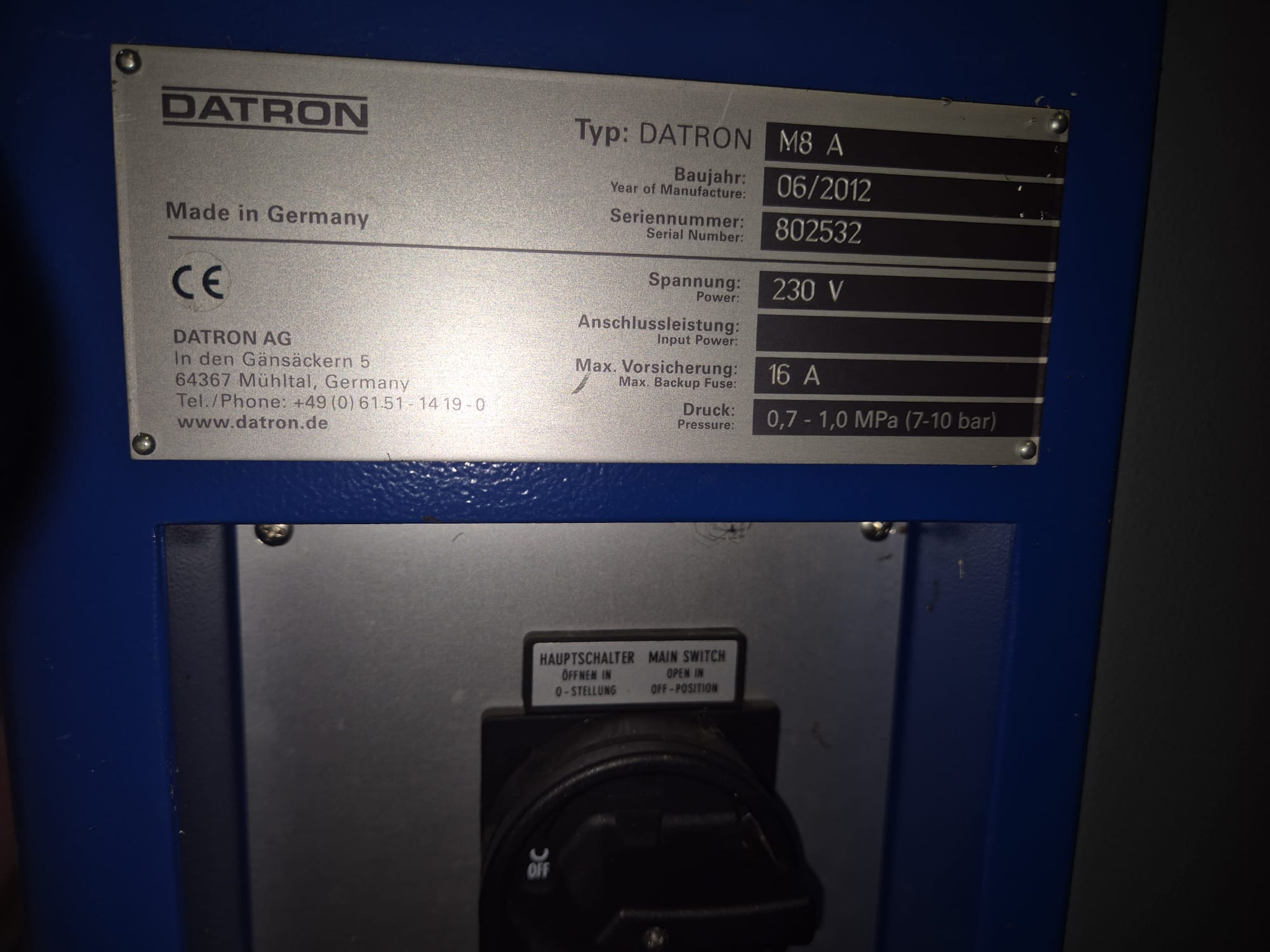

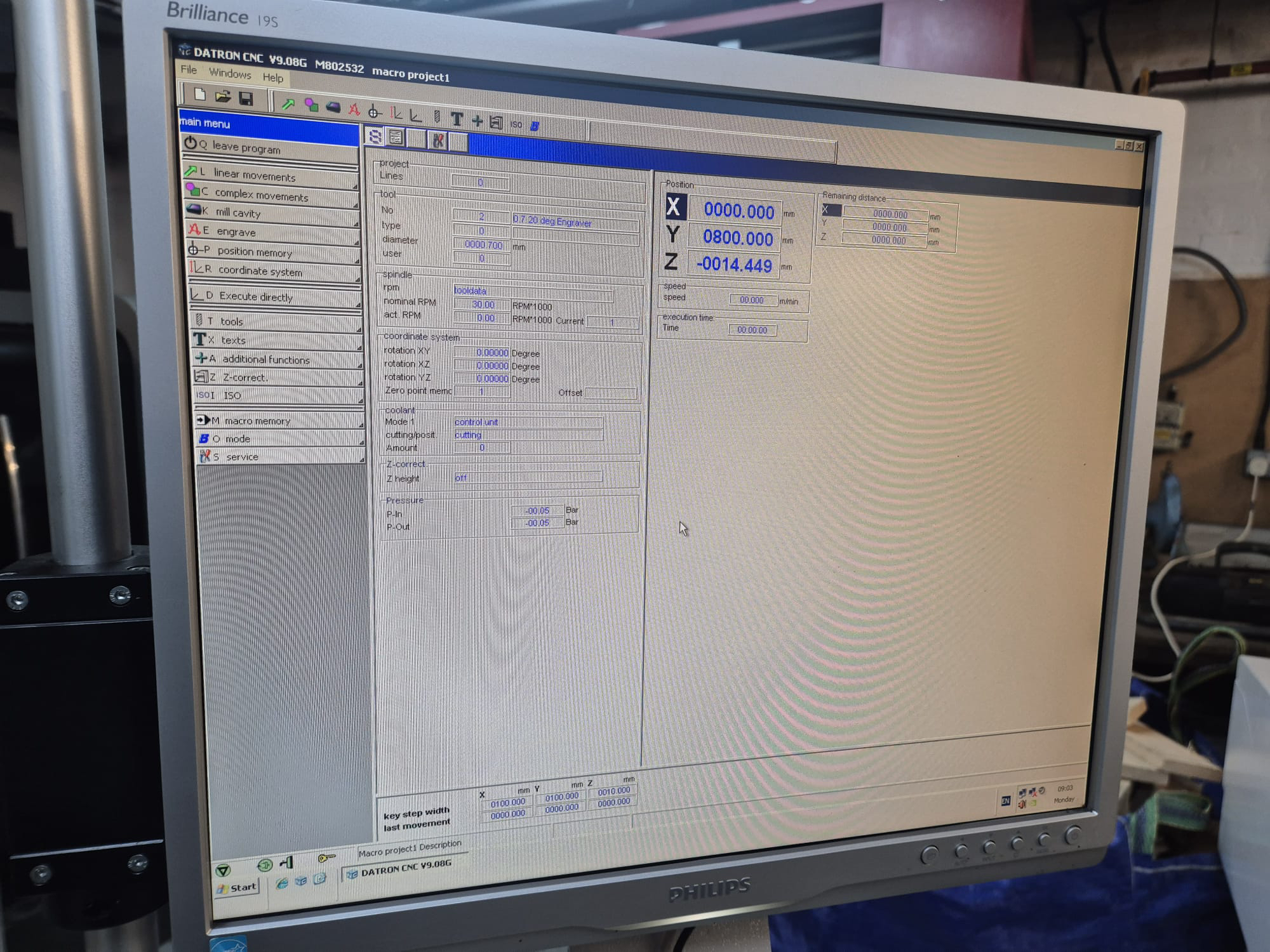

Technical Specification s Model: DATRON M8 Cube Year: 2012 Axes: 3-Axis High-Speed CNC Machining Centre Control System: DATRON CNC Control (Windows-based interface) Travels X-Axis: 1,020 mm Y-Axis: 830 mm Z-Axis: 245 mm

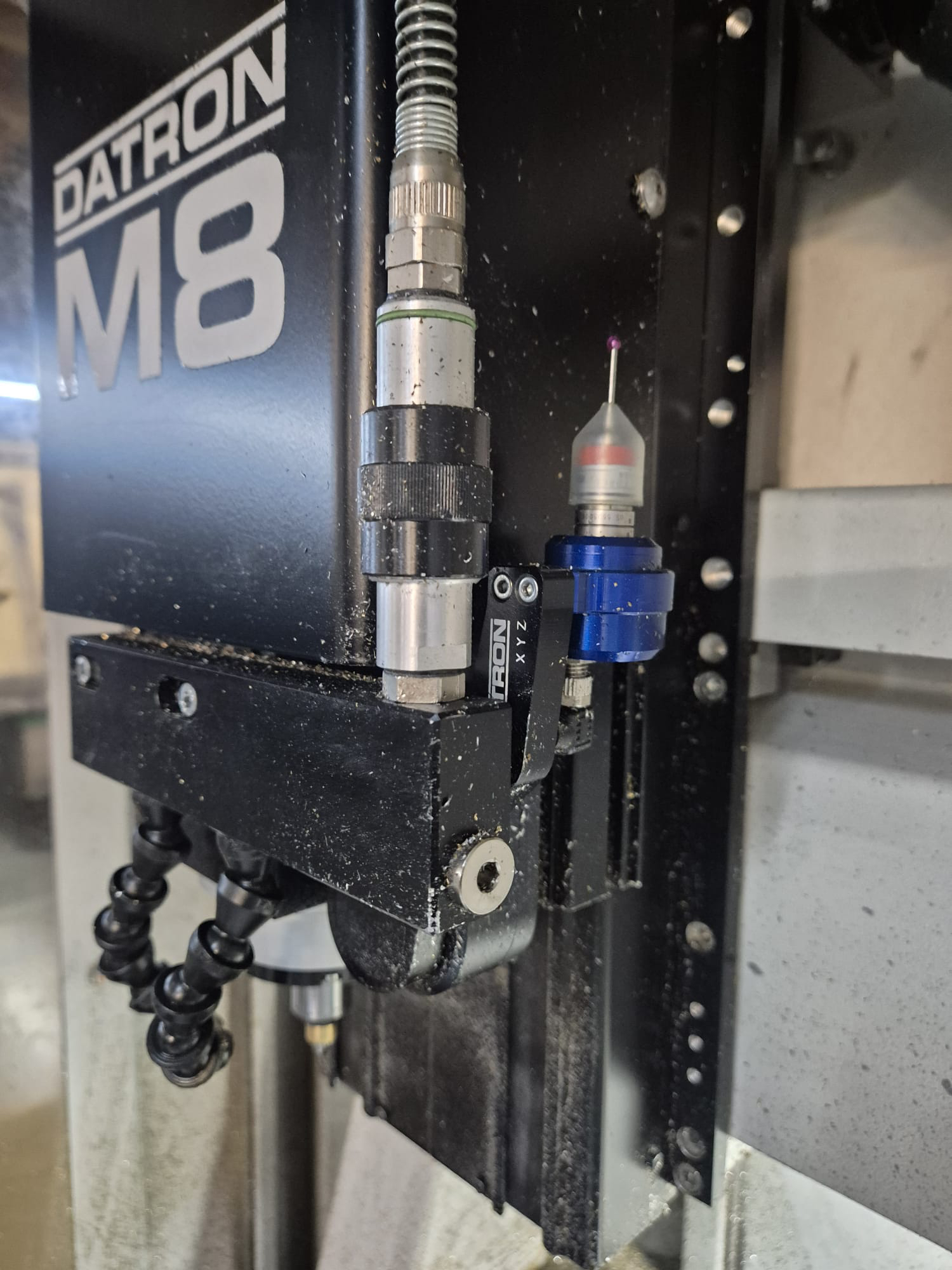

Spindle High-Frequency Electro

spindle Speed: Up to 60,000 RPM Power Range: approx. 0. 6 – 4 kW depending on configuration Feed Rates Rapid Feed: up to 22 m/min Tool Changer Automatic tool changer Capacity from 5 to 30 tools, with optional high-capacity external magazines up to 143 tools depending on configuration Machine Dimensions Footprint: approx. 1,740 × 1,740 mm Height: approx. 1,950 mm Weight: approx. 1,300 kg Machine Design & Performance The M8 Cube features a rigid gantry construction and precision linear guides combined with digital servo drives and ball screw technology to deliver excellent dynamics and repeatable machining accuracy.

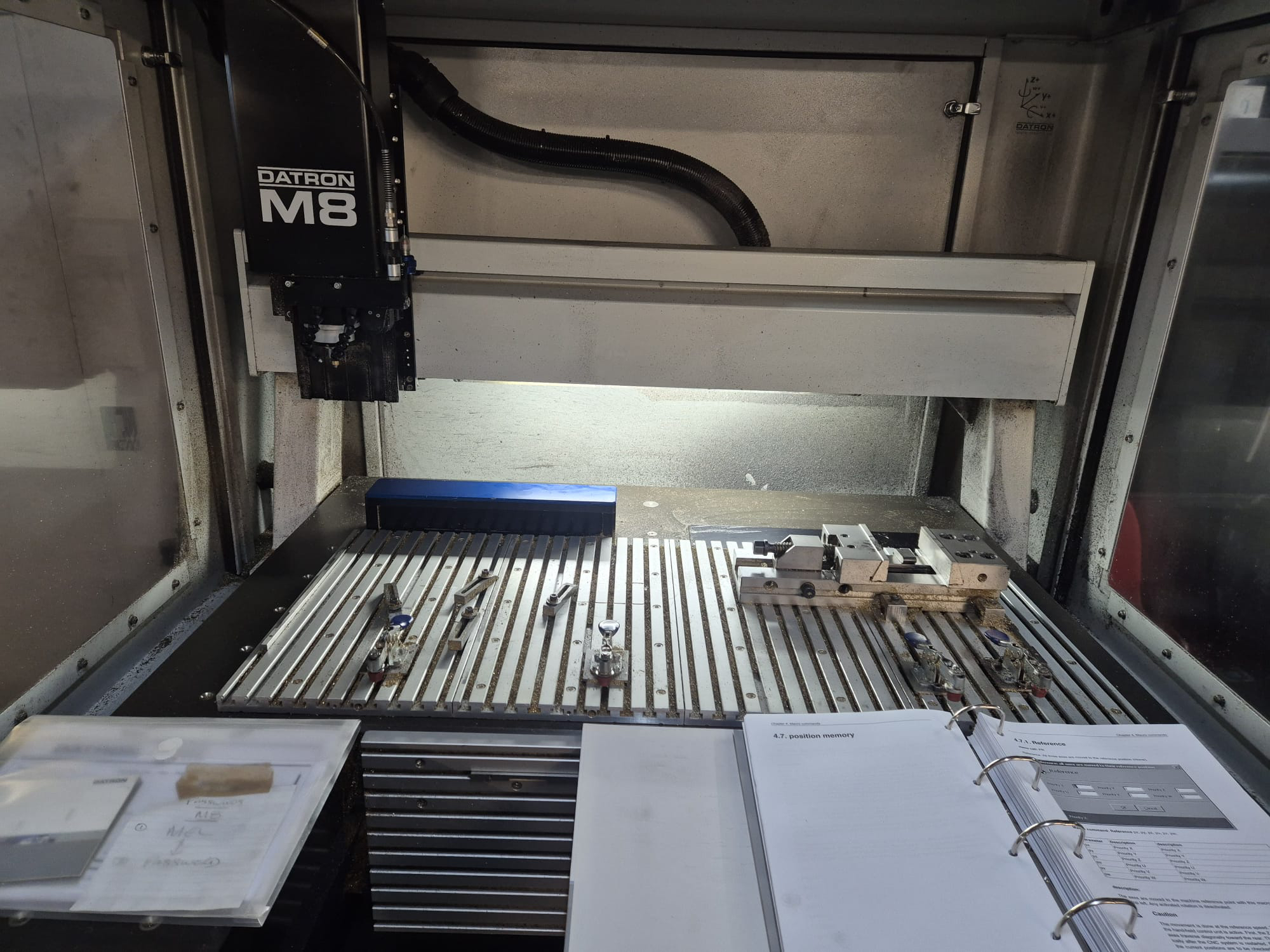

Its polymer concrete machine bed reduces vibration during high-speed machining, enabling superior surface finishes and longer tool life when working with small diameter tools. The machine is specifically designed for high-speed milling with small tools ranging from approximately 0. 1 mm to 20 mm, making it particularly effective for precision components and detailed machining operations. Typical

Applications The DATRON M8 Cube excels in the machining of: Aluminium components Plastic and acrylic parts Copper and brass components Composite materials Engraving and panel machining Precision prototype work Small batch production The large working area also allows nesting multiple parts or machining large plate components in a single setup, improving productivity and reducing cycle times. Key Advantages ✔ High-speed

spindle up to 60,000 RPM ✔ Large machining area with compact machine footprint ✔ Excellent surface finish from rigid, low-vibration design ✔ Efficient machining of aluminium and non-ferrous materials ✔ Flexible tooling options and automatic tool changing ✔ Ideal for prototype work and small-to-medium batch production Ideal For Aerospace component manufacturers Electronics and enclosure machining Medical device manufacturers Precision engineering subcontractors Prototype and R&D machining environments

✅ The 2012 DATRON M8 Cube remains one of the most versatile high-speed CNC milling platforms available for aluminium and non-ferrous machining, combining precision, speed and flexibility in a compact footprint.
