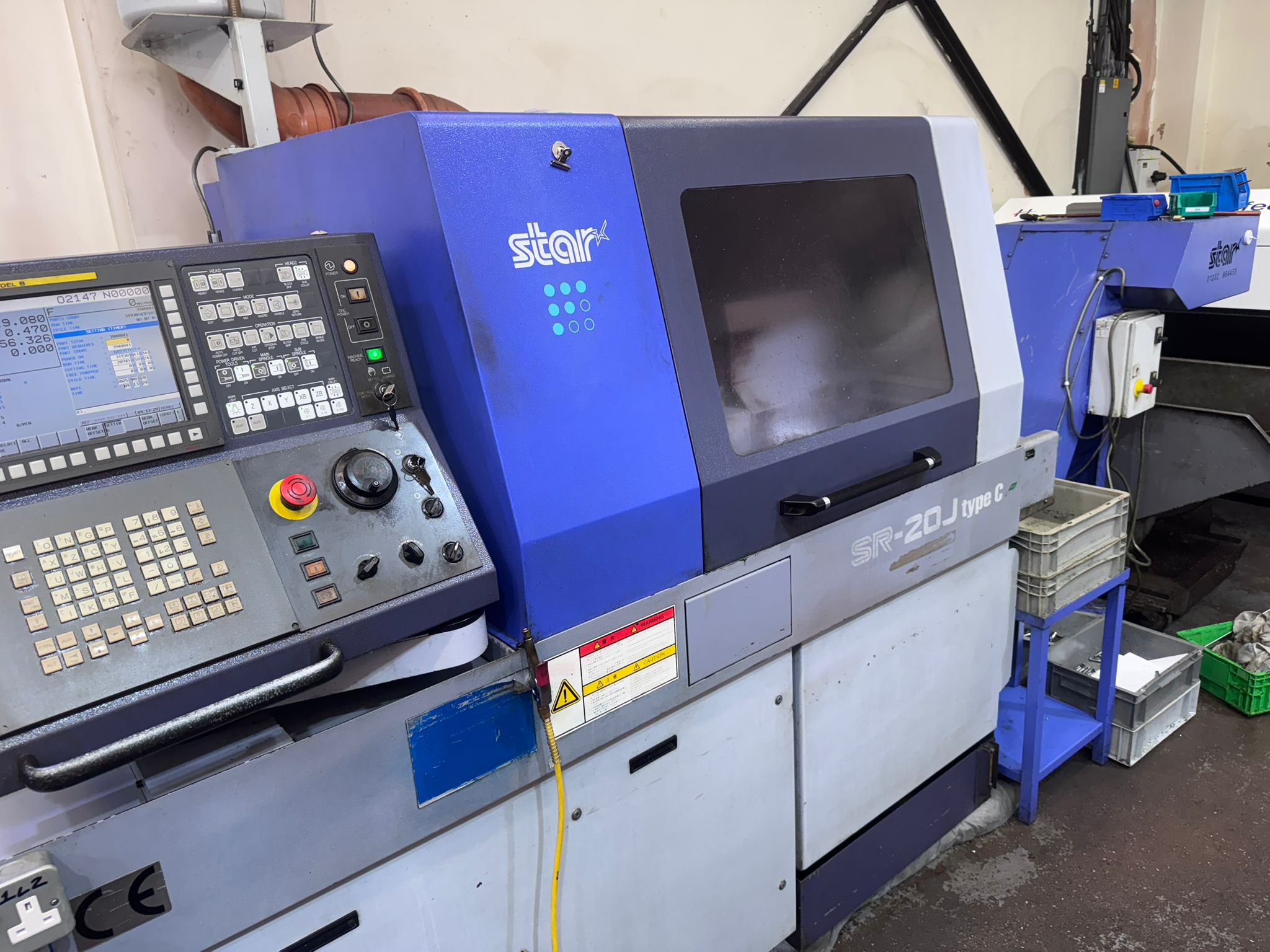

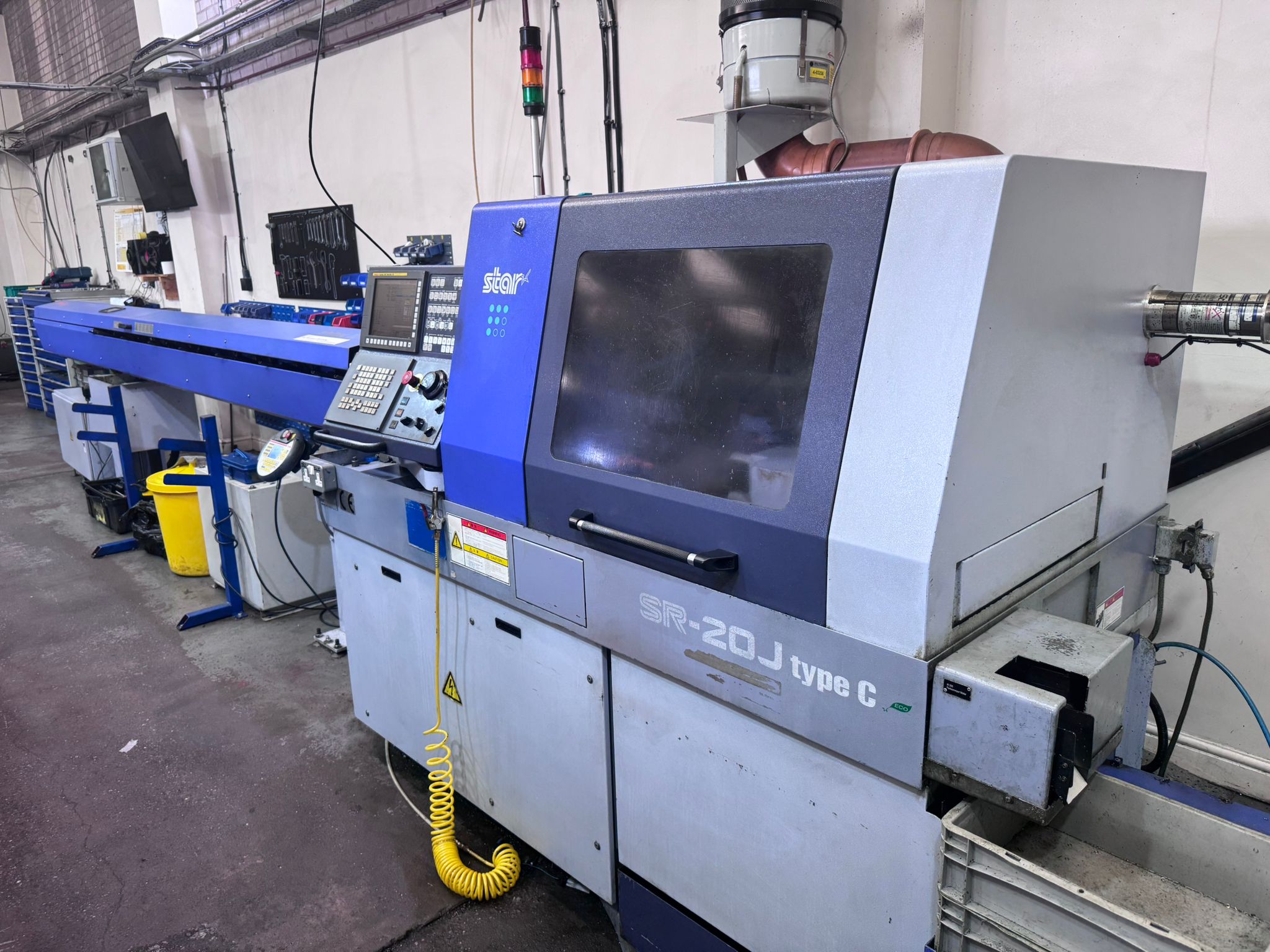

2015 Star SR20J Type C - 20mm CNC Sliding Head Lathe

Used Star SR20J Type C - 20mm CNC Sliding Head Lathe for Sale Machine

Overview The Star SR20J Type C is a high-precision CNC sliding head lathe designed for complex part production with outstanding accuracy and efficiency. Ideal for industries such as aerospace, medical, automotive, and electronics, this machine delivers proven reliability and productivity.

Technical Specification s Model: Star SR20J Type C Type: CNC Sliding Head Lathe Bar Capacity: 20mm

Spindle Speed: Up to 10,000 rpm (main

spindle ) Sub-

Spindle Speed: Up to 8,000 rpm Main

Spindle Motor Power: 3.7 / 5.5 kW Sub-

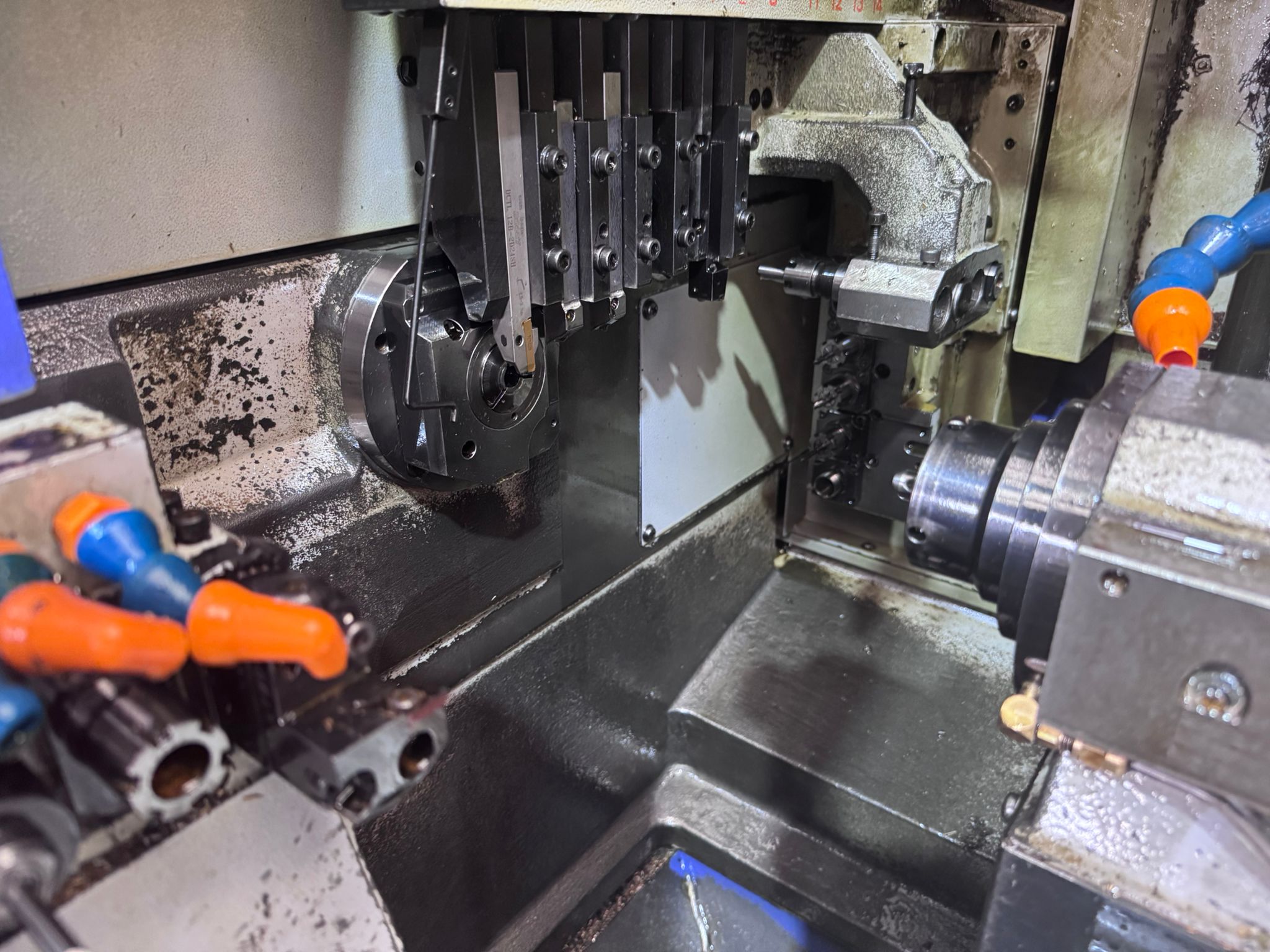

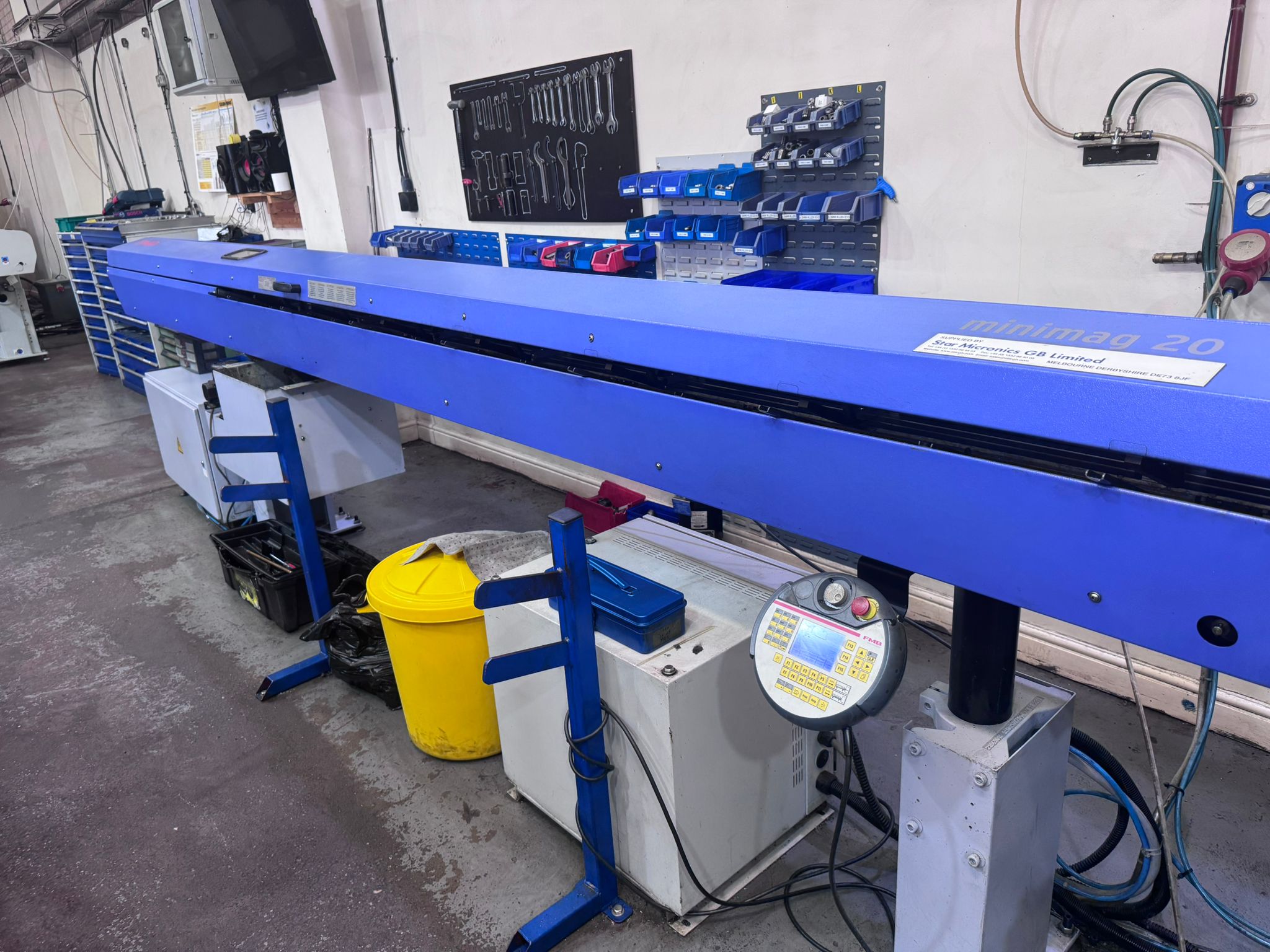

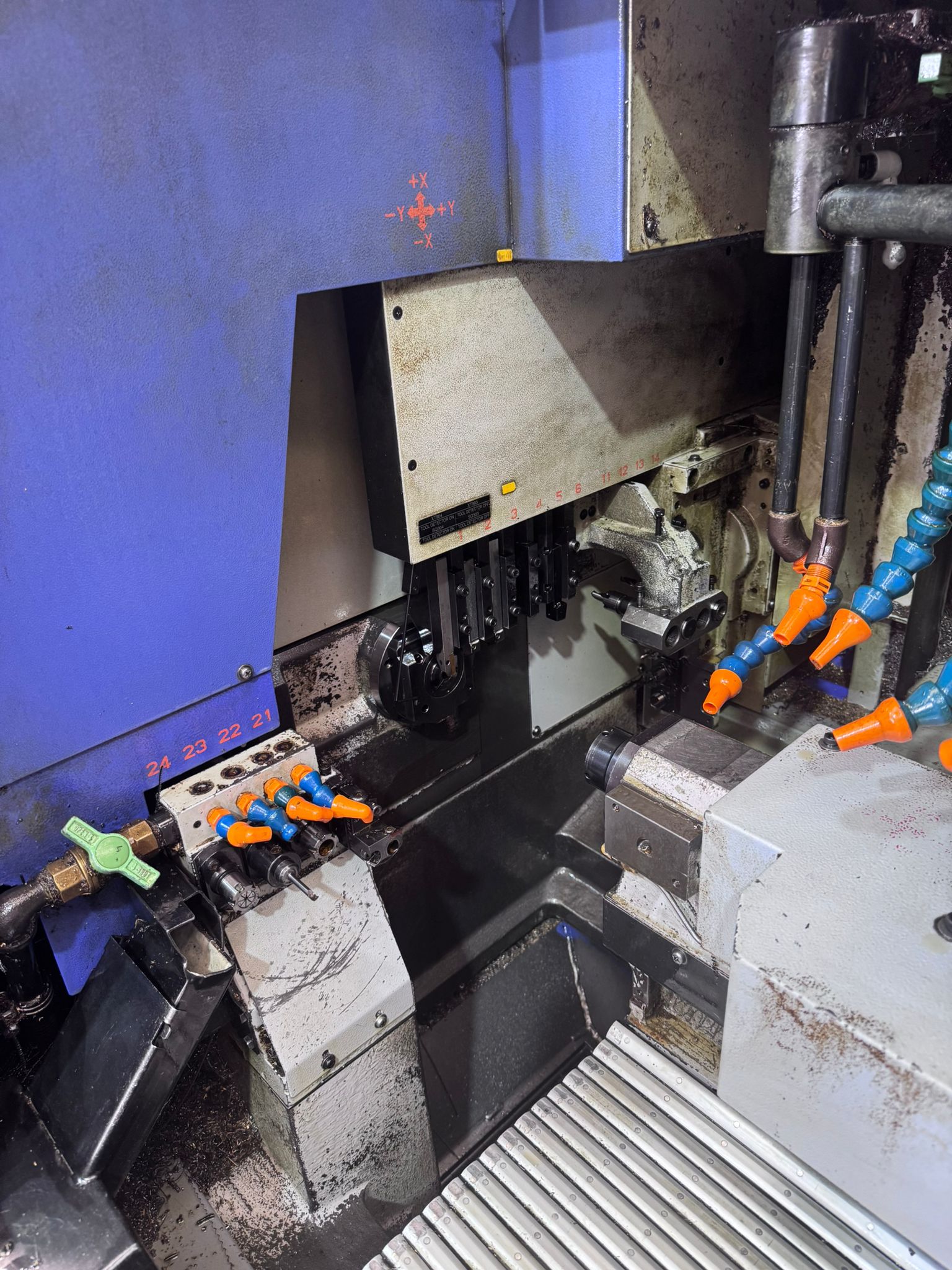

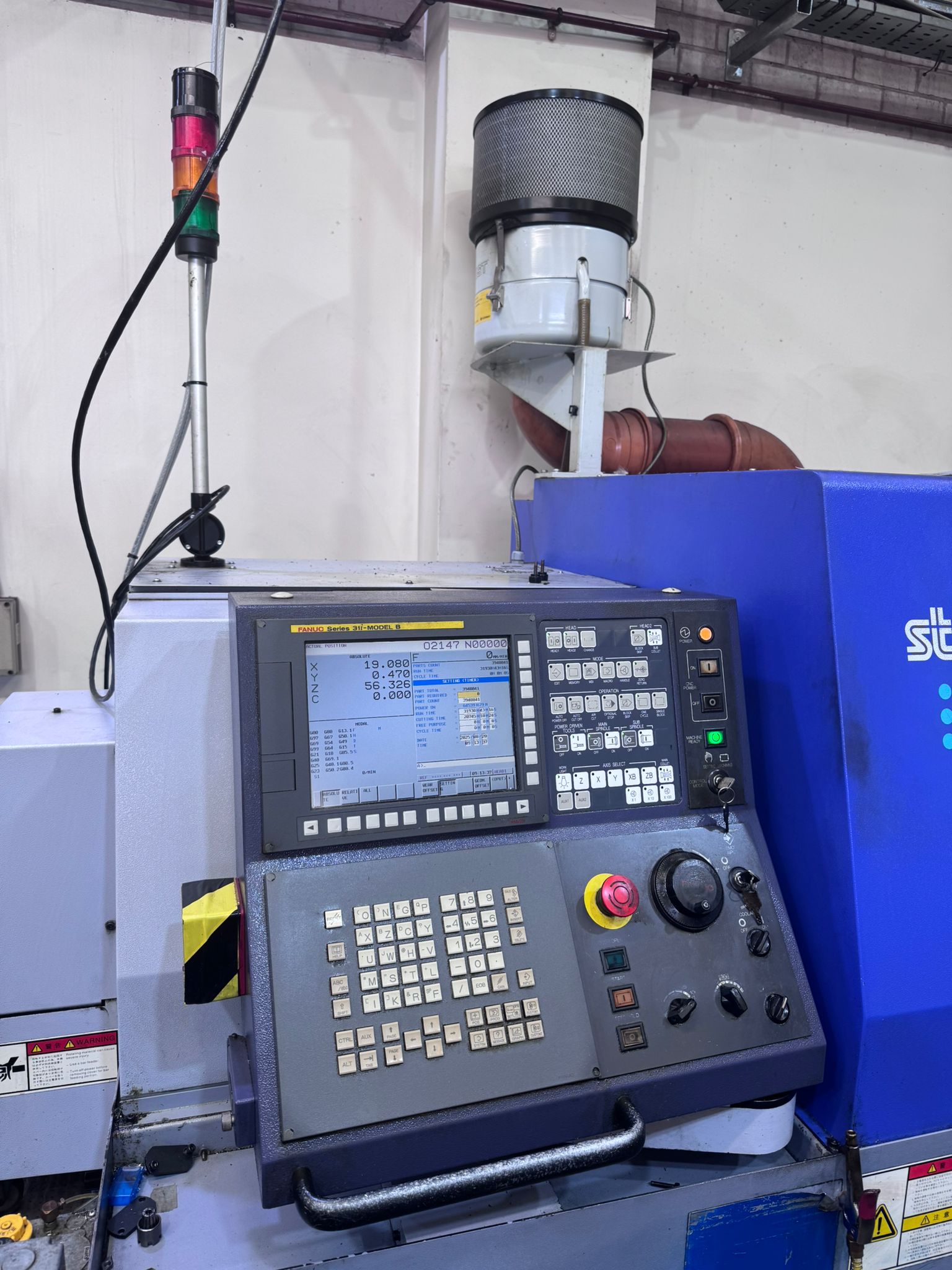

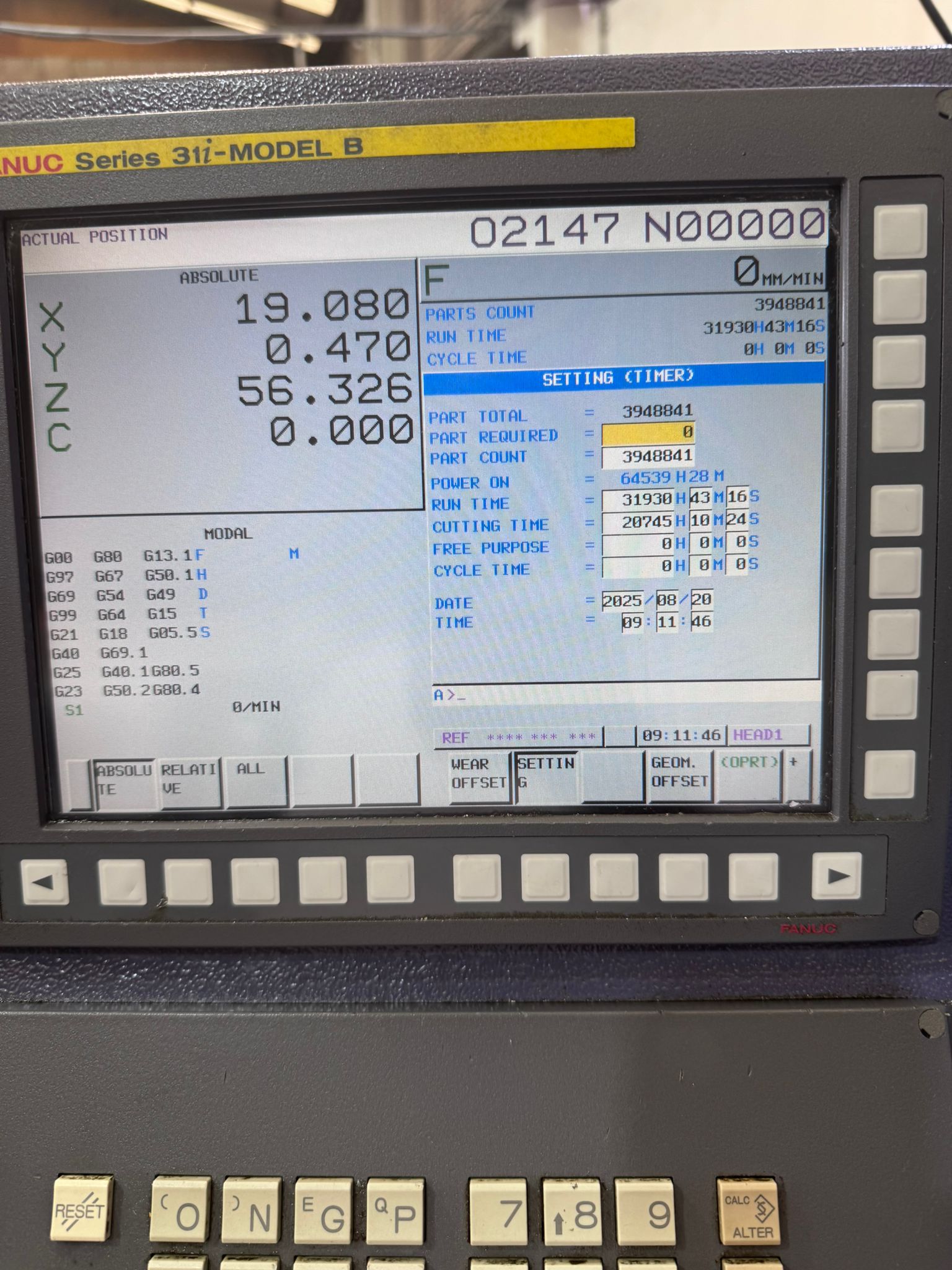

Spindle Motor Power: 2.2 kW Tooling: Up to 6 power-driven tools Live cross and end working capability Back-working tools for complete machining Control System: Fanuc (commonly Fanuc 32i-B or equivalent) Axis Configuration: 7-axis control for complex geometries Rapid Traverse Rate: 32 m/min (approx.) Machine Dimensions (approx.): 2,600mm x 1,200mm x 1,700mm Weight (approx.): 3,000 kg FMB Minimag 20 Bar Feeder LNS MH500 Swarf Conveyor Filtermist Mist extraction Long Parts Ejection

Key Features Sliding headstock for precision on long and small-diameter components Capable of complete machining in a single setup Driven tooling for milling, drilling, and slotting operations Robust and compact design for efficient use of floor space Proven track record in high-volume production environments Typical

Applications Medical implants & surgical instruments Aerospace fasteners and precision components Automotive parts and connectors Hydraulic and pneumatic fittings Electronic and telecom components Why Buy a Used Star SR20J Type C? Cost-effective alternative to new CNC sliding head lathes Reliable and durable construction with long service life Widely supported with parts and service availability Excellent choice for subcontractors looking to expand capacity Availability This Used Star SR20J Type C CNC Sliding Head Lathe is available now at UsedCNCMachine. co. uk. All machines are fully inspected and prepared for sale to ensure performance and reliability. £35,000.

00 Plus VAT Lifting & Commissioning will occur additional costs - please contact us.
