2018 Tornos CT20-5 20mm CNC Sliding Head Lathe

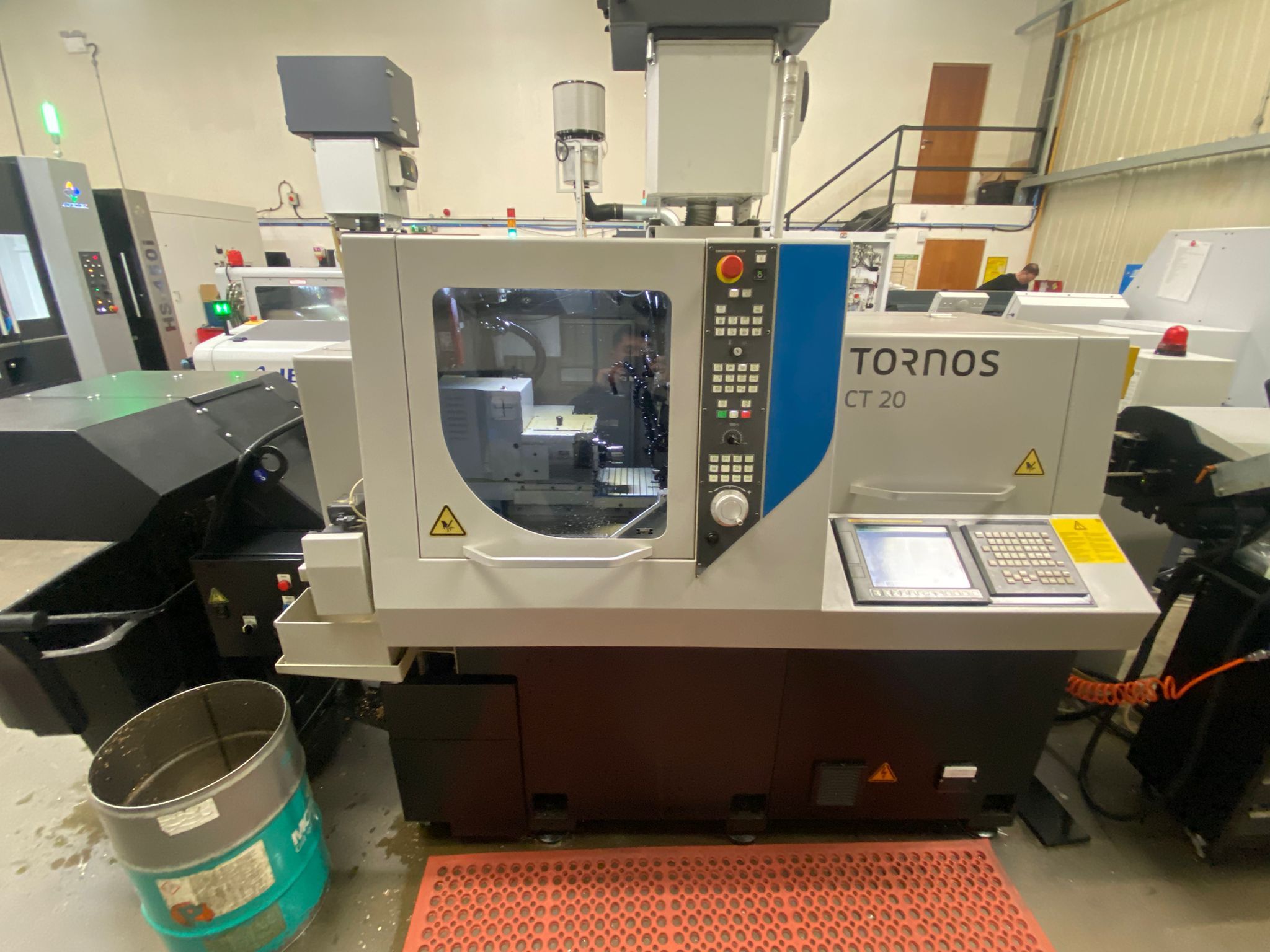

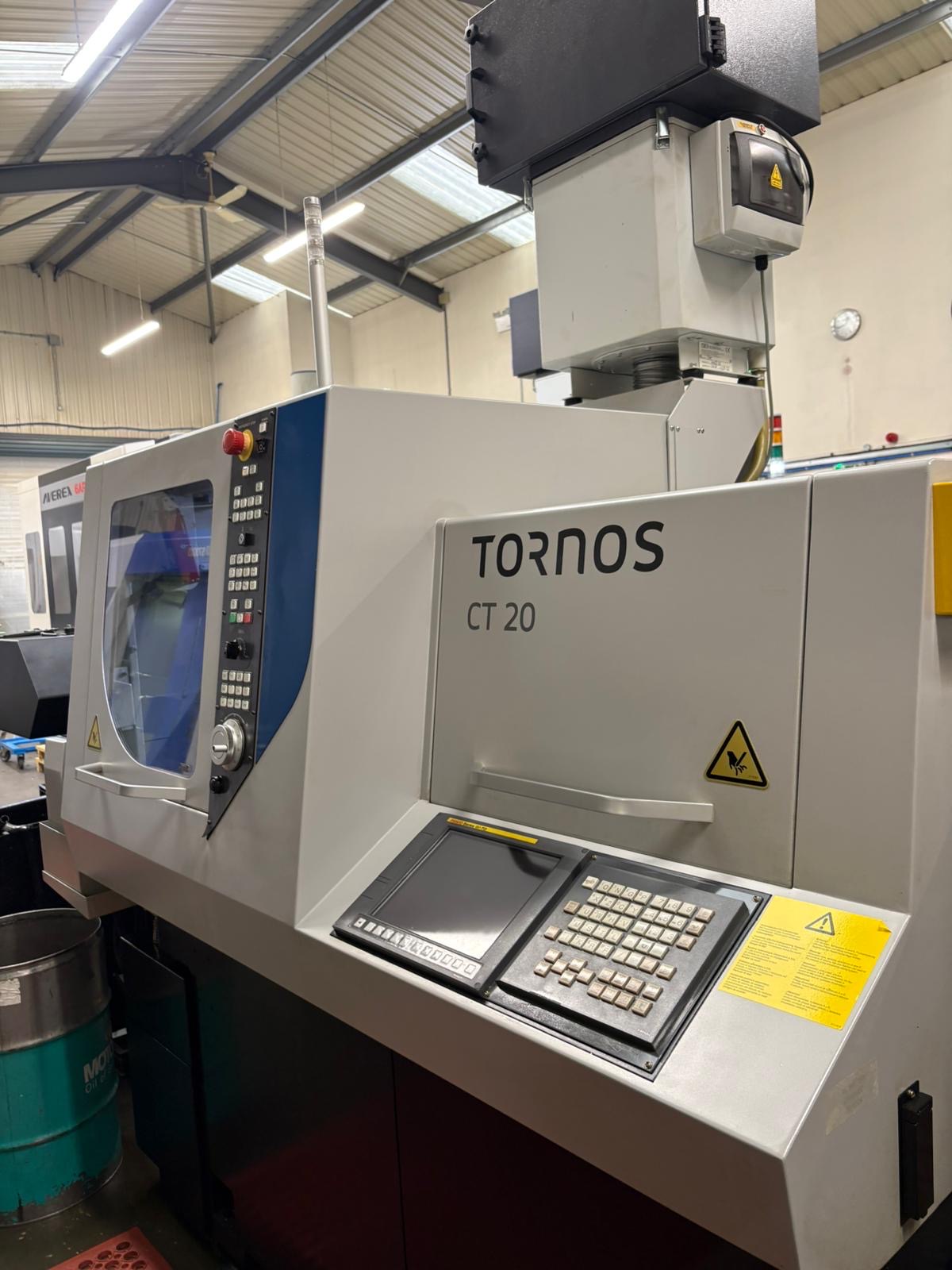

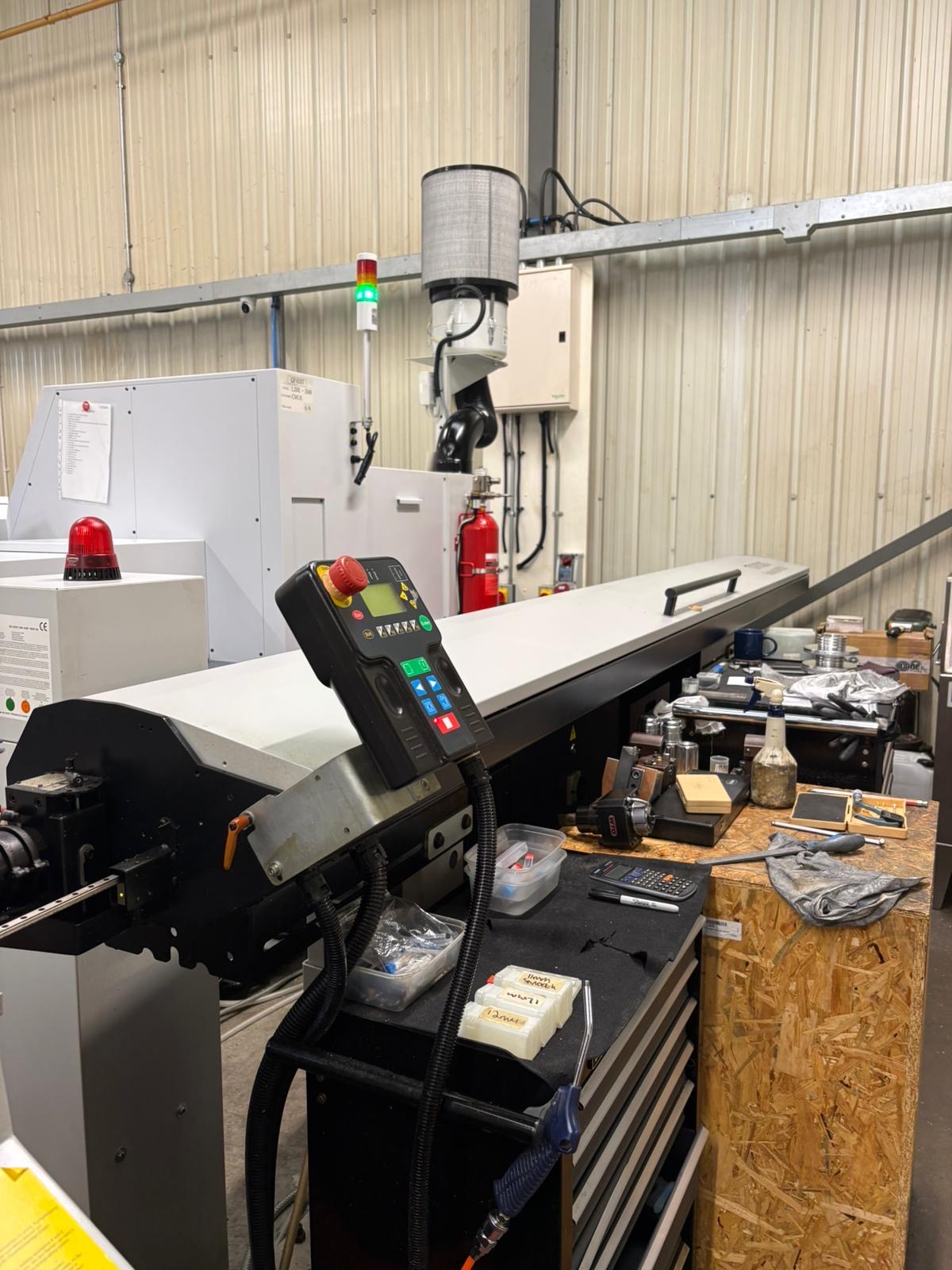

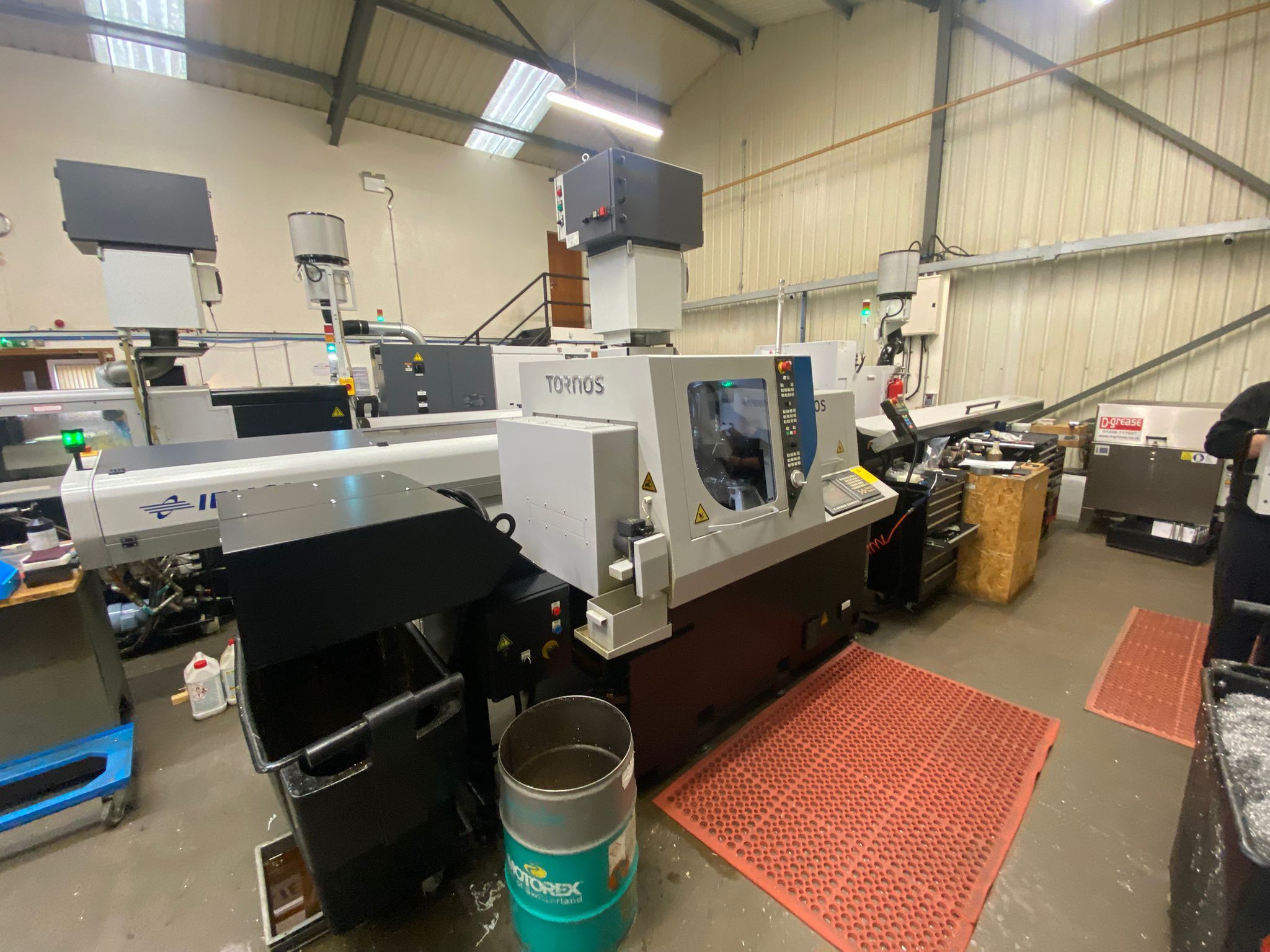

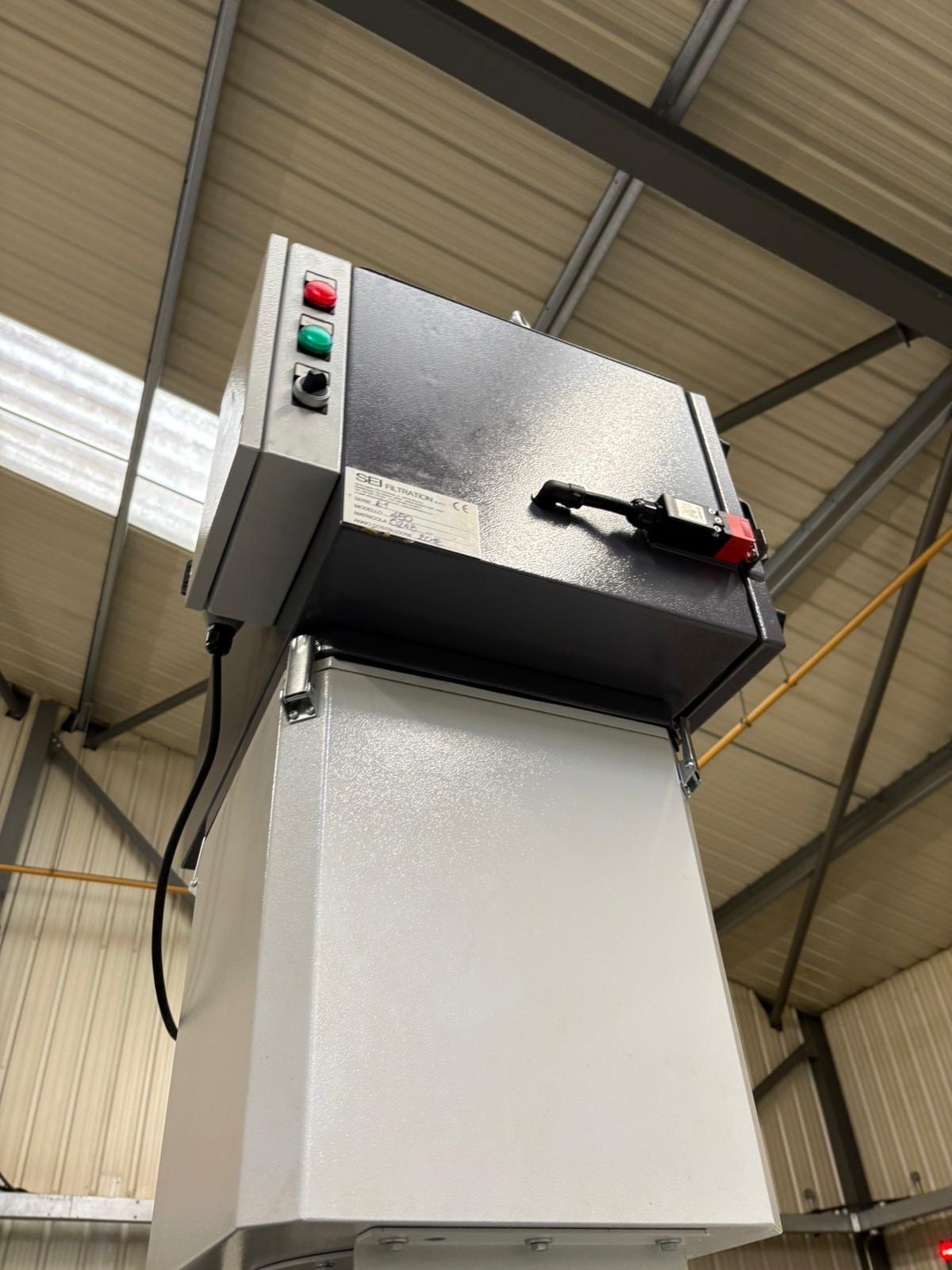

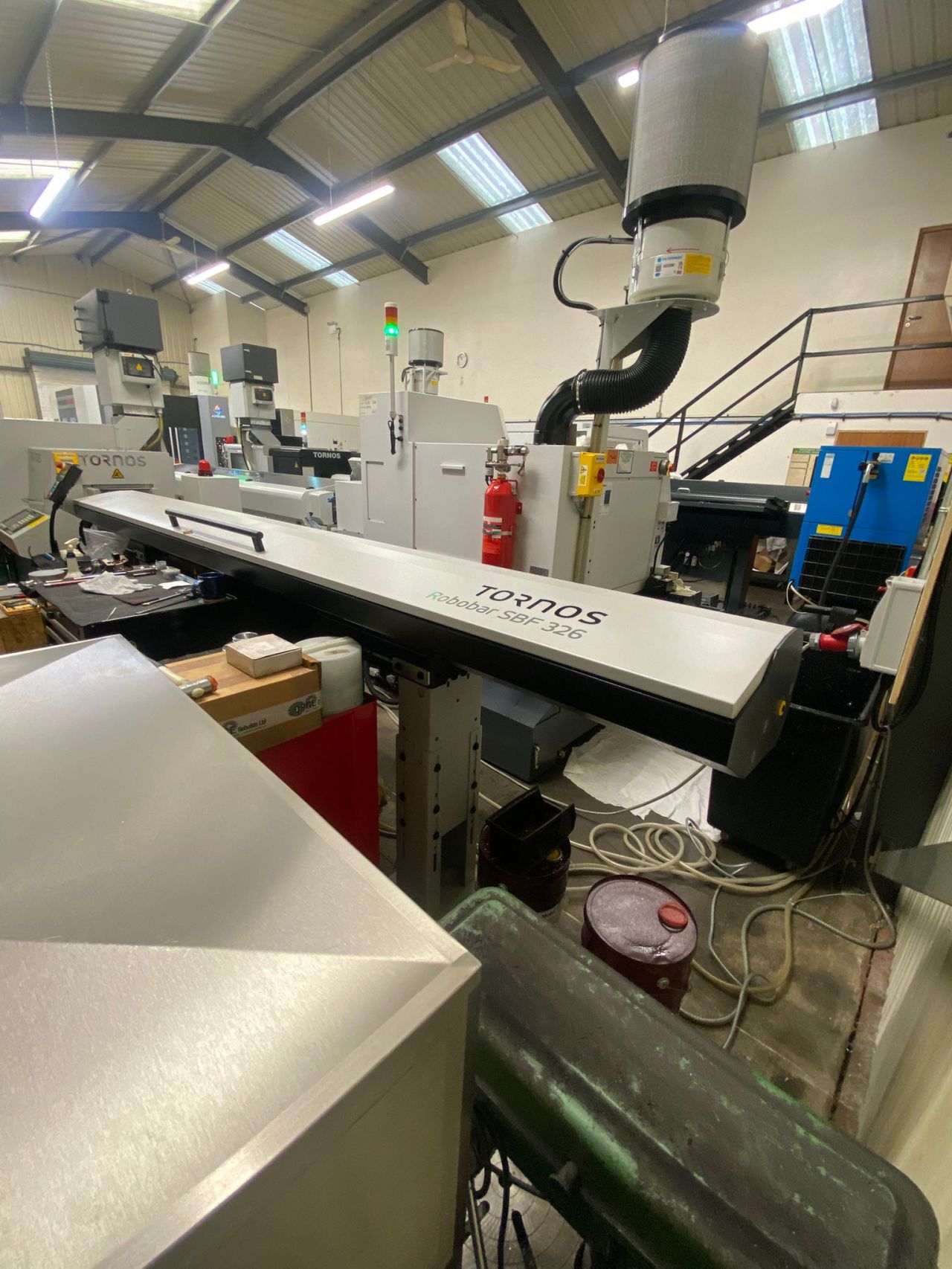

TORNOS CT20 (2018) Low Machine Hours. We currently have a Tornos CT20 sliding head lathe available for sale, manufactured in 2018 and showing just 4,893 machining hours. Specification highlights: Tornos CT20 - Tornos Robobar SBF 326 – 3. 2 m - LNS Turbo HB swarf conveyor - Kraft & Bauer fire suppression unit - SEI Filtration CMC 400J-S2 Non guide bush conversion kit - Selection of toolholders & collets Operator manuals included. A well-equipped, low-hour machine ideal for high-precision production. Tornos CT20-5: Precision Swiss-Type CNC Lathe The Tornos CT20-5 is a Swiss-type sliding head CNC lathe engineered for high-precision production of small, complex components.

Its compact design and robust construction make it well suited for industries such as medical device manufacturing, electronics, aerospace, and high-precision subcontract work. Built around a 5-axis configuration with dual independent tool systems, the CT20-5 enables efficient multi-operation machining in a single setup. The machine’s rigid structure and precise axis control deliver excellent repeatability and surface finish, even on long production runs. A C-axis integration on both

spindle s adds indexing capability and extensive milling, drilling, and tapping versatility. Key

Technical Specification s General Machine Data Bar capacity: Ø 20 mm (max) Linear axes: 5 C-axes: Yes (2) Total tool positions: ~26 Control system: FANUC CNC

Spindle & Performance Main

spindle speed: up to 8 000 Main

spindle drive power: ~2.2 kW (upgradable to 3.7 kW) Back/counter

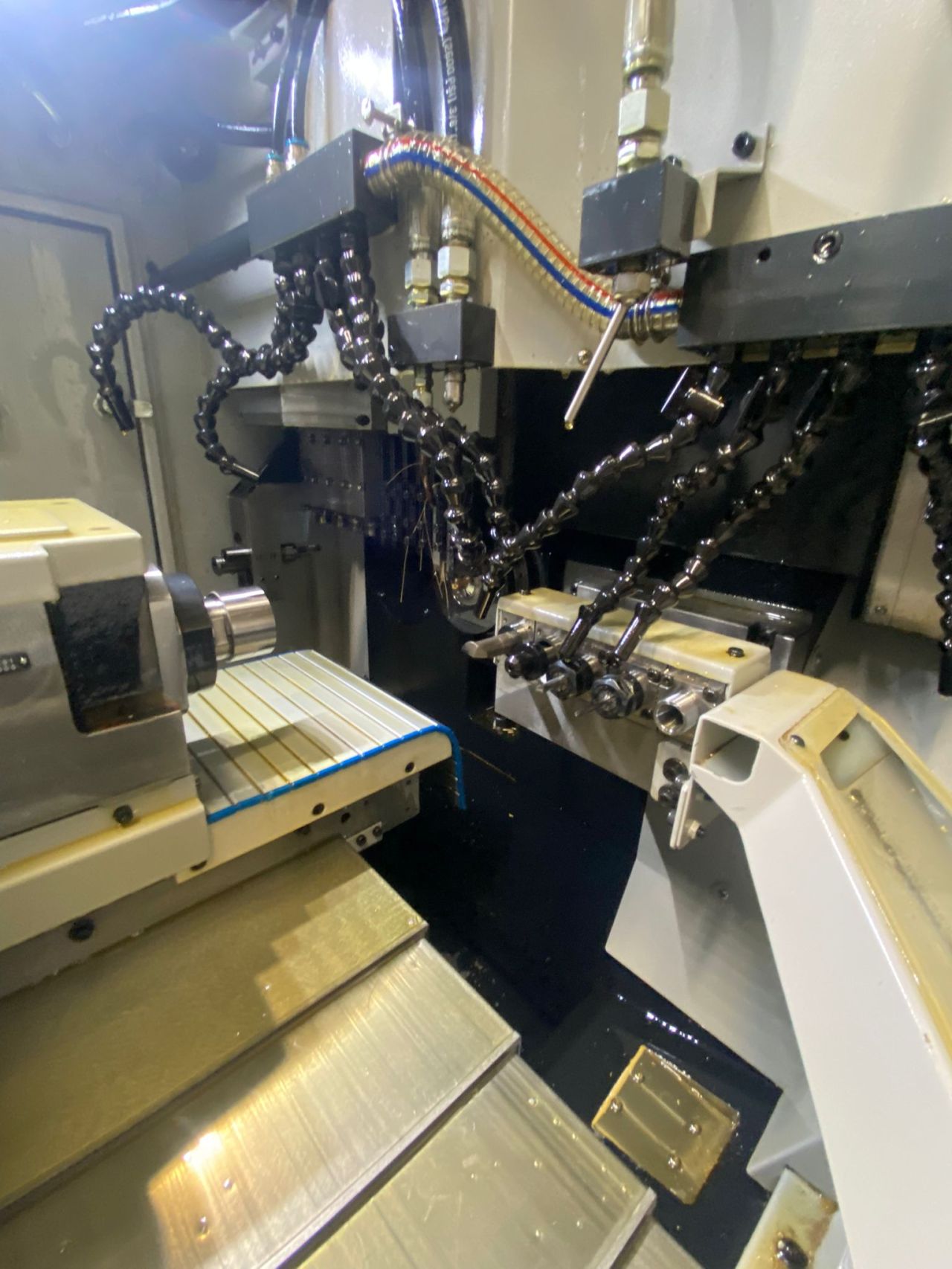

spindle : Up to 8 000 rpm with indexing C-axis Tooling & Machining Max turning tool count: ~6 on main headstock Turning tool section: ~12 × 12 mm Drilling capacity: Ø up to ~10 mm (main/rear tools) Tapping capacity: up to M8 Rotating/Cross-rotating tools: up to ~4 positions Workpiece & Guide Bush Headstock stroke with rotating guide bush: ~210 mm Typical maximum part length: ~170–210 mm with guide bush options Dimensions & Weight Approx. footprint: ~2 020 × 1 256 × 1 715 mm (L×W×H) Approx. weight: ~2 900 kg

Summary The Tornos CT20-5 offers a strong blend of precision, flexibility, and productivity in a compact Swiss-type CNC platform. Its 5-axis control, dual CNC channels, and C-axis capability make it highly capable for complex multi-operation parts, while a range of tooling options supports drilling, tapping, and live tooling operations without secondary setups. £POA
