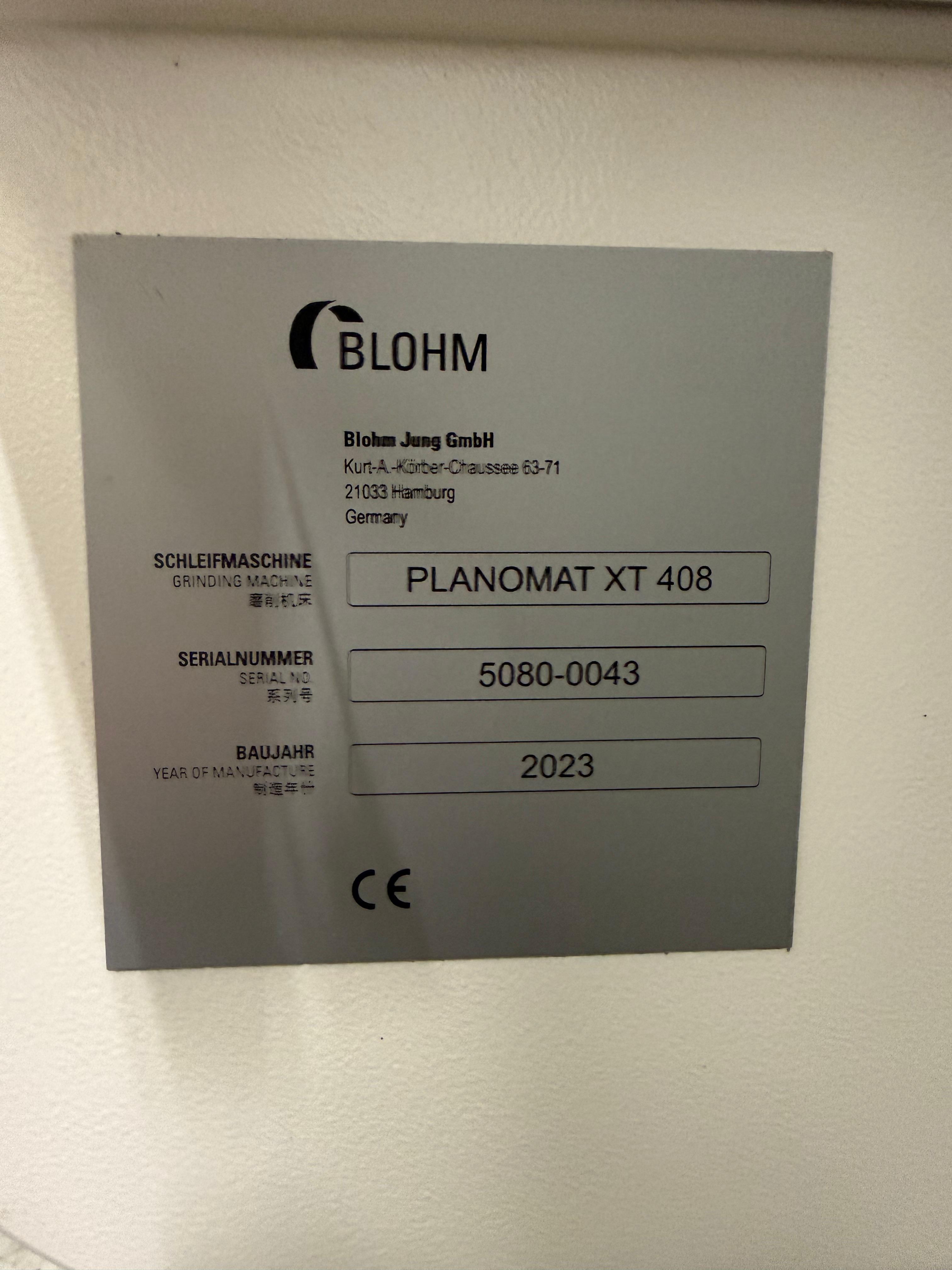

2023 Blohm Planomat XT Surface Grinding Machine.

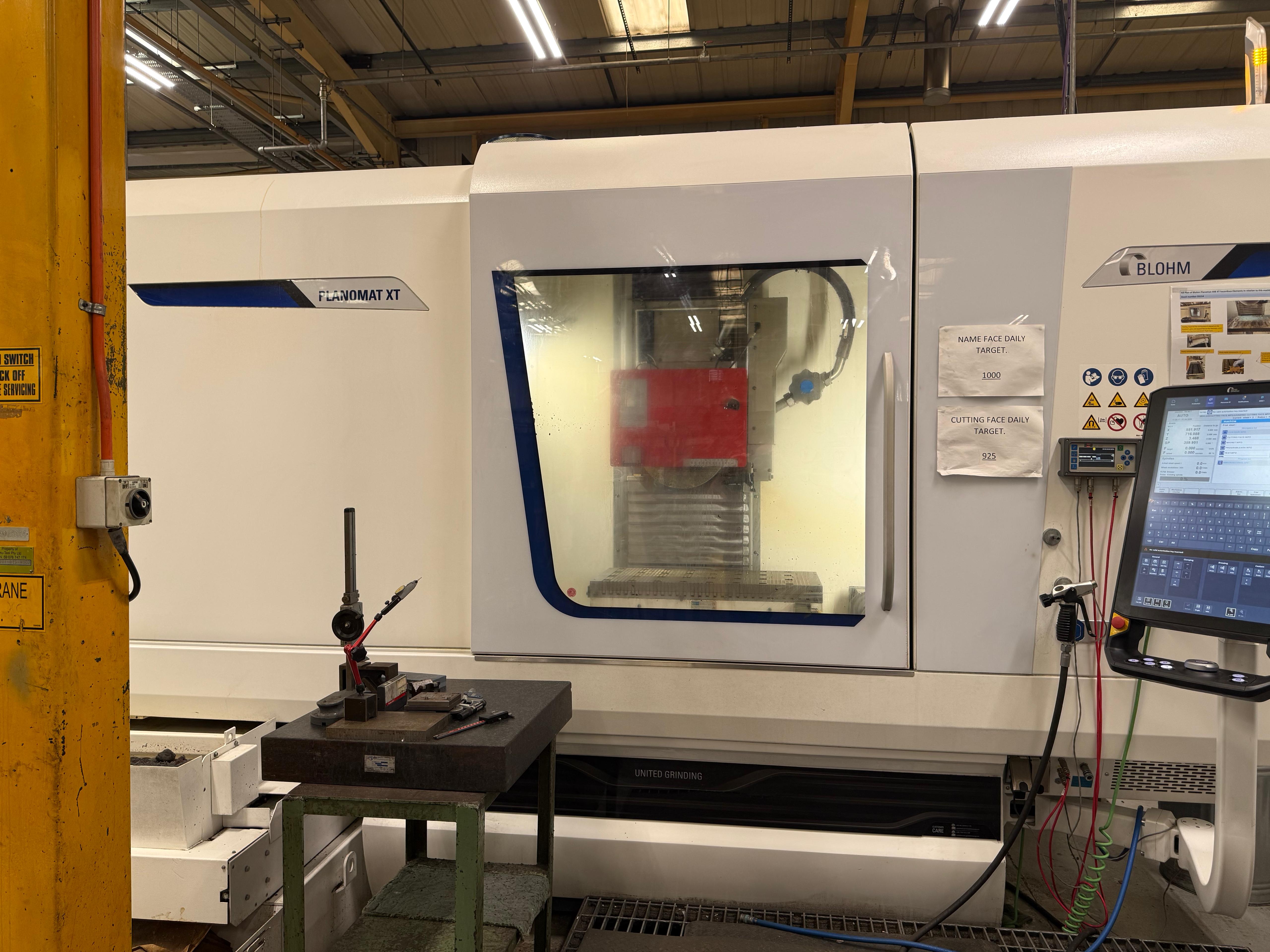

Blohm Planomat XT Surface Grinding Machine – Precision, Power & Flexibility. The Blohm Jung GmbH Planomat XT is a high-precision surface and profile grinding machine engineered for demanding

applications requiring tight tolerances, superior surface finishes, and process reliability. Built in Germany, this machine combines robust construction, powerful

spindle options, and advanced control technology for consistent, high-quality results.

� � Key Performance Advantages Large grinding capacity up to 600 × 1,200 mm (model dependent) High table load capacity – up to 800 kg Variable-speed grinding

spindle up to 24 kW Precision linear axes with high feed resolution Designed for both deep grinding and pendulum grinding

applications This makes the Planomat XT ideal for toolrooms, mould & die, aerospace, and high-precision subcontract work.

� �

Working Envelope & Capacity Grinding Range: 400 × 800 mm up to 600 × 1,200 mm Max Table Load: 800 kg (including magnetic chuck) Table Height: 955 mm Distance Table to

Spindle Centre: 150 – 950 mm The generous working area supports larger components and multiple setups, improving efficiency per cycle.

⚙ ️ Axis Travels & Feed Rates X-Axis Travel: up to 1,500 mm Y-Axis Travel: 800 mm Z-Axis Travel: up to 560 mm Feed Rates: X: 30 – 40,000 mm/min Y: 4 – 10,000 mm/min Z: 4 – 16,000 mm/min These capabilities allow for both heavy stock removal and ultra-fine finishing.

� �

Spindle & Grinding Capability

Spindle Power Options: 11 kW / 15 kW / 24 kW

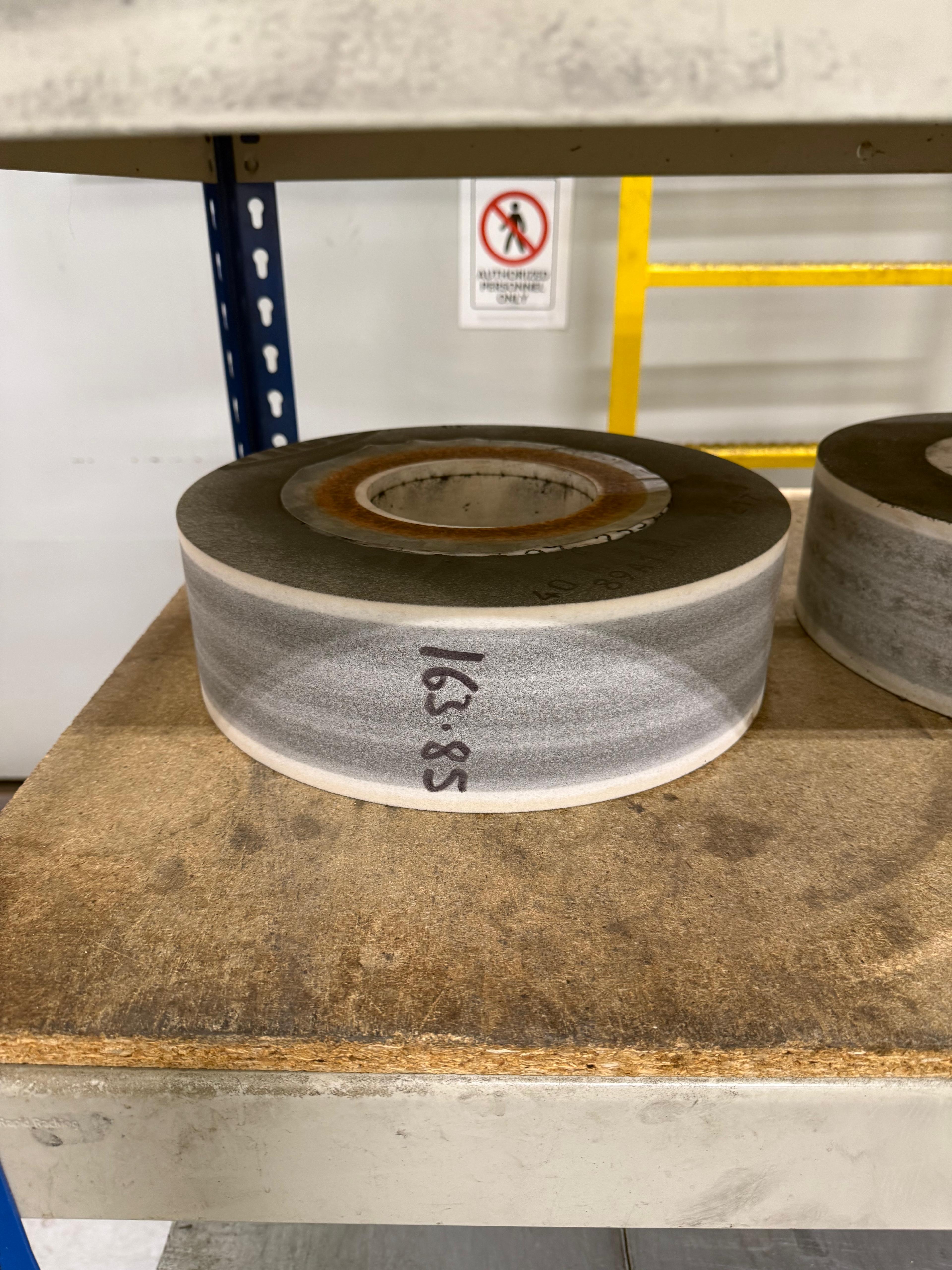

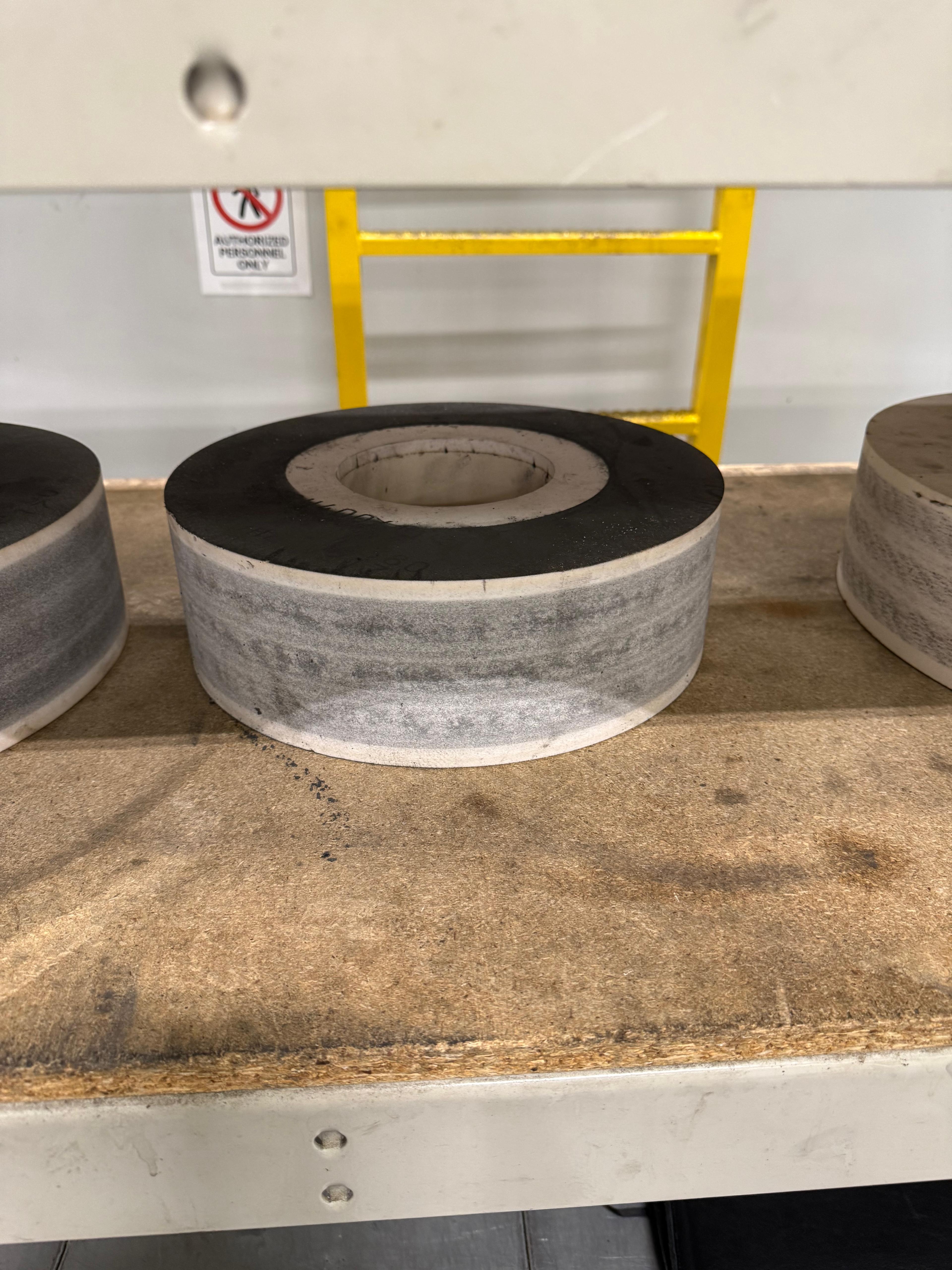

Spindle Speed: up to 8,000 rpm Max Grinding Wheel Diameter: 400 mm The powerful

spindle enables high material removal rates, while maintaining thermal stability and surface integrity.

� � CNC Control System Equipped with advanced Siemens 840D sl control, delivering: Intuitive operator interface Network connectivity for data transfer Integration with shopfloor systems High-level process control for complex grinding cycles This ensures repeatability, accuracy, and easy program management.

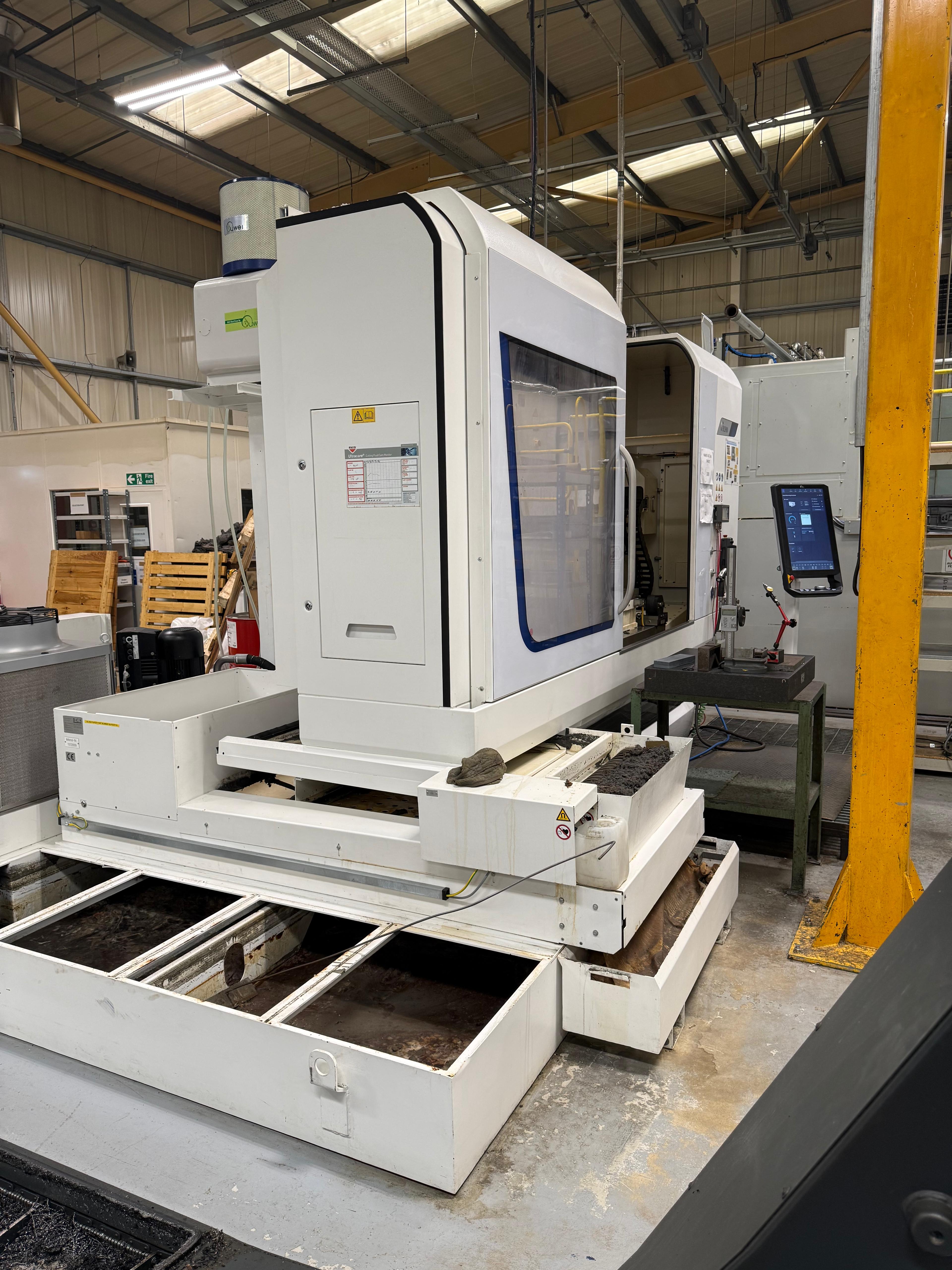

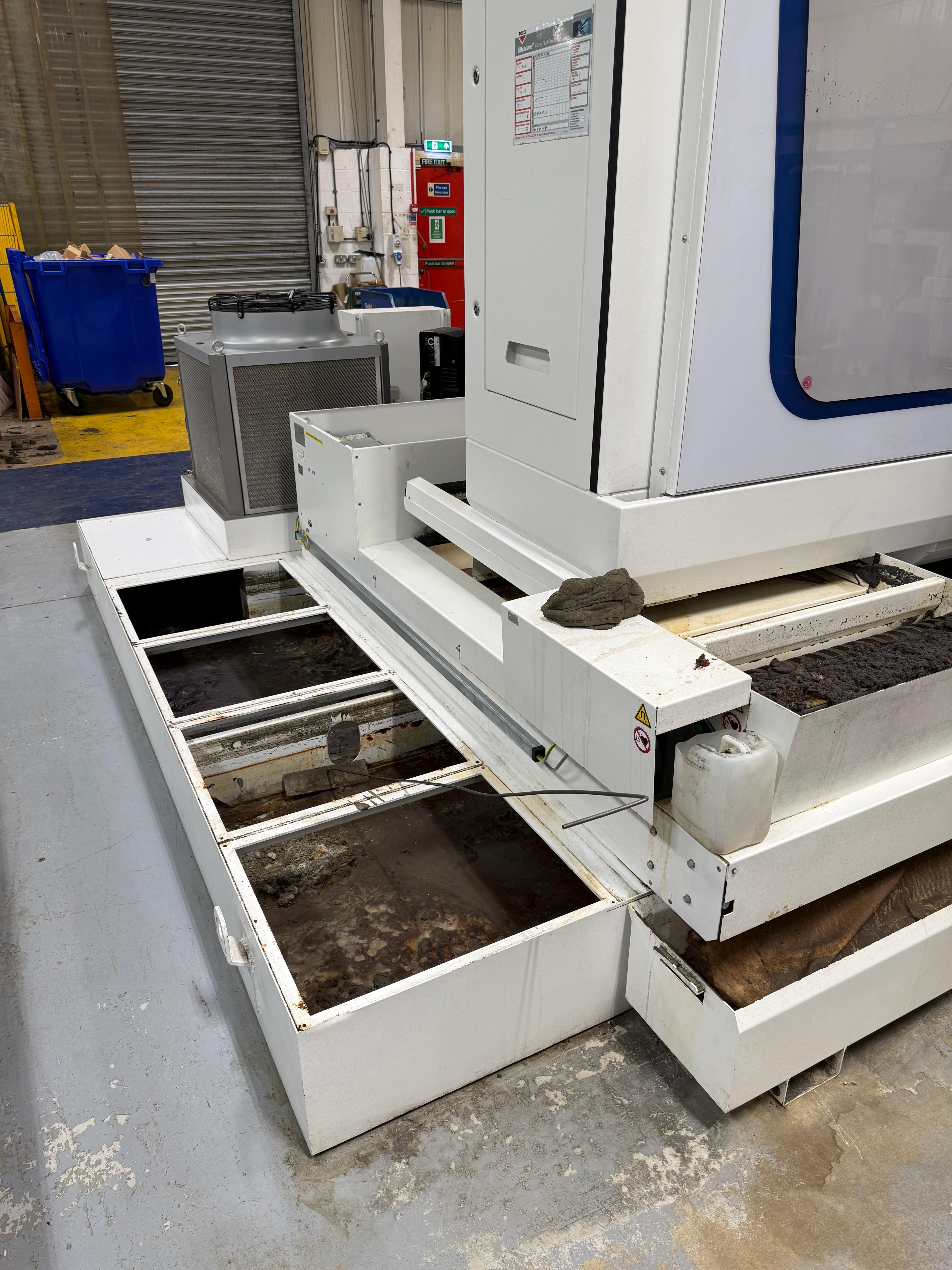

� �️ Machine Construction & Design Rigid machine base for vibration-free grinding Optimised for thermal stability and accuracy Fully enclosed working area for safety and cleanliness Integrated coolant mist extraction compatibility Machine weights up to 9,300 kg ensure maximum stability under load.

� � Grinding Versatility The Planomat XT supports a wide range of materials and

applications : Tool steels (hardened and unhardened) Stainless steels and high-alloy materials Cast iron and bearing steels Nickel-based and aerospace alloys Compatible with CBN and diamond wheels for advanced grinding strategies.

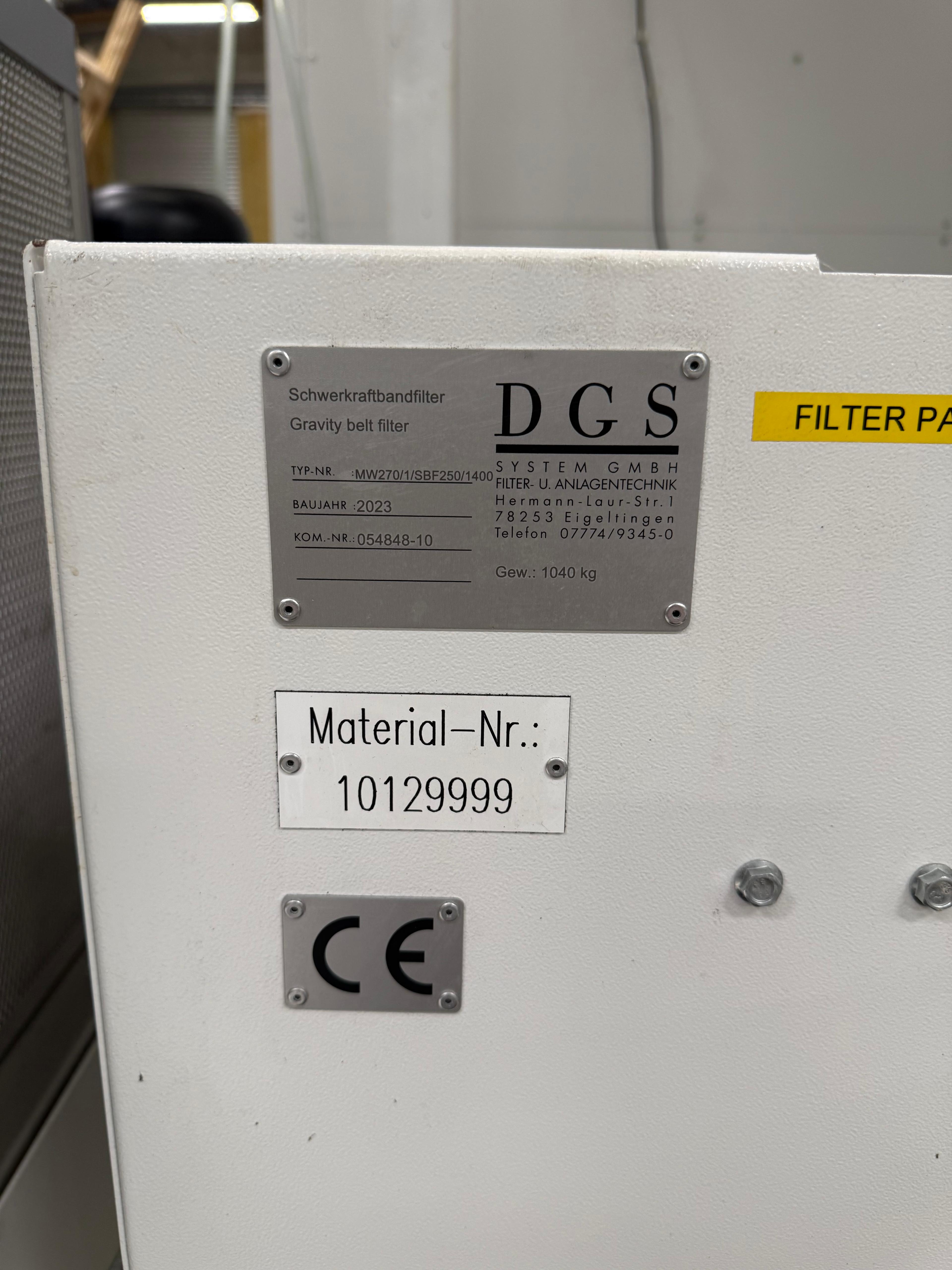

� � Installation & Integration Requires stable, vibration-free foundation Standard compressed air supply (5–6 bar) Network-ready for data exchange and DNC workflows Designed for integration with coolant systems and filtration units

� � Why Choose the Planomat XT? This machine is ideal for manufacturers looking to: Achieve micron-level accuracy and superior surface finishes Handle large or heavy workpieces with ease Combine roughing and finishing in a single setup Improve process reliability in high-value component production

� �️ Typical

Applications Tool & die manufacturing Aerospace component finishing Precision engineering and subcontract grinding Automotive and bearing components
