CITIZEN Cincom M432-V

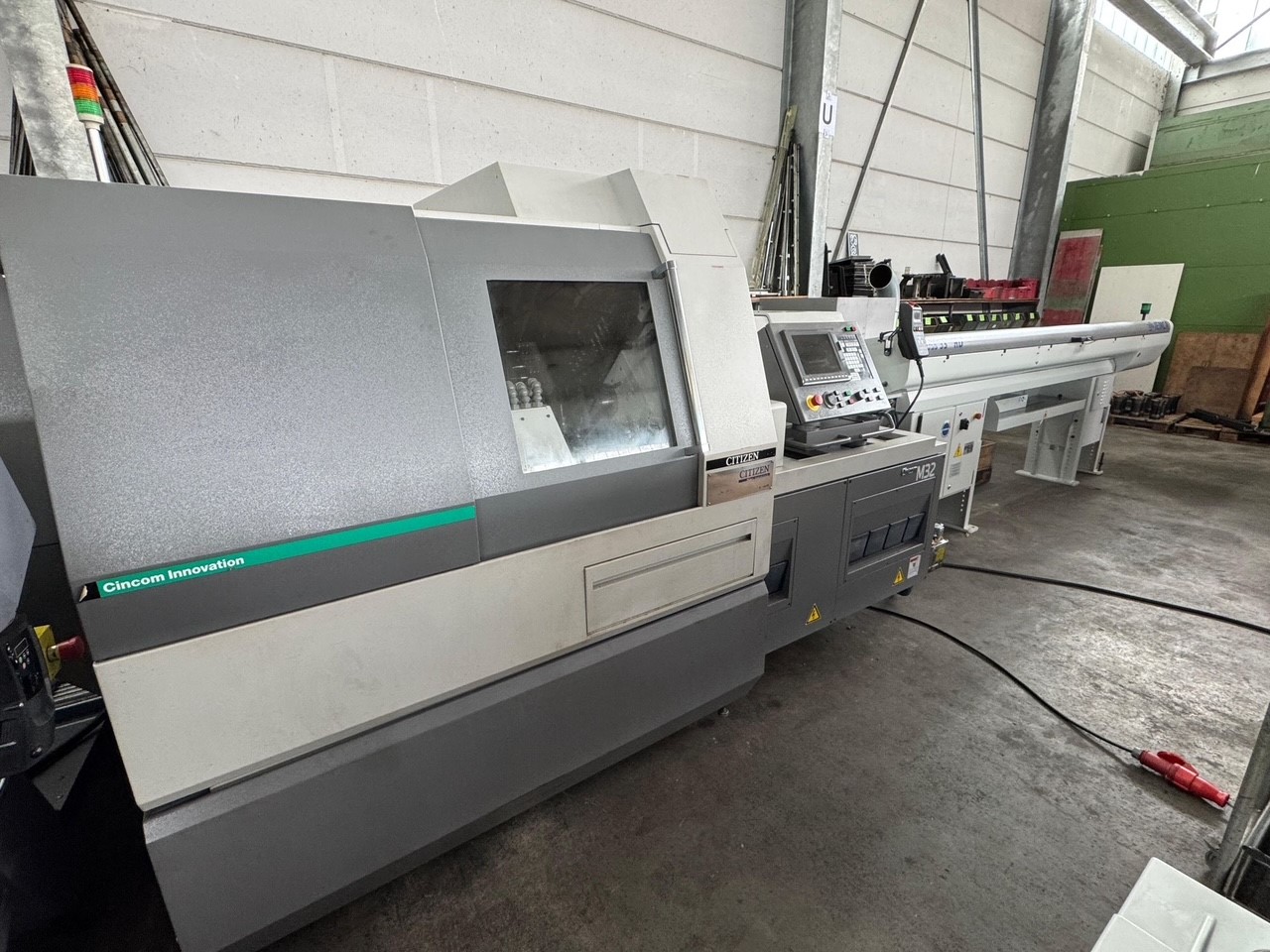

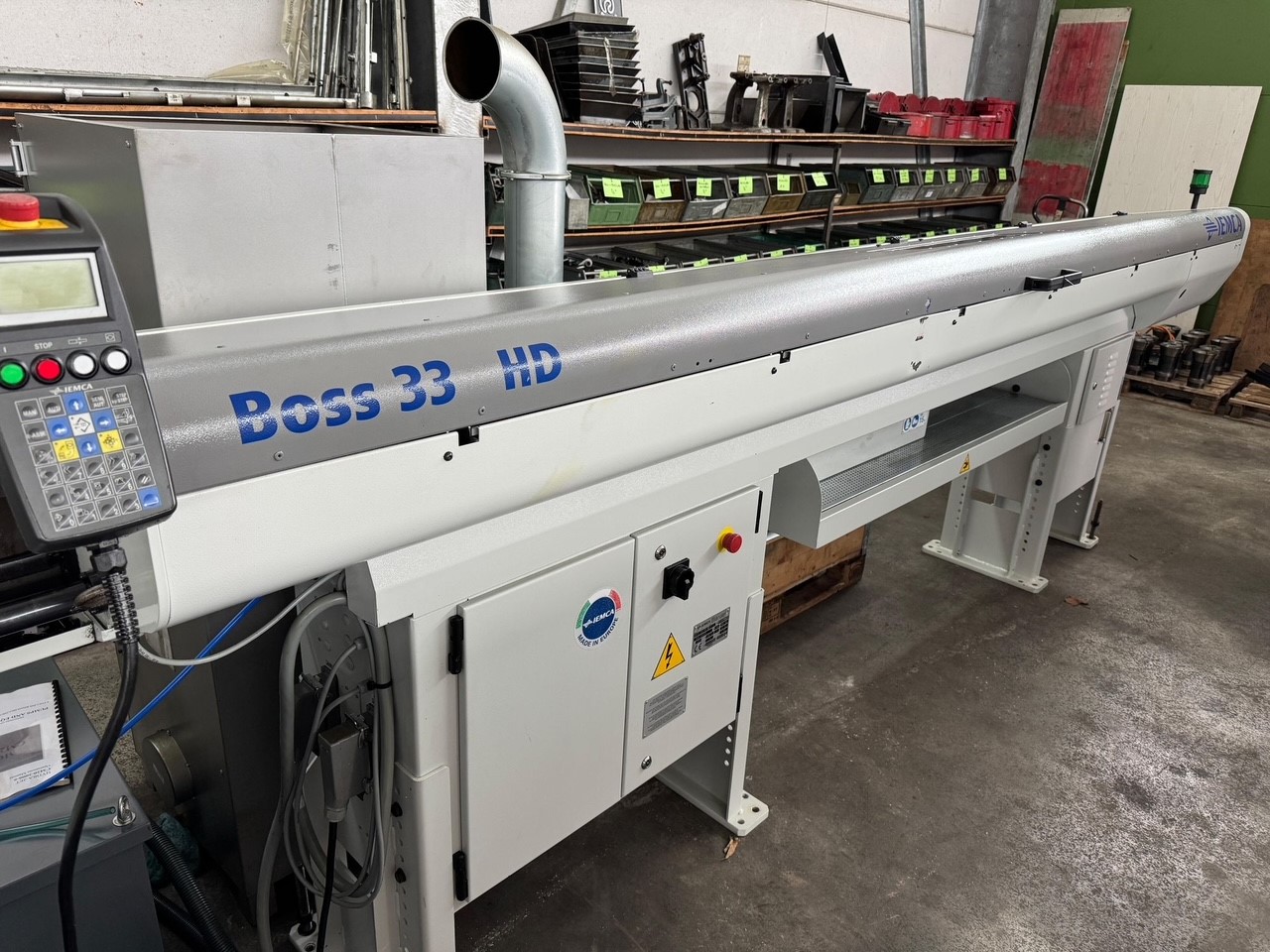

CITIZEN Cincom M432-V (Note - This Non B Axis Model) YOM - 2014 Iemca Boss 338-32 Absolent Mist Control Extraction LNS MH500 Swarf Conveyor Selection of Driven Tooling UK Specifications - EU Stock. Target Price £67,000.00 Plus VAT The Citizen Cincom M432-VIII is a state-of-the-art Swiss-type CNC automatic lathe, renowned for its precision and versatility in machining complex components. As part of Citizen's M32 series, it is designed to handle bar stock up to 32 mm in diameter, with an optional upgrade to 38 mm. Marucit

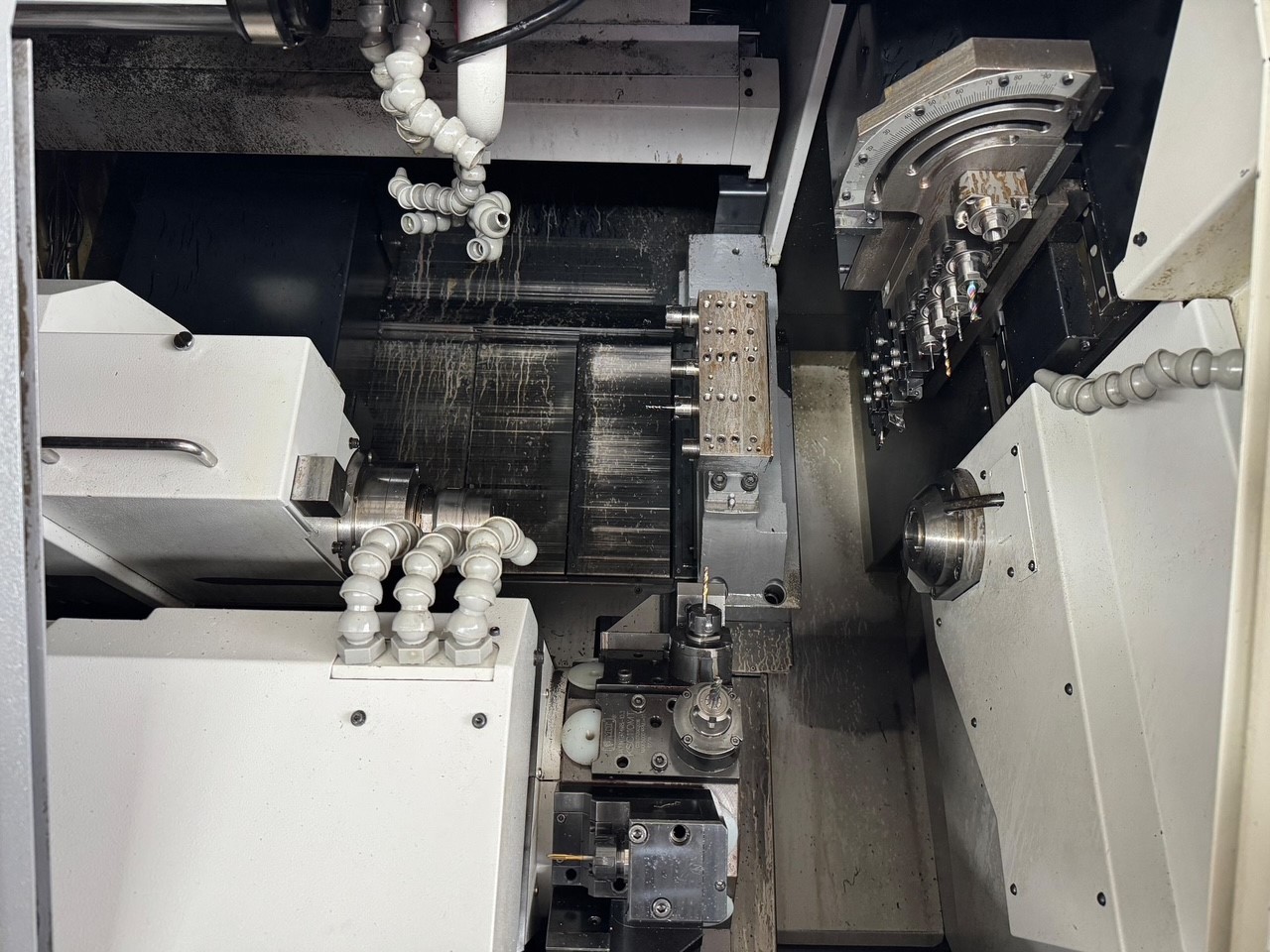

Key Features : 15 Programmable Axes: The M432-VIII boasts 15 programmable axes, including a 10-position turret equipped with a Y-axis. This configuration enables sophisticated and highly productive machining operations. Citizen & Miyano CNC Distributors Single Drive Turret Mechanism: Utilizing a single drive mechanism, only the selected rotary tool rotates during operation. This design minimizes heat generation, vibration, and power loss, resulting in enhanced machining accuracy and extended tool life. Marucit B-Axis Control: The machine features a programmable B-axis with four front and four back tool positions off the gang slide, facilitating true 5-axis machining.

This capability allows for complex contouring and the machining of angled features without the need for additional setups. Citizen & Miyano CNC Distributors Enhanced Back Tool Post: Equipped with a Y3 axis on the back-working tool block, the M432-VIII can accommodate up to three tiers of tooling. This design supports simultaneous machining with up to three tools on both the main and back

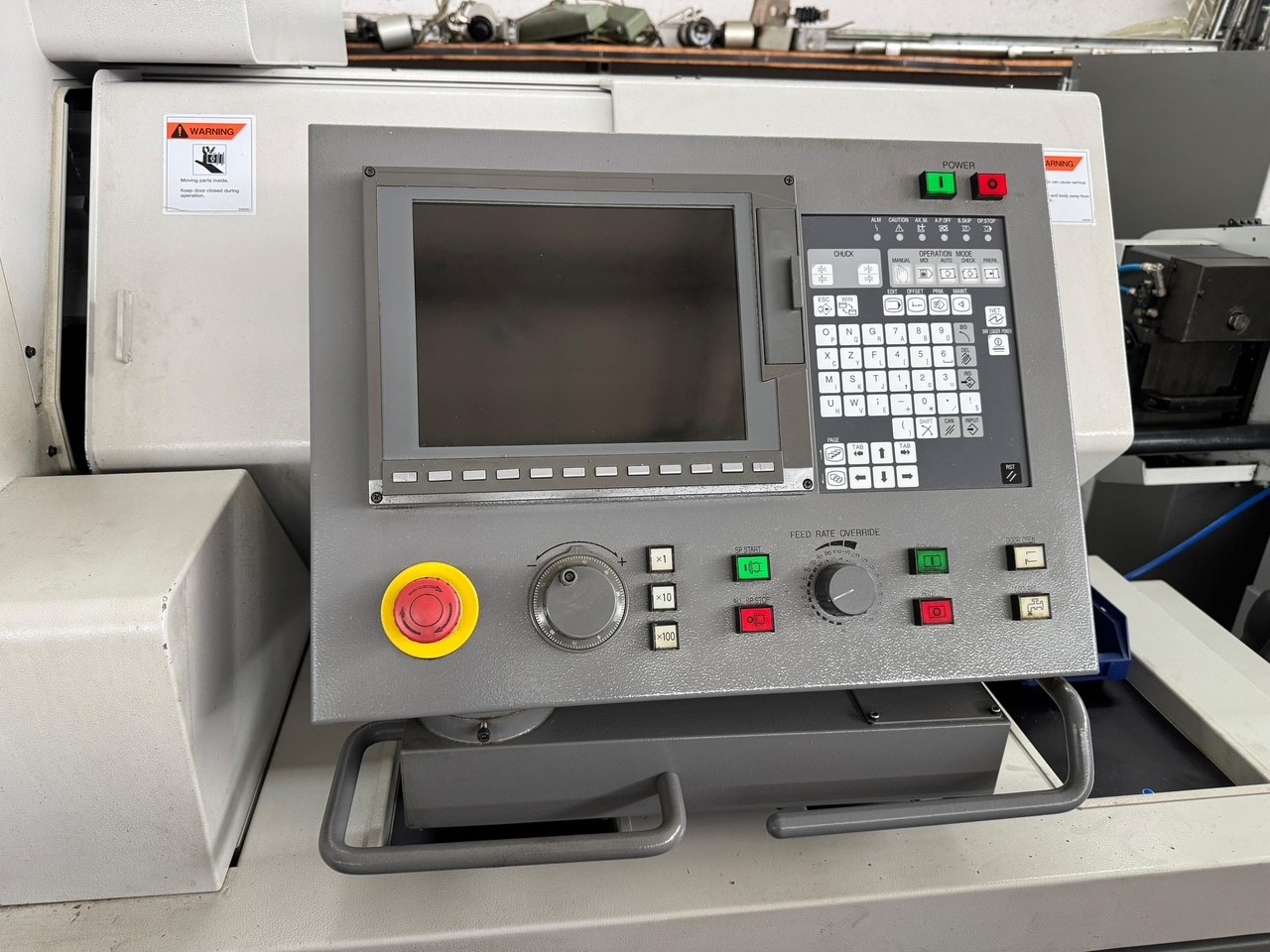

spindle s, significantly improving productivity. Citizen & Miyano CNC Distributors Advanced Control System: The machine is equipped with the Mitsubishi M850W control unit, featuring a new touchscreen Human-Machine Interface (HMI) operating panel. This system offers faster processing speeds and reduced non-cutting times compared to previous models. Citizen & Miyano CNC Distributors

Technical Specification s: Maximum Machining Diameter: 32 mm (optional upgrade to 38 mm) Maximum Machining Length: 320 mm per chucking Main

Spindle Speed: 200 to 8,000 rpm Rotary Tool

Spindle Speed: 200 to 9,000 rpm (gang); 200 to 6,000 rpm (turret) Back

Spindle Speed: 200 to 8,000 rpm Rapid Traverse Rate: 32 m/min (X1, Y1, Z1, Z2, X3, Z3 axes); 18 m/min (X2 axis); 12 m/min (Y2 axis); 50 rpm (B1 axis) Machine Dimensions: 2,860 mm (W) x 1,465 mm (D) x 1,900 mm (H) Weight: Approximately 4,300 kg The Citizen Cincom M432-VIII's combination of advanced features and robust construction makes it an ideal choice for manufacturers seeking high precision and efficiency in complex part production.
