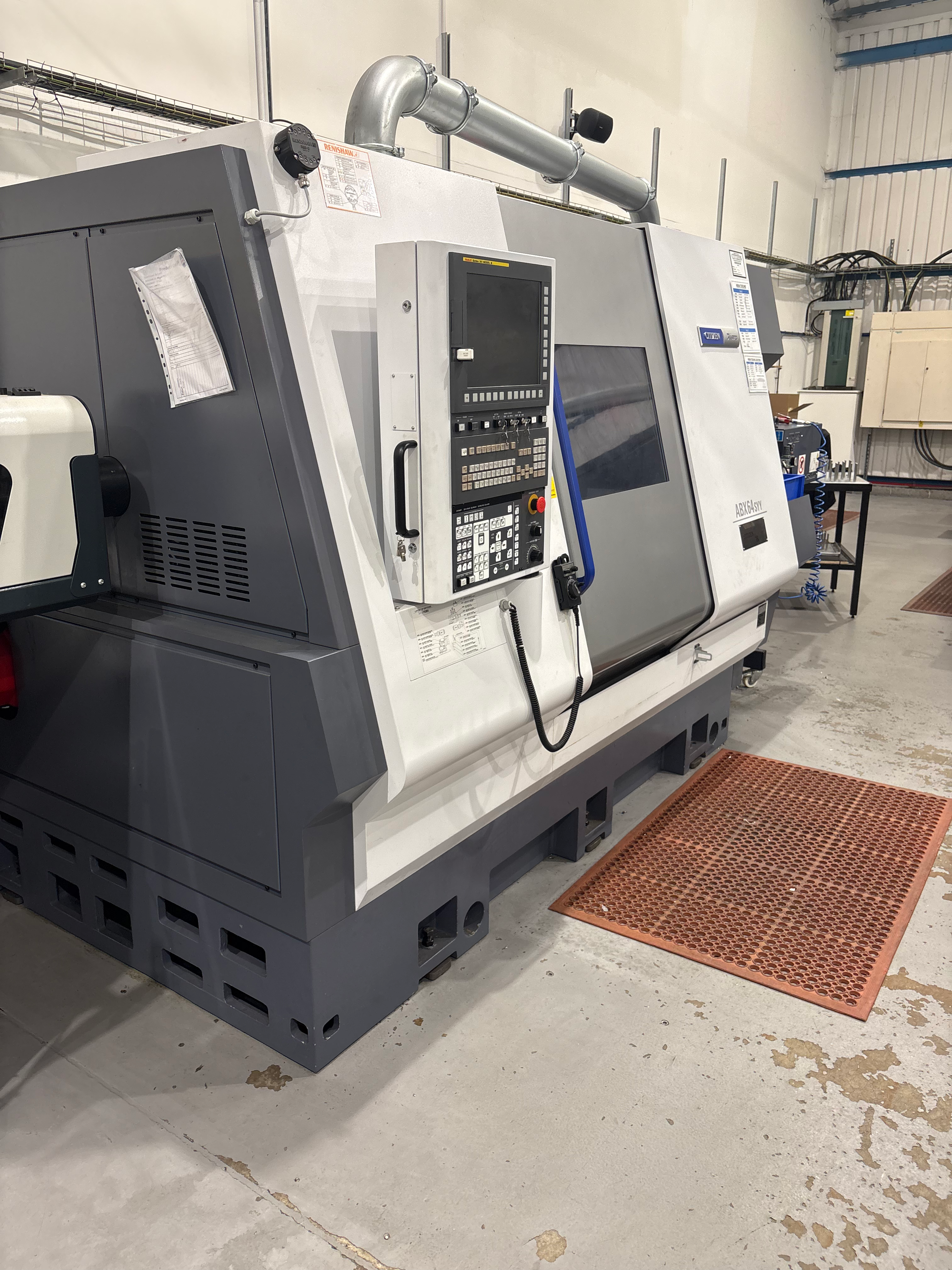

2021 CITIZEN Miyano ABX 64 SYY2 (64mm Twin Spindle/Twin Y Axis)

Citizen Miyano ABX-64SYY2 Built 2022/Installed 2023 - Pristine, High End Multi Axis Lathe. Only 1,700 Hours. 12 Ton, 65mm, Twin

Spindle , Twin Turret, Twin Y Axis with 24 Stations (all driven - 40nm). Watch - https://youtu.be/QYFIg9QM3uk?si=txIjXoqaZSQFcoZm 9 Axis CNC Turning Centre – Used The Citizen Miyano ABX-64SYY2 is a high-performance fixed head CNC turning centre designed for complex, high-volume production. With twin

spindle s, twin Y-axis turrets and full 9-axis capability, this machine is ideal for manufacturers looking to increase throughput while maintaining exceptional accuracy. Built on Citizen Miyano’s proven platform, the ABX-64SYY2 allows simultaneous machining on both

spindle s, reducing cycle times and maximising

spindle utilisation.

Key Features • 9 Axis CNC Turning Centre • Twin

Spindle s (Main & Sub) • Twin Turrets with Y-Axis (Upper & Lower) • Maximum Bar Capacity: Ø64mm • 6” Power Chuck – Main & Sub

Spindle • High Pressure Coolant System • Renishaw RLP40 Probing • SMW Work Steady • Swarf Conveyor • Parts Catcher & Conveyor • Fully Enclosed, CE Compliant LNS Quick Servo QLS65 Bar Loader

Technical Overview • Main

Spindle Speed: up to 4,000 rpm • Sub

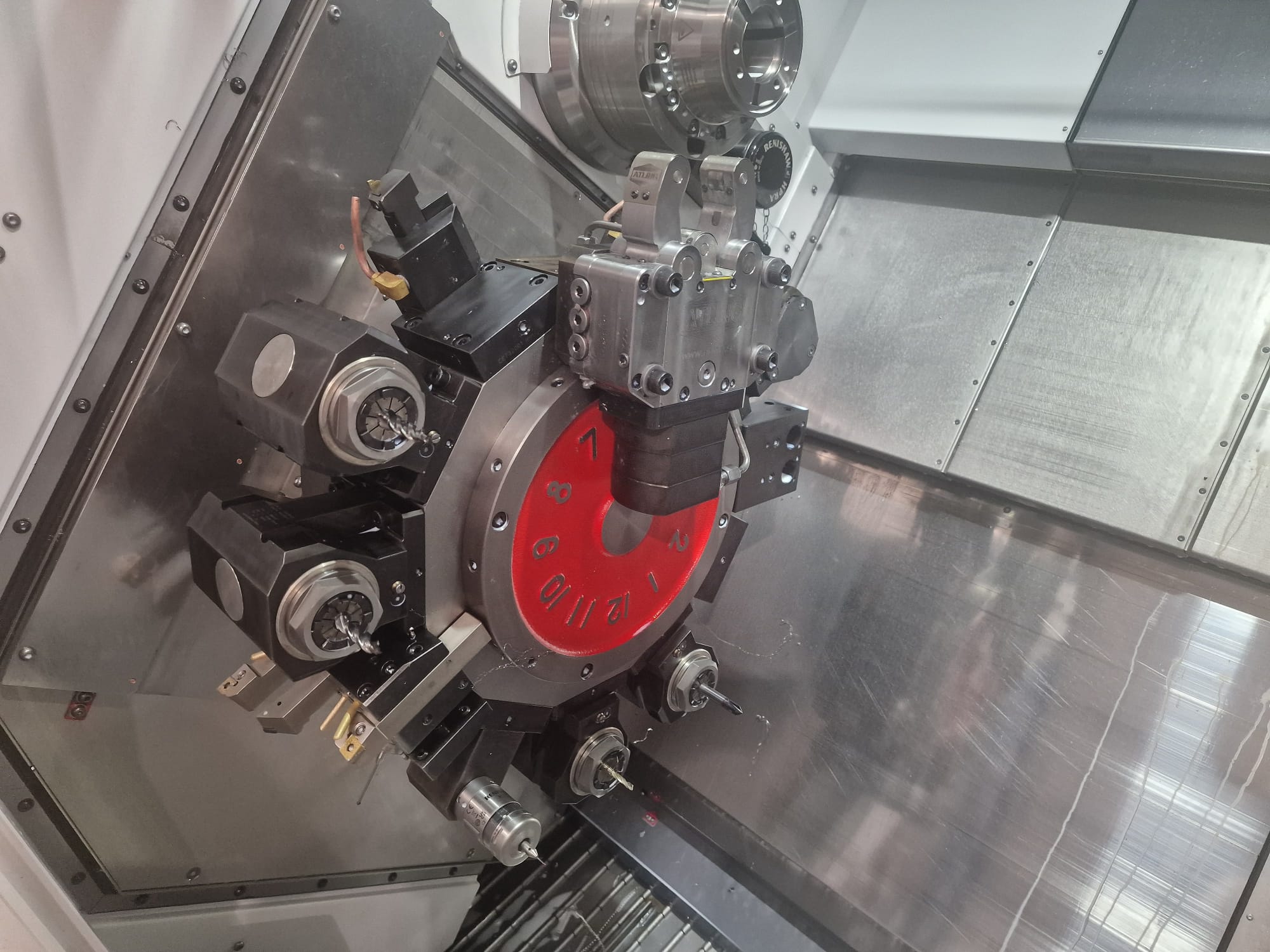

Spindle Speed: up to 5,000 rpm • Standard Turning Length: 125mm • Twin 12-station turrets with live tooling • Compact footprint with high rigidity construction

What’s Included • Machine installation & commissioning (subject to agreement) • Tool setter & probing system • High-pressure coolant & filtration • Full guarding and safety systems

Ideal For • High-mix / high-volume production • Complex multi-operation components • Subcontract machining environments • Automotive, aerospace, medical & precision engineering

Availability

� � UK / Europe

� � Delivery & installation can be arranged at additional cost.

� � Price: £175,000.00 - Finance available on request.

� � Contact us today for full specification, hours, condition report and lead time.
