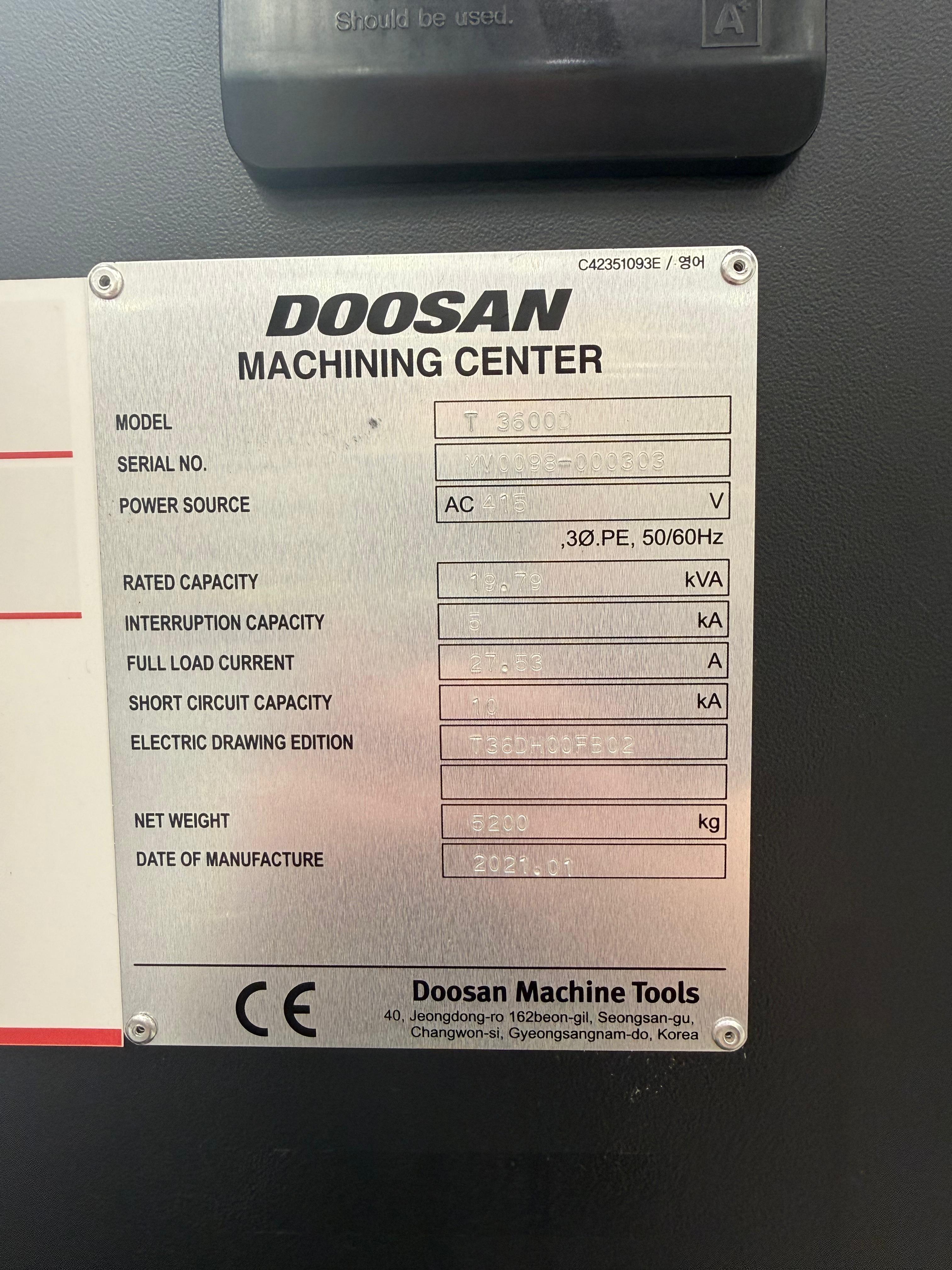

2021 Doosan T3600 VMC

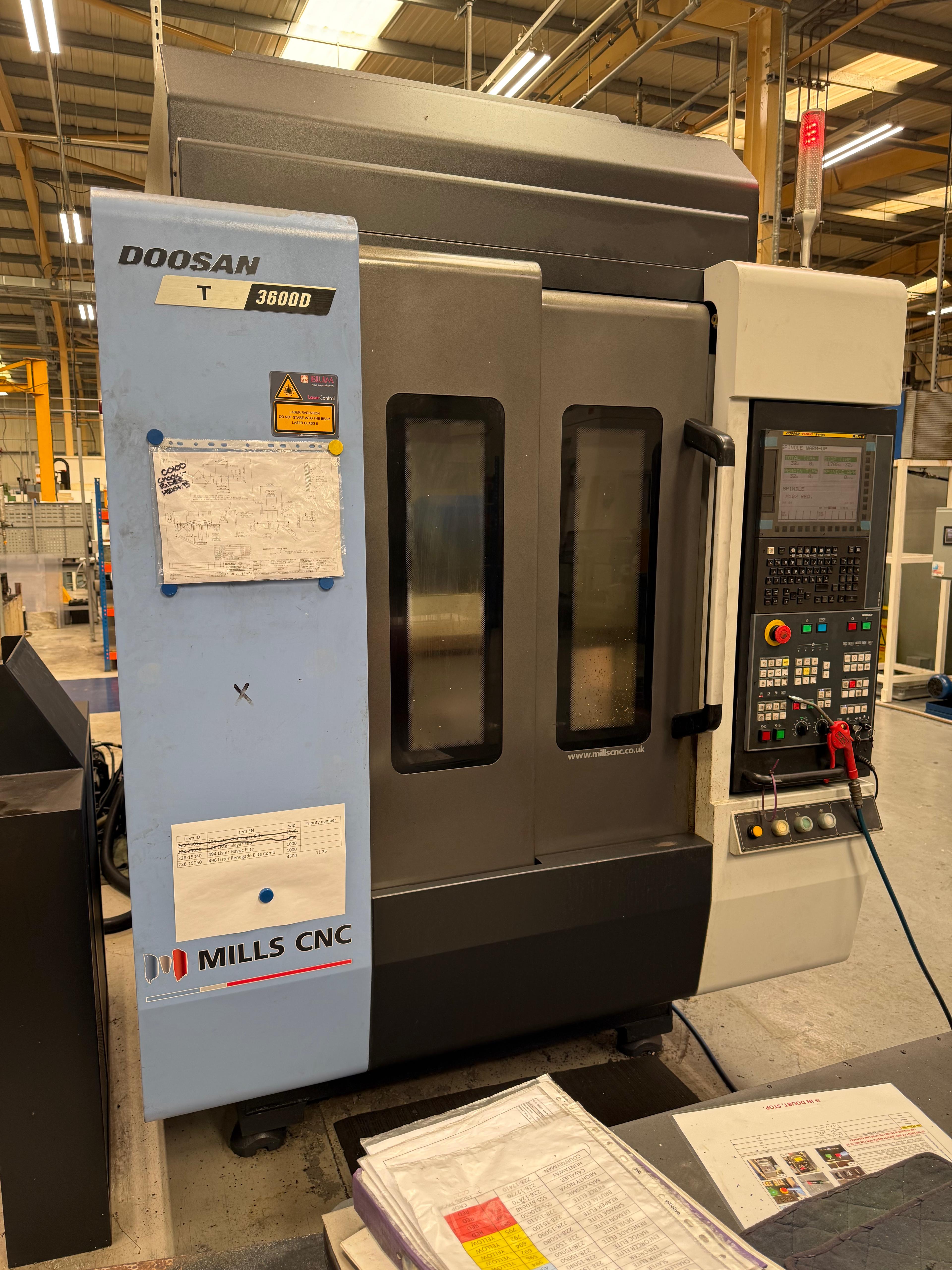

Doosan T3600D Vertical Machining Centre – High-Speed Twin Pallet Productivity The Doosan Machine Tools T3600D is a compact, high-performance vertical machining centre (VMC) designed for manufacturers demanding speed, precision, and reduced cycle times. Featuring a twin-pallet system and fast tool-changing capability, this machine is ideally suited for high-mix, medium-volume production environments.

� � Key

Performance Highlights The T3600D delivers an excellent balance of footprint, speed, and capability: Twin pallet changer with rapid 3-second pallet swap 12,000 rpm BT30

spindle for high-speed machining Fast rapids: up to 48 m/min (X/Y) and 56 m/min (Z) Tool-to-tool change: just 1.7 seconds Compact footprint with large

working envelope This makes it particularly effective for continuous production, minimising downtime between cycles.

� �

Working Envelope & Capacity X Axis: 520 mm Y Axis: 360 mm Z Axis: 350 mm Table Size: 2 × 650 × 375 mm pallets Max Load: 200 kg per pallet The dual-pallet setup allows simultaneous loading and machining, significantly improving

spindle utilisation.

⚙ ️

Spindle & Drive System

Spindle Speed: 12,000 rpm

Spindle Taper: BT30 Motor Power: 5.5 / 3.7 kW Max Torque: 82.7 Nm The BT30 platform ensures high-speed precision, ideal for aluminium, steels, and general subcontract work.

� �

Tooling & Automation 21-Station Servo ATC Max Tool Length: 200 mm Max Tool Weight: 2.8 kg Tool Change (chip-to-chip): 2.5 sec Combined with tool life management and load monitoring, the T3600D supports lights-out and unattended machining strategies.

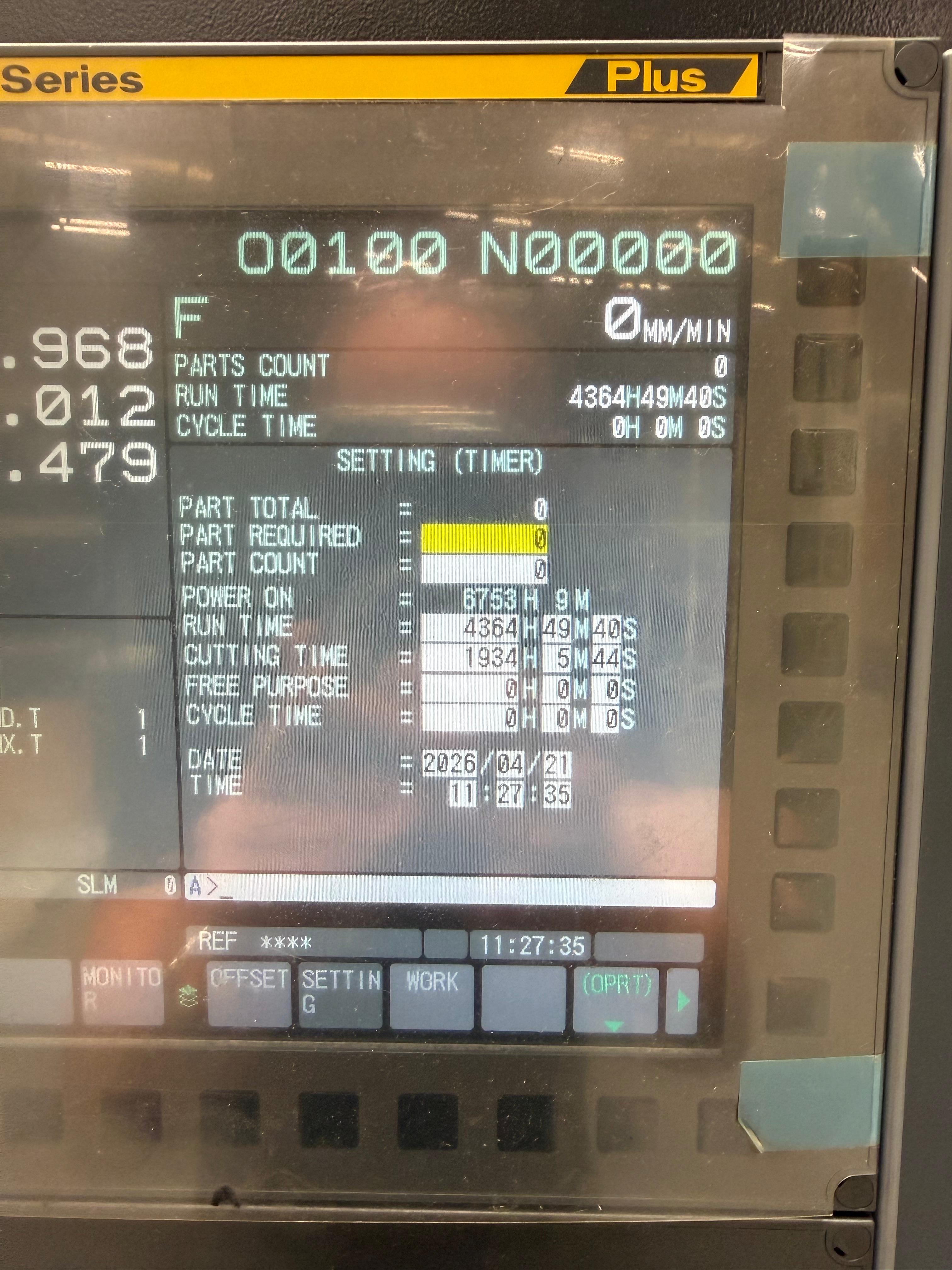

� � CNC Control System Equipped with a Doosan-Fanuc control, offering: 10.4” colour display Custom Macro B capability Rigid tapping AICC II (200-block lookahead) for smooth high-speed machining Ethernet connectivity for DNC operation Tool path graphics and load monitoring This ensures user-friendly programming with advanced functionality for complex parts.

� � Standard Equipment Fully enclosed guarding Through-

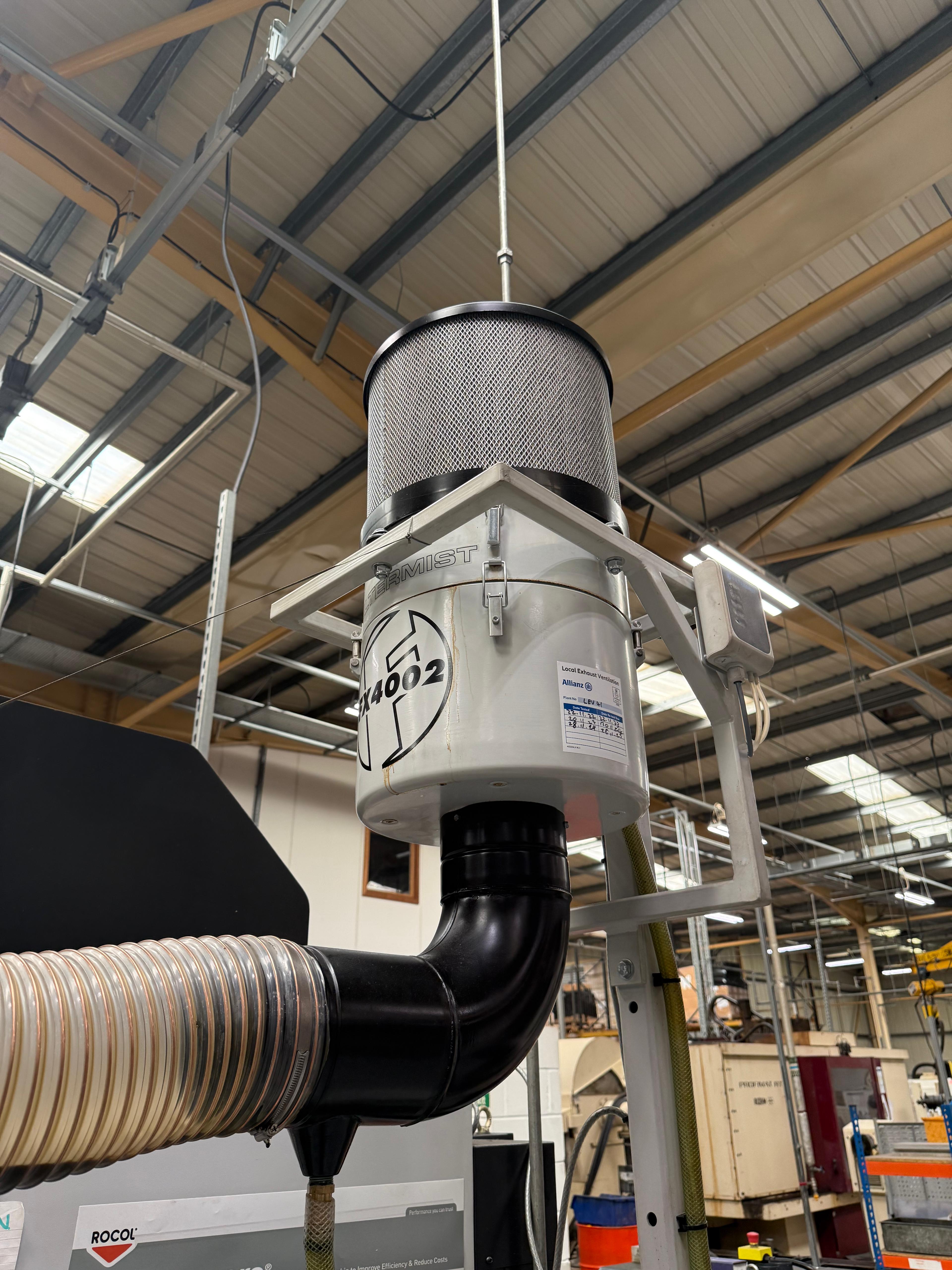

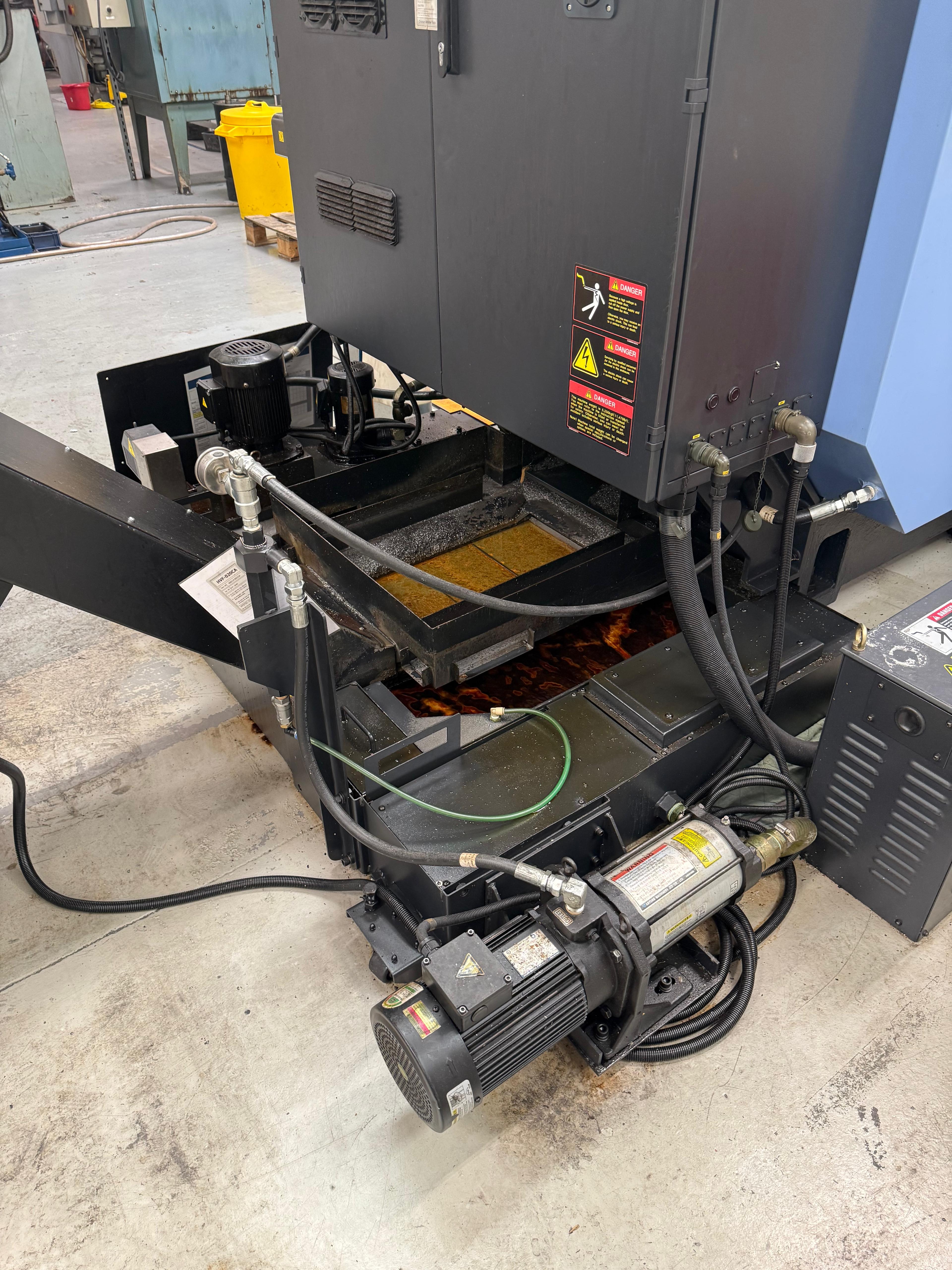

spindle coolant (20 bar) Swarf conveyor & bin Oil mist extraction system

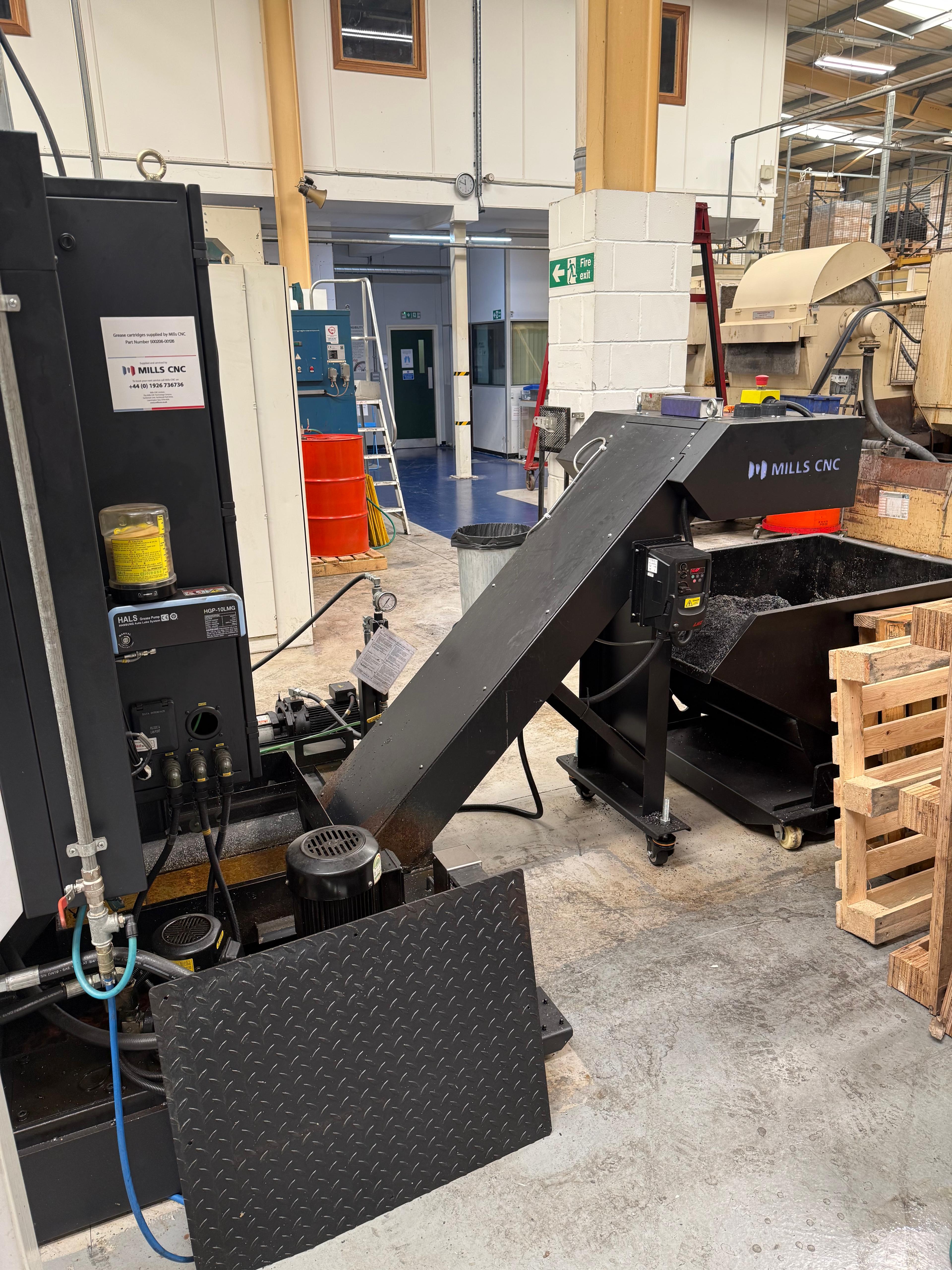

Spindle cooling system Automatic lubrication Tool load monitoring 3-colour status light Everything required for immediate production integration is included.

� �

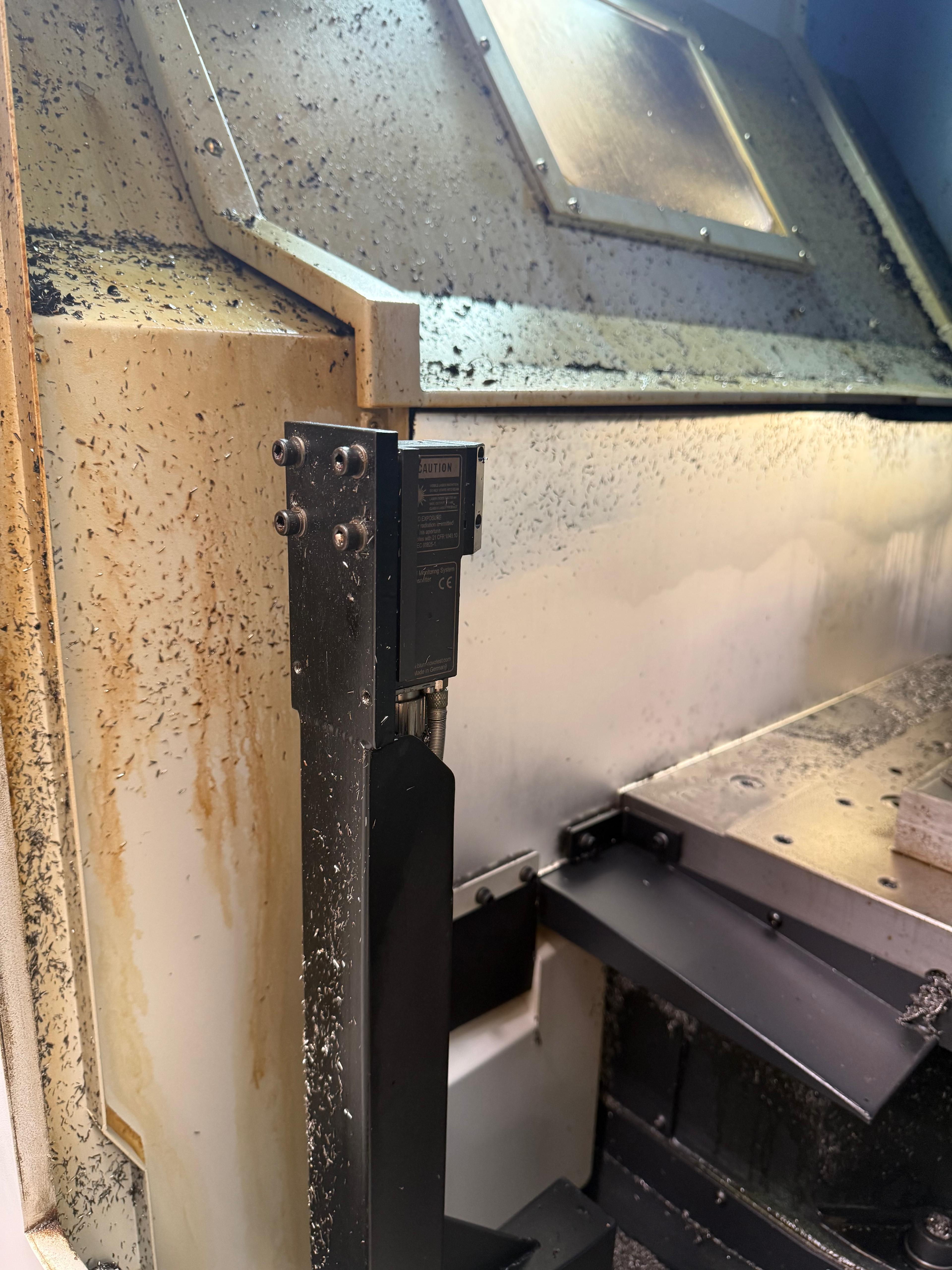

Additional Options Available Renishaw tool setting (NC4) Renishaw OMP60

spindle probing These options enhance process control, accuracy, and setup efficiency.

� �️

Ideal Applications The Doosan T3600D is particularly suited for: Precision subcontract machining Automotive components Aerospace small parts Medical components High-volume aluminium machining

� � Why Choose the Doosan T3600D? This machine stands out for manufacturers looking to: Increase throughput without increasing floor space Reduce non-cutting time via pallet automation Maintain high accuracy with reliable Fanuc control Achieve rapid ROI through productivity gains
