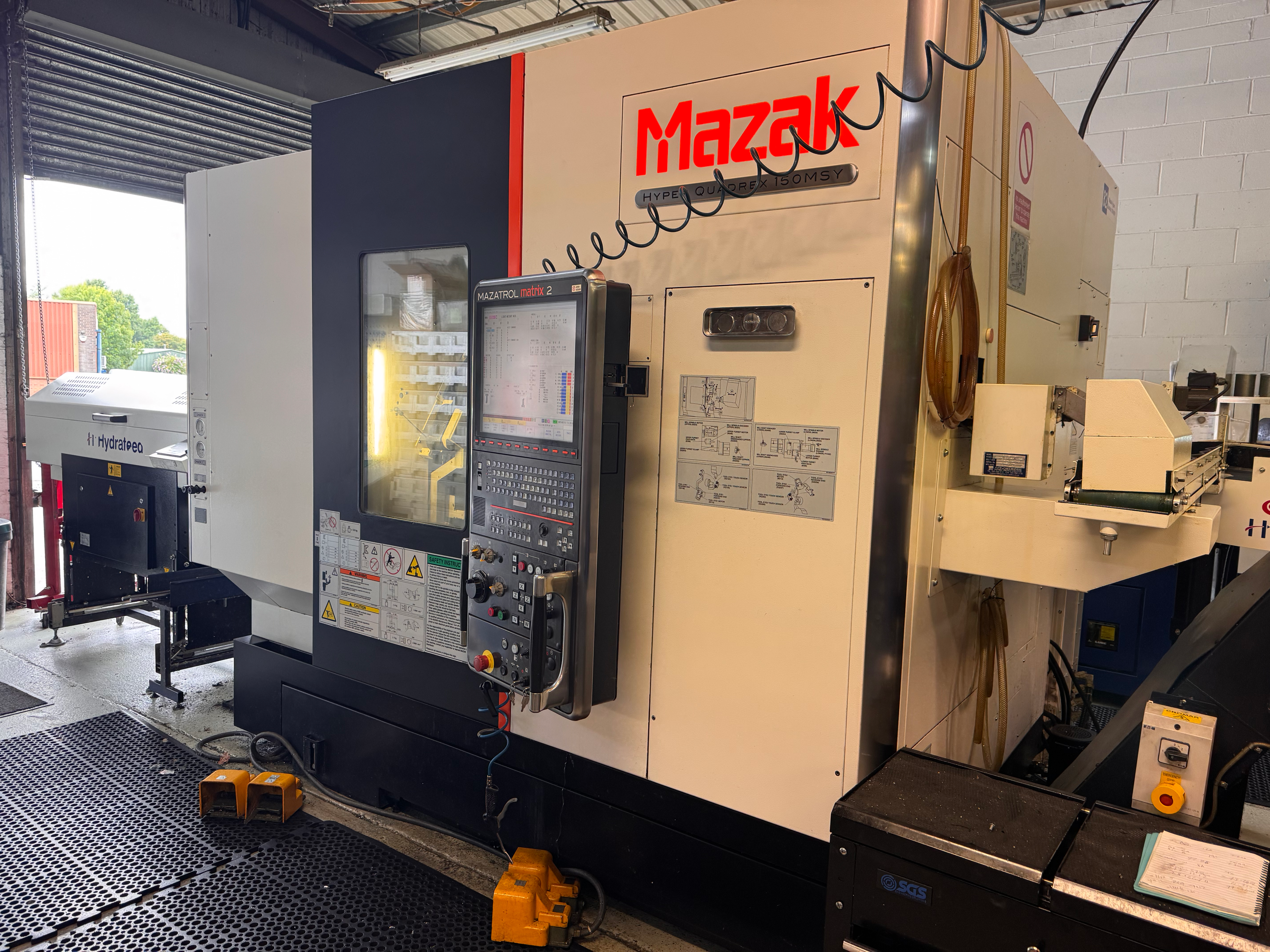

2014 Mazak Hyper Quadrex 150 MSY Multi-Axis CNC Lathe.

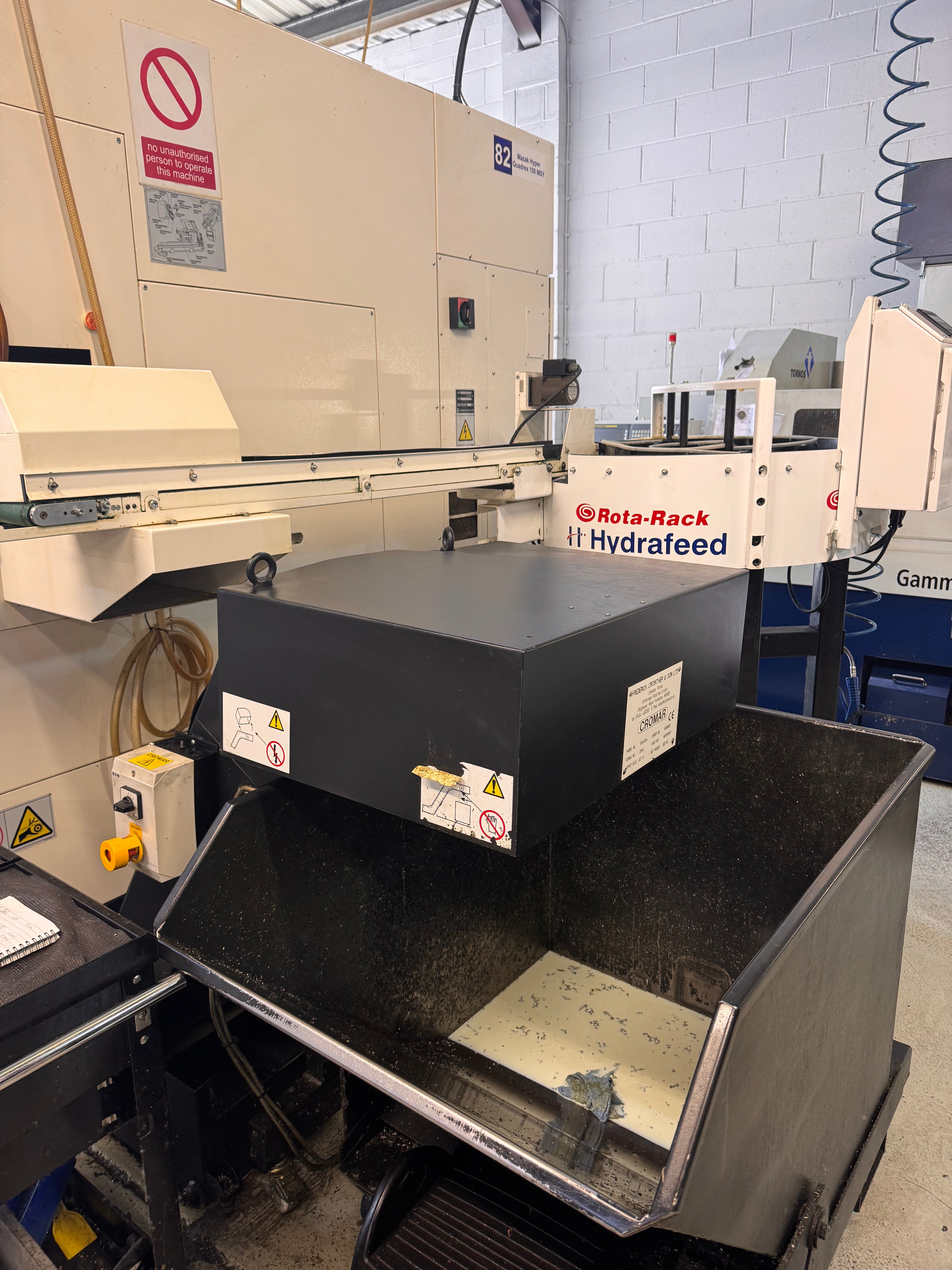

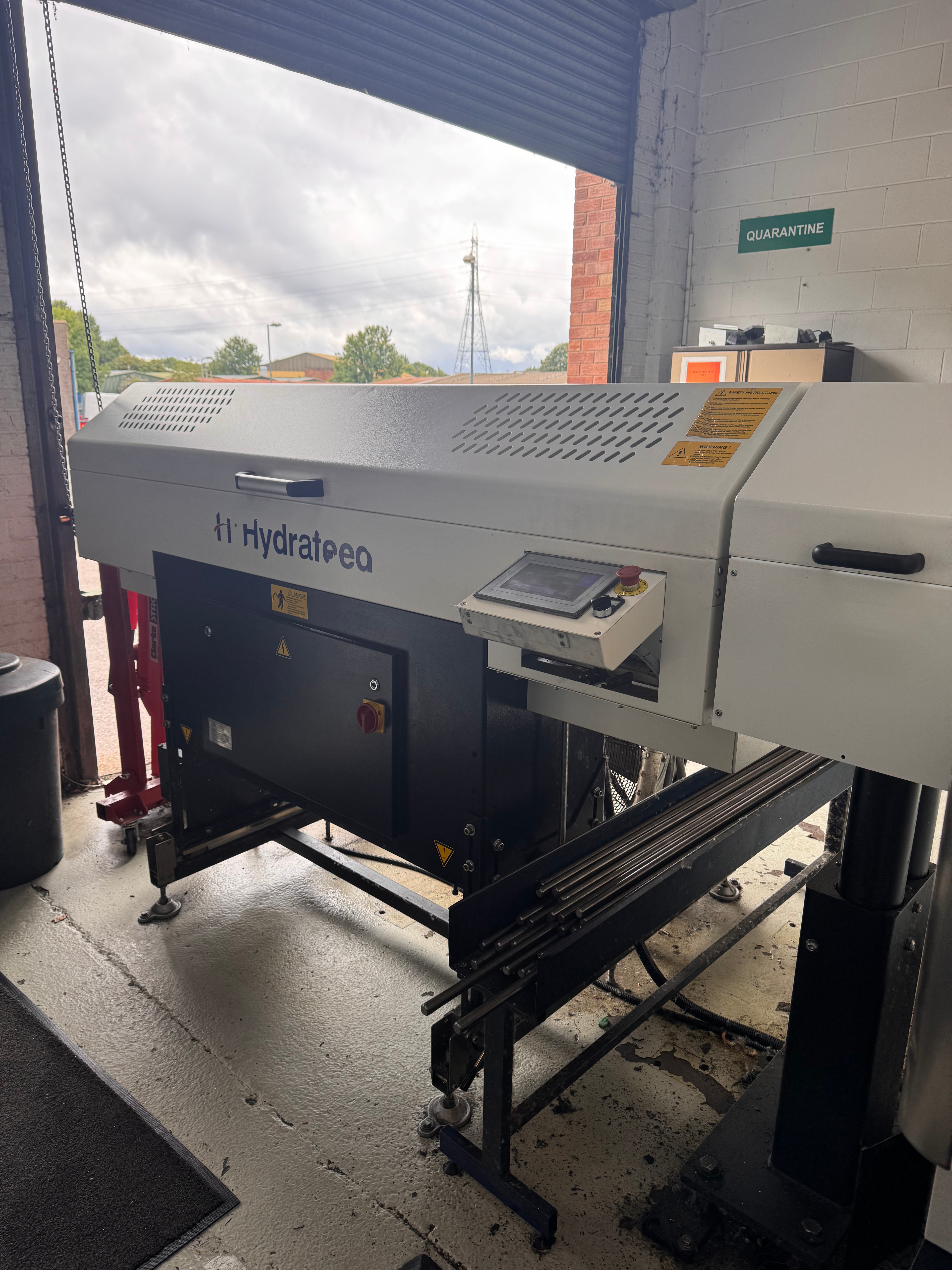

Used 2014 Mazak Hyper Quadrex 150 MSY CNC Lathe for Sale – High-Speed Multi-Axis Turning Center. £70,000 (Finance Options). Fantastic opportunity to own this very high specification used CNC Mazak HQR 150 MSY which comes with Hydrafeed Multifeed MX1B 1. 5m bar loader, Swarf Conveyor, Driven Tooling, Static Tool Holders, High Pressure Coolant (5 bar X2), Twin 12 Station turret both with Y axis, Hainbuch work holding. Cutting Hours - 45480 - Full Machine Specifications available on request - Machine is under power and can be viewed running - Midlands area. Buyer to arrange decommissioning & Collection - No Loading Facilities.

Looking for a powerful, precision-built multi-tasking lathe with milling, Y-axis, and dual-

spindle capability? This Used 2014 Mazak Hyper Quadrex 150 MSY is a high-performance multi-axis CNC lathe designed for complex, high-volume part production. Built by Mazak, a global leader in CNC technology, this turning center offers superior speed, flexibility, and accuracy — perfect for demanding

applications in the aerospace, medical, defense, and automotive industries.

� �

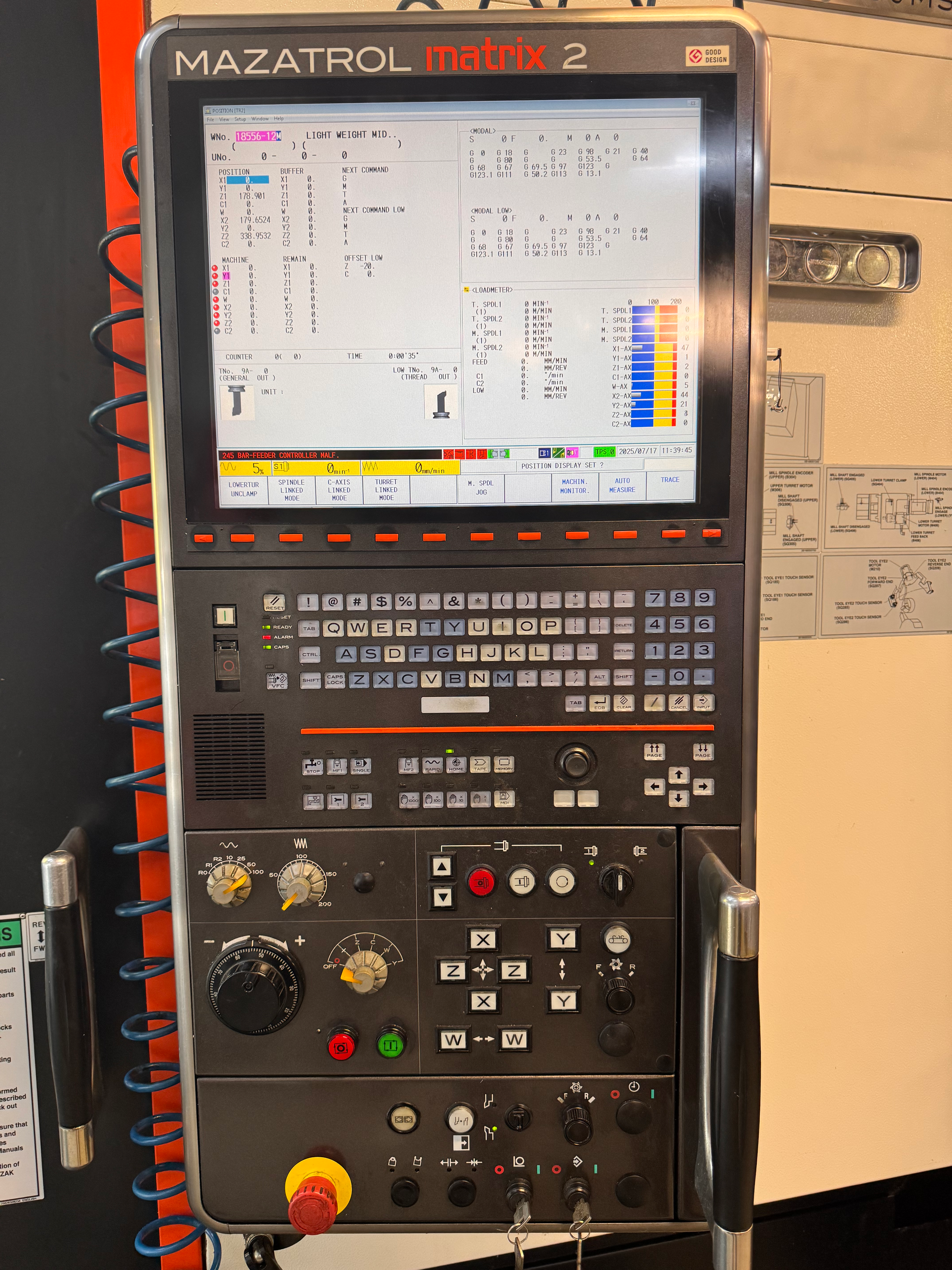

Key Specifications – Mazak Hyper Quadrex 150 MSY (2014) Model: Hyper Quadrex 150 MSY Year: 2014 Control: Mazak Matrix 2 Main

Spindle : 6,000 RPM, 20 HP, 6” Chuck Sub-

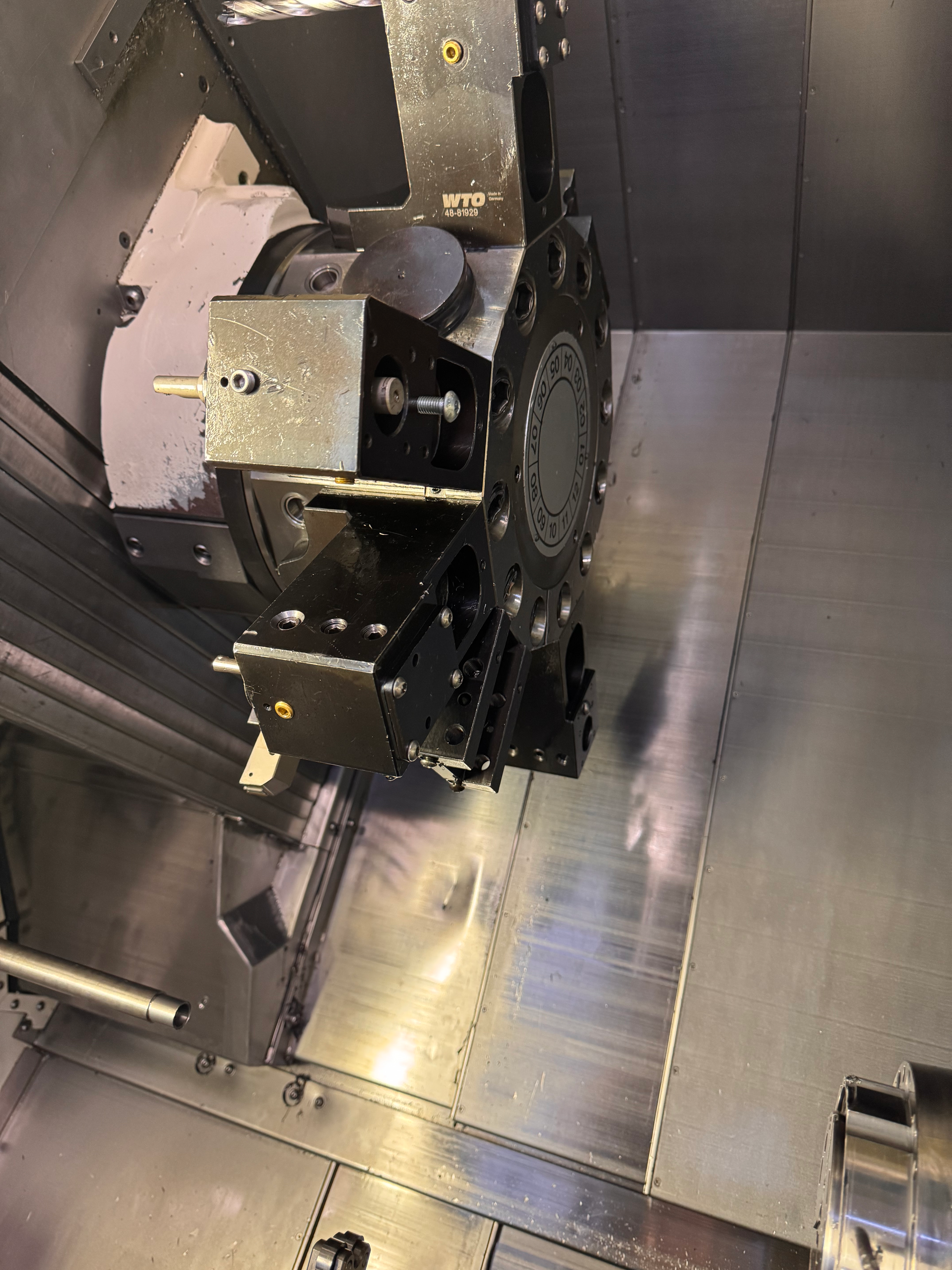

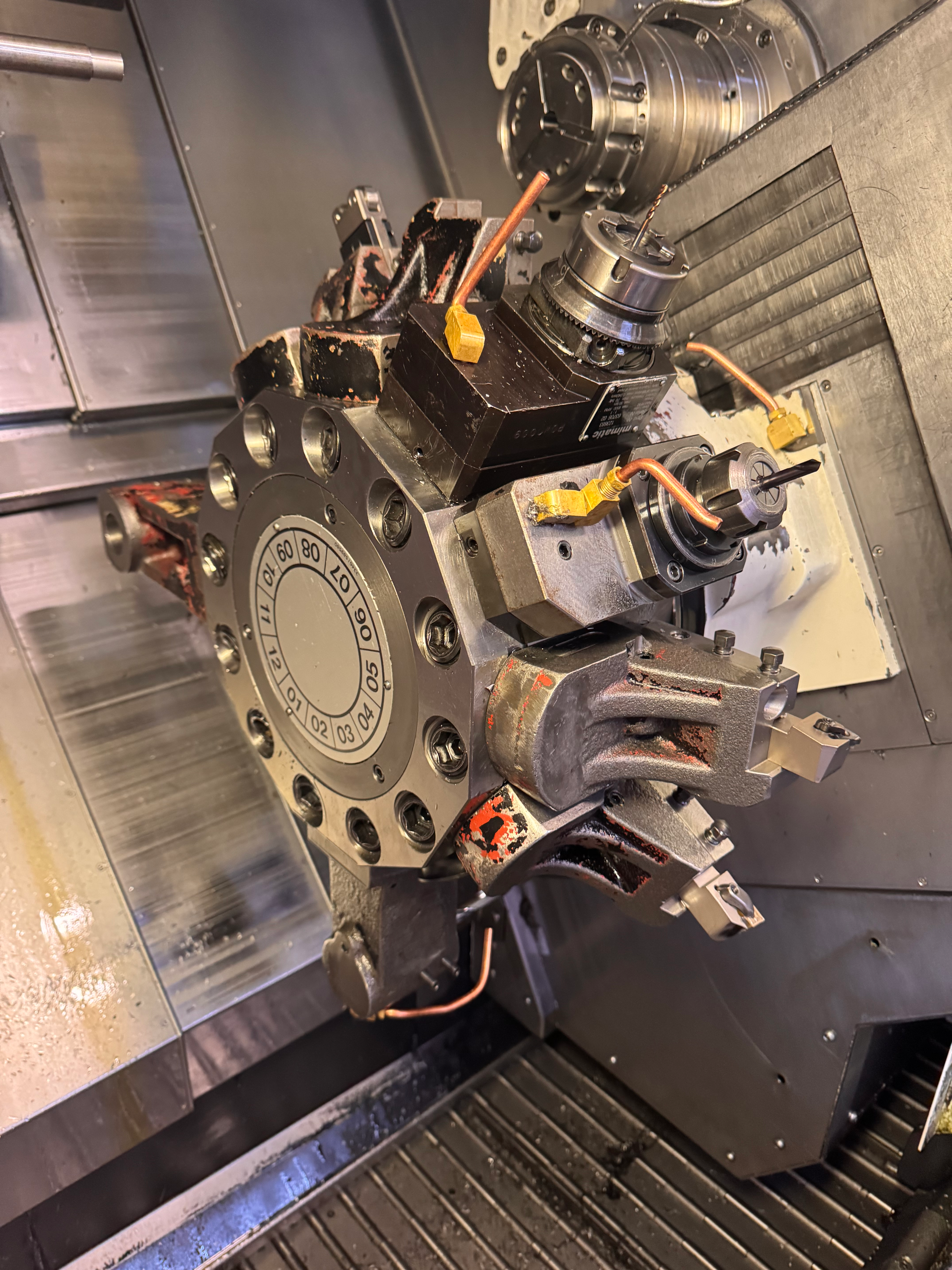

Spindle : 6,000 RPM, full C-axis, 5” Chuck Live Tooling: Yes – 6,000 RPM live tooling turret Y-Axis Travel: +/- 2” (50mm) Turret: 12-position, driven tools supported Bar Capacity: 65mm (76mm

spindle bore). Max Turning Diameter: ~8” Max Turning Length: ~20” Tailstock: N/A (sub-

spindle pickup) Machine Weight: Approx. 12,000 lbs Footprint: Compact for class

✅ Why Buy the Mazak Hyper Quadrex 150 MSY? The Mazak Hyper Quadrex series is engineered for multi-tasking efficiency — combining turning, milling, Y-axis offsetting, and full sub-

spindle machining in a single setup. The 150 MSY model is particularly well-suited for precision components that require complex geometry, tight tolerances, and front/back simultaneous operations. Key Benefits: Full C/Y Axis Machining – mill, drill, and tap off-center features Dual

Spindle – complete front and back operations in one cycle High-Speed Live Tooling – reduce setups and increase part complexity Mazak Reliability – industry-leading performance and serviceability Perfect for lights-out production with automation options

� �

Ideal Applications Aerospace and defense components Medical device parts Complex hydraulic and pneumatic fittings Automotive & motorsport bushings, shafts, housings Job shop precision work requiring multiple operations

� �

Machine Condition & Availability This 2014 Mazak Hyper Quadrex 150 MSY is in excellent used condition, from a clean, low-hour environment. Regularly maintained and currently under power, it’s ready for demo and inspection. Service history available Full tooling and manuals included Delivery and installation assistance available Bar feeder, chip conveyor, and mist collector optional

� � Pricing & Financing This machine is priced to sell – a fraction of the cost of new while delivering the same cutting-edge capabilities. Financing available for qualified buyers. Tooling and automation packages also available upon request.

� � Contact Us Today Don’t miss this opportunity to add a Mazak Hyper Quadrex 150 MSY to your shop floor. It’s the ideal CNC lathe for complex part machining with minimal setups and maximum throughput.
