2012 Datron M8 Milling Machine

2012 DATRON M8 Cube High-Speed CNC Milling Machine (£43,000 Plus VAT)

High-Speed Precision Machining for Aluminium, Plastics and Composites

The 2012 DATRON M8 Cube is a high-performance German-engineered CNC milling machine designed for high-speed machining (HSC) of aluminium, plastics, composites and other non-ferrous materials. Combining a large machining envelope with a compact footprint, the M8 Cube delivers exceptional productivity, surface finish quality, and accuracy for both prototype and production environments.

DATRON machines are widely known for their high-speed spindles, rigid polymer-concrete construction, and efficient machining strategies, making the M8 Cube ideal for industries such as aerospace, electronics, automotive, medical and precision engineering.

Key Technical Specifications

Model: DATRON M8 Cube

Year: 2012

Axes: 3-Axis High-Speed CNC Machining Centre

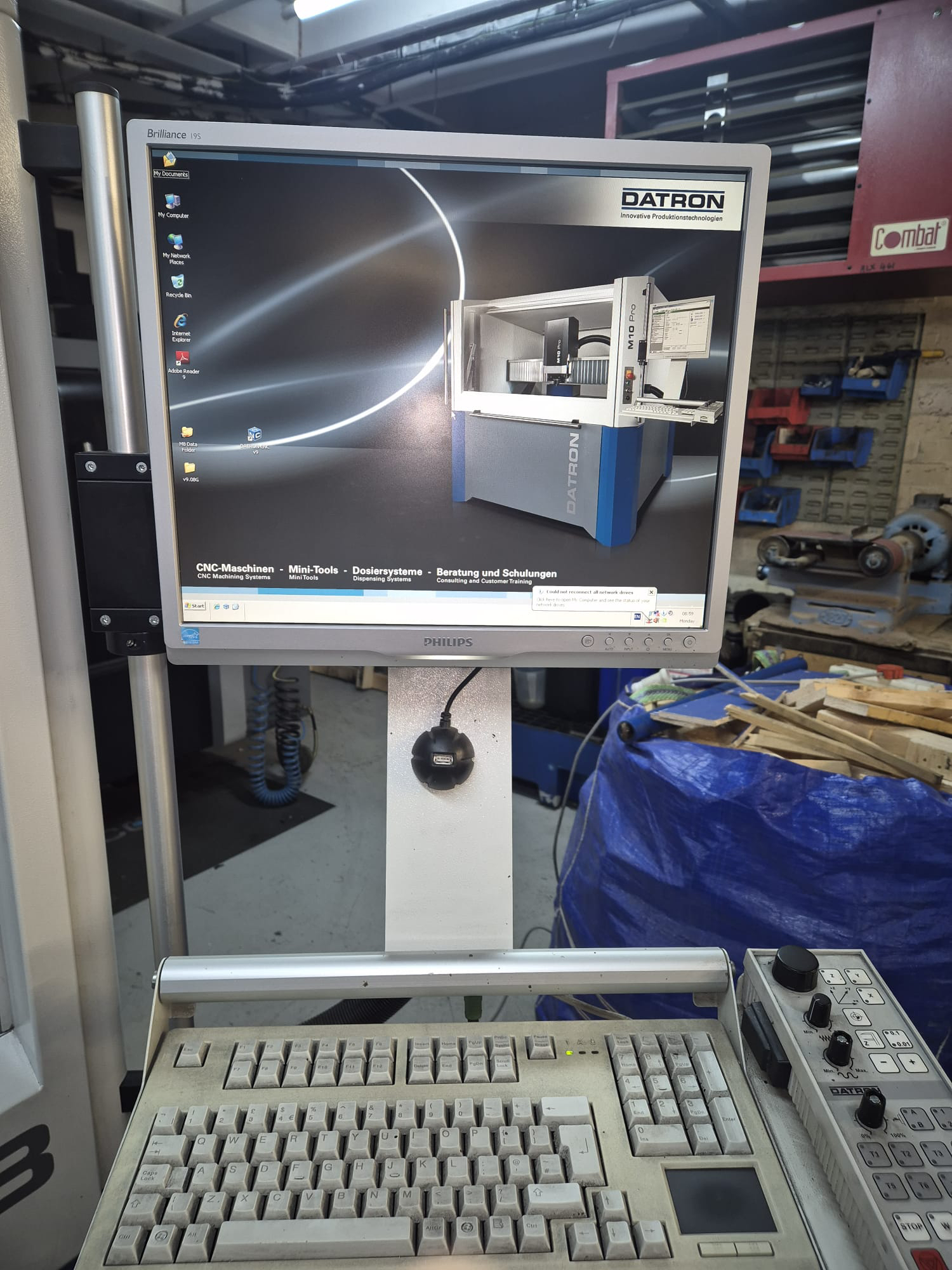

Control System: DATRON CNC Control (Windows-based interface)

Travels

X-Axis: 1,020 mm

Y-Axis: 830 mm

Z-Axis: 245 mm

Spindle

High-Frequency Electrospindle

Speed: Up to 60,000 RPM

Power Range: approx. 0.6 – 4 kW depending on configuration

Feed Rates

Rapid Feed: up to 22 m/min

Tool Changer

Automatic tool changer

Capacity from 5 to 30 tools, with optional high-capacity external magazines up to 143 tools depending on configuration

Machine Dimensions

Footprint: approx. 1,740 × 1,740 mm

Height: approx. 1,950 mm

Weight: approx. 1,300 kg

Machine Design & Performance

The M8 Cube features a rigid gantry construction and precision linear guides combined with digital servo drives and ball screw technology to deliver excellent dynamics and repeatable machining accuracy.

Its polymer concrete machine bed reduces vibration during high-speed machining, enabling superior surface finishes and longer tool life when working with small diameter tools.

The machine is specifically designed for high-speed milling with small tools ranging from approximately 0.1 mm to 20 mm, making it particularly effective for precision components and detailed machining operations.

Typical Applications

The DATRON M8 Cube excels in the machining of:

Aluminium components

Plastic and acrylic parts

Copper and brass components

Composite materials

Engraving and panel machining

Precision prototype work

Small batch production

The large working area also allows nesting multiple parts or machining large plate components in a single setup, improving productivity and reducing cycle times.

Key Advantages

✔ High-speed spindle up to 60,000 RPM

✔ Large machining area with compact machine footprint

✔ Excellent surface finish from rigid, low-vibration design

✔ Efficient machining of aluminium and non-ferrous materials

✔ Flexible tooling options and automatic tool changing

✔ Ideal for prototype work and small-to-medium batch production

Ideal For

Aerospace component manufacturers

Electronics and enclosure machining

Medical device manufacturers

Precision engineering subcontractors

Prototype and R&D machining environments

✅ The 2012 DATRON M8 Cube remains one of the most versatile high-speed CNC milling platforms available for aluminium and non-ferrous machining, combining precision, speed and flexibility in a compact footprint.
