Sold - DMG Mori NLX 1500 | 500

DMG Mori NLX 1500 | 500

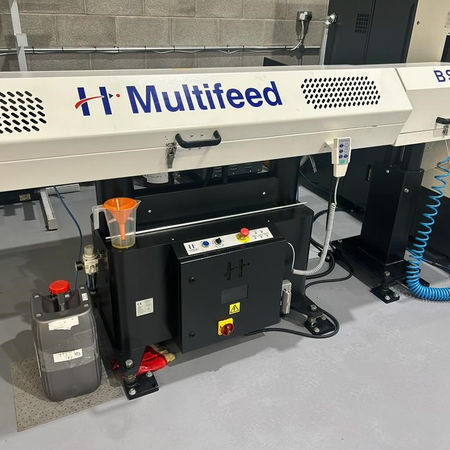

1.5m Hydrafeed MSV Bar Loader

Swarf Conveyor

Selection of Static & Driven Tooling

Target Price £77,000 + VAT

YOM - 2017

The DMG Mori NLX 1500 | 500 is a highly versatile and reliable CNC turning center, designed to meet the demands of modern manufacturing. Engineered for precision, efficiency, and adaptability, this machine is a popular choice for industries requiring high-performance machining solutions. In this article, we will explore the key features, technical specifications, and applications of the DMG Mori NLX 1500 | 500.

Key Features

1. Rigid Construction and Thermal Stability

The NLX 1500 | 500 boasts a robust machine bed made of high-quality cast iron, ensuring excellent vibration damping and rigidity. The machine is also equipped with DMG Mori's unique Thermal Shield technology, which minimizes the effects of temperature fluctuations on machining accuracy.

2. High-Performance Spindle

The machine comes with a high-speed spindle that can reach up to 6,000 RPM, providing ample power for both roughing and finishing operations. The spindle features an integrated motor, which ensures smooth operation and reduces vibration during high-speed machining.

3. Compact Design with Large Work Envelope

Despite its compact footprint, the NLX 1500 | 500 offers a generous turning diameter of up to 366 mm and a turning length of 558 mm. This makes it suitable for machining a wide range of workpieces without sacrificing floor space in the workshop.

4. Advanced Control System

The DMG Mori NLX 1500 | 500 is equipped with the CELOS control system, which provides an intuitive interface for machine operation and programming. CELOS simplifies the process of setting up and managing jobs, ensuring maximum productivity and ease of use.

5. Tool Turret and Live Tooling

The machine is fitted with a 12-station turret, capable of accommodating live tooling. This allows for complex milling, drilling, and tapping operations to be performed in a single setup, reducing cycle times and improving efficiency.

6. Automation Compatibility

The NLX 1500 | 500 is compatible with various automation solutions, such as robotic loading/unloading systems and bar feeders, enabling seamless integration into automated production lines.

Technical Specifications

• Maximum Turning Diameter: 366 mm

• Maximum Turning Length: 558 mm

• Spindle Speed: Up to 6,000 RPM

• Chuck Size: 6 inches

• Tool Stations: 12 stations (live tooling capable)

• Control System: CELOS with MAPPS V

• Main Spindle Motor Power: 15 kW

• Machine Weight: Approximately 4,500 kg

• Footprint Dimensions: 2,795 x 1,600 x 1,900 mm (L x W x H)




Applications

The DMG Mori NLX 1500 | 500 is ideal for a wide range of applications, including but not limited to:

• Automotive Industry: Machining engine components, shafts, and flanges with high precision.

• Aerospace Industry: Producing intricate components from high-performance materials such as titanium and Inconel.

• Medical Industry: Manufacturing surgical instruments and implants requiring micron-level accuracy.

• General Engineering: Handling diverse machining tasks, from prototyping to small- to medium-batch production.

Advantages

The NLX 1500 | 500 delivers exceptional machining accuracy, thanks to its rigid construction and advanced thermal management features.

Enhanced Productivity

With live tooling, a high-speed spindle, and compatibility with automation solutions, the machine is designed to minimize downtime and maximize throughput.

User-Friendly Operation

The CELOS control system simplifies programming and monitoring, making the machine accessible to both novice and experienced operators.

Versatility

The machine's ability to handle a variety of materials and perform multiple operations in a single setup makes it a valuable asset for any machining workshop.

Conclusion

The DMG Mori NLX 1500 | 500 stands out as a versatile, high-precision CNC turning center suitable for a wide range of industrial applications. Its combination of robust construction, advanced features, and user-friendly operation ensures that it delivers consistent performance and value. Whether you’re in the automotive, aerospace, medical, or general engineering sector, the NLX 1500 | 500 is an investment that can elevate your machining capabilities to the next level.
